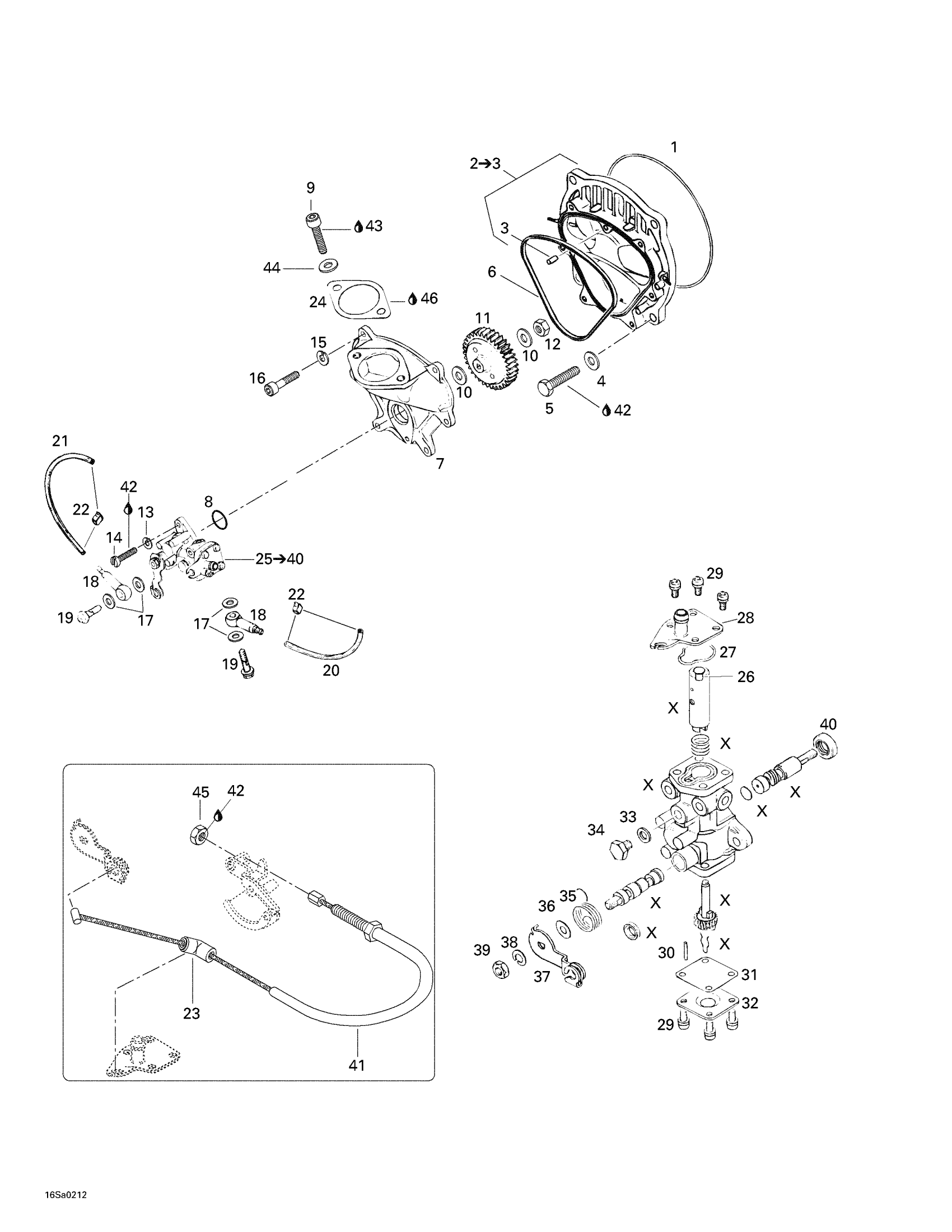

Sea-doo Explorer, 5455, 2002 Oil Injection System, Oil Pump, Rotary Valve Diagram

#

Description
Price

1

O-RING - Call your local BRP dealership

293300023

Unavailable

2

Rotary Valve Cover | Includes 2 - 3.

290811252

Unavailable

3

Drive Pin 5 X 10

420929650

Unavailable

4

Washer 8.4 mm

290250313

Unavailable

5

Hex. Screw M8 X 20

207182044

Unavailable

6

Rubber Ring

290850160

Unavailable

7

Oil Pump Flange

290811193

Unavailable

8

O-RING - Call your local BRP dealership

293300018

Unavailable

9

Socket Head Screw M8 X 75

205087560

Unavailable

10

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

11

Oil Pump Gear 41 Teeth

420935945

Unavailable

12

Elastic Stop Nut M6

232561414

Unavailable

13

Lock Washer

290845389

Unavailable

14

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

15

Lock Washer 6 mm

290845381

Unavailable

16

Socket Head Screw M6 X 20

205062060

Unavailable

17

Sealing Washer

404146600

Unavailable

18

Valve Ass’Y

420956010

Unavailable

19

Banjo Bolt M6 X 16

404146800

Unavailable

20

Oil Hose 1500Mm Long

219704404

Unavailable

21

Oil Hose 1500Mm Long

219704404

Unavailable

22

Clamp 3.5 mm

290853843

Unavailable

23

CABLE GUIDE - Call your local BRP dealership

270000187

Unavailable

24

Gasket This part replaces 293250070.

293250134

Unavailable

25

Oil Pump Ass'y | Includes 25 - 40.

290996725

Unavailable

26

Retainer

290256085

Unavailable

27

O-RING - Call your local BRP dealership

293300019

Unavailable

28

Pump Upper Plate

290956340

Unavailable

29

SCREW M4 X 8 WITH LOCK WASHER - Call your local BRP dealership

420241975

Unavailable

30

Stop Pin

290929900

Unavailable

31

Gasket

420850200

Unavailable

32

Pump Lower Plate

290956031

Unavailable

33

GASKET - Call your local BRP dealership

420227505

Unavailable

34

Hex. Screw M6 x 8

290841583

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Washer 6.2 mm

290227665

Unavailable

37

Lever Control

290848162

Unavailable

38

Lock Washer 6 mm

290845381

Unavailable

39

Hex. Nut M6

290242623

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Injection Cable

270000386

Unavailable

42

Loctite 243, 10 ml

293800060

Unavailable

43

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

44

Stainless, Flat Washer 8 mm

234081600

Unavailable

45

Hex. Nut M6

232160600

Unavailable

46

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

47

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886316

Unavailable

48

Engine Gasket Set (Not Shown)

290886317

Unavailable
