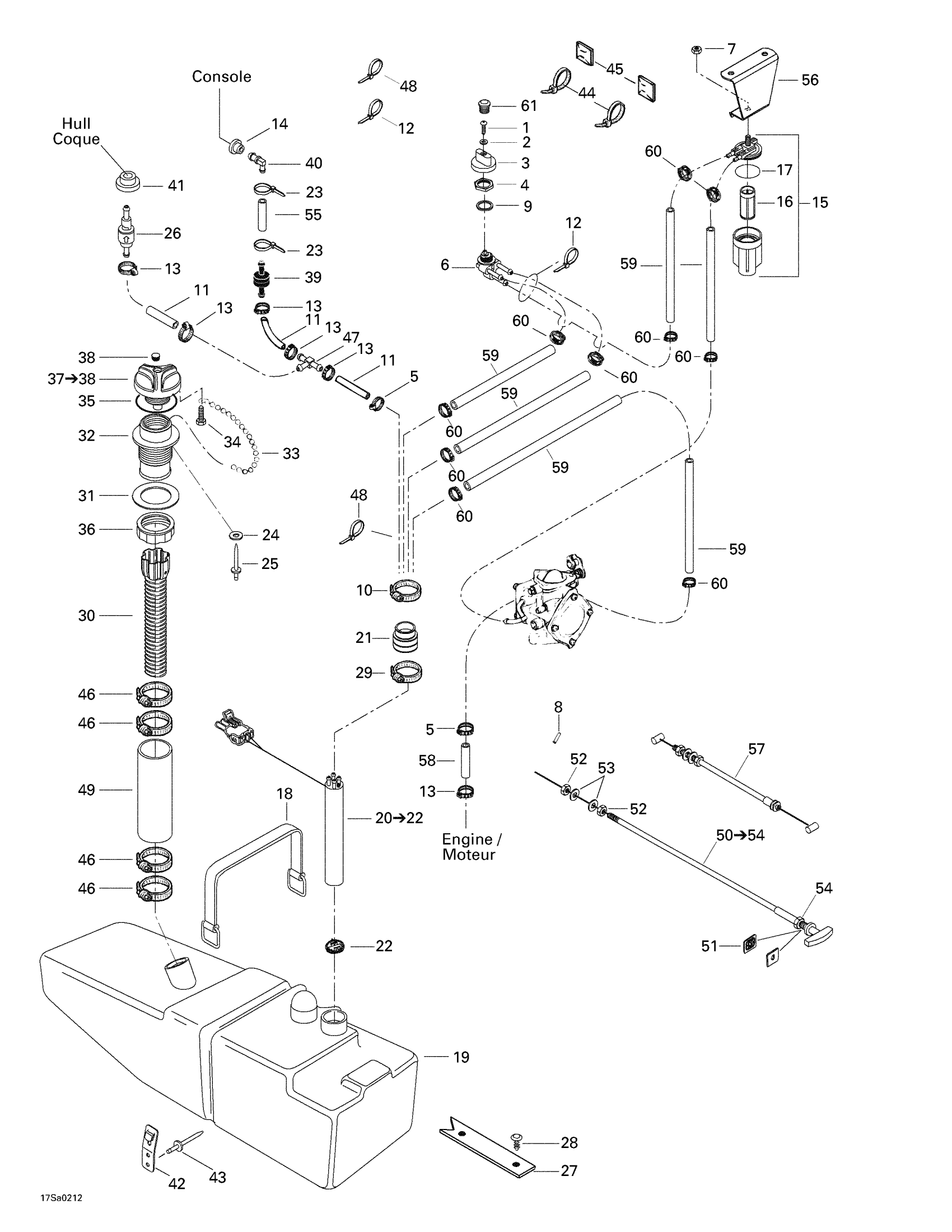

Sea-doo Explorer, 5455, 2002 Fuel System Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Flat Washer 4 mm

234040600

$0.46

3

FUEL VALVE KNOB - Call your local BRP dealership

275500299

Unavailable

4

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

5

Tridon Clamp

280650038

Unavailable

6

Fuel Valve

275500098

$34.42

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Allen Screw M4 x 6

210100014

Unavailable

9

GASKET - Call your local BRP dealership

293250004

Unavailable

10

Norma Clamp

293650077

$6.11

11

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

12

Tie Wrap 142 mm

293750002

$0.88

13

Oetiker Clamp

293650042

$1.40

14

Grommet

709200285

$7.09

15

Fuel Filter Ass'y | Includes 15 - 17.

275500088

Unavailable

16

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

17

O-Ring

275500090

$6.84

18

Strap

293850023

Unavailable

19

Fuel Tank

275500218

Unavailable

20

BAFFLE - Call your local BRP dealership | Includes 20 - 22.

275500226

Unavailable

21

Tube Adapter

275500111

Unavailable

22

Fuel Filter

275500249

Unavailable

23

Tie Wrap 94 mm | 4X4

293750001

$0.83

24

Flat Washer M3, Stainless

234032600

$0.52

25

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

26

Check Valve

275500424

Unavailable

27

Pad Rubber

293830033

Unavailable

28

Black, Dart

293730006

$0.81

29

Norma Clamp

293650081

$9.87

30

Filler Neck Hose

275500181

Unavailable

31

Gasket

293250029

$12.06

32

Filler Neck

275500247

Unavailable

33

Oil Cap Chain

275500015

Unavailable

34

Screw K40 X 10

241140060

$1.25

35

Gasket

293250017

Unavailable

36

Filler Neck Nut, Fuel

211100012

$10.02

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

38

Black, Snap Cap

293000034

$7.48

39

Check Valve

275500398

$8.57

40

Male Connector

414580700

$3.38

41

Grommet

293720029

$1.13

42

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.47

44

Tie Wrap 142 mm

293750002

$0.88

45

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

46

Tridon Clamp

293650023

$11.37

47

T-Fitting | Europe

293710024

$12.82

48

Tie-Rap 180 mm

414115200

$0.09

49

Filler Neck Hose

204000002

Unavailable

50

CHOKE CABLE - Call your local BRP dealership | Includes 50 - 54.

204250071

Unavailable

51

Choke Plate

291000457

Unavailable

52

Hex. Nut M6

232160600

$1.04

53

Stainless Flat Washer M6

234061600

$0.25

54

Hex. Nut

211100007

Unavailable

55

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

56

Fuel Filter Support

204560192

Unavailable

57

THROTTLE CABLE - Call your local BRP dealership

277000502

Unavailable

58

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

59

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

60

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

61

Black, Cap

275500241
