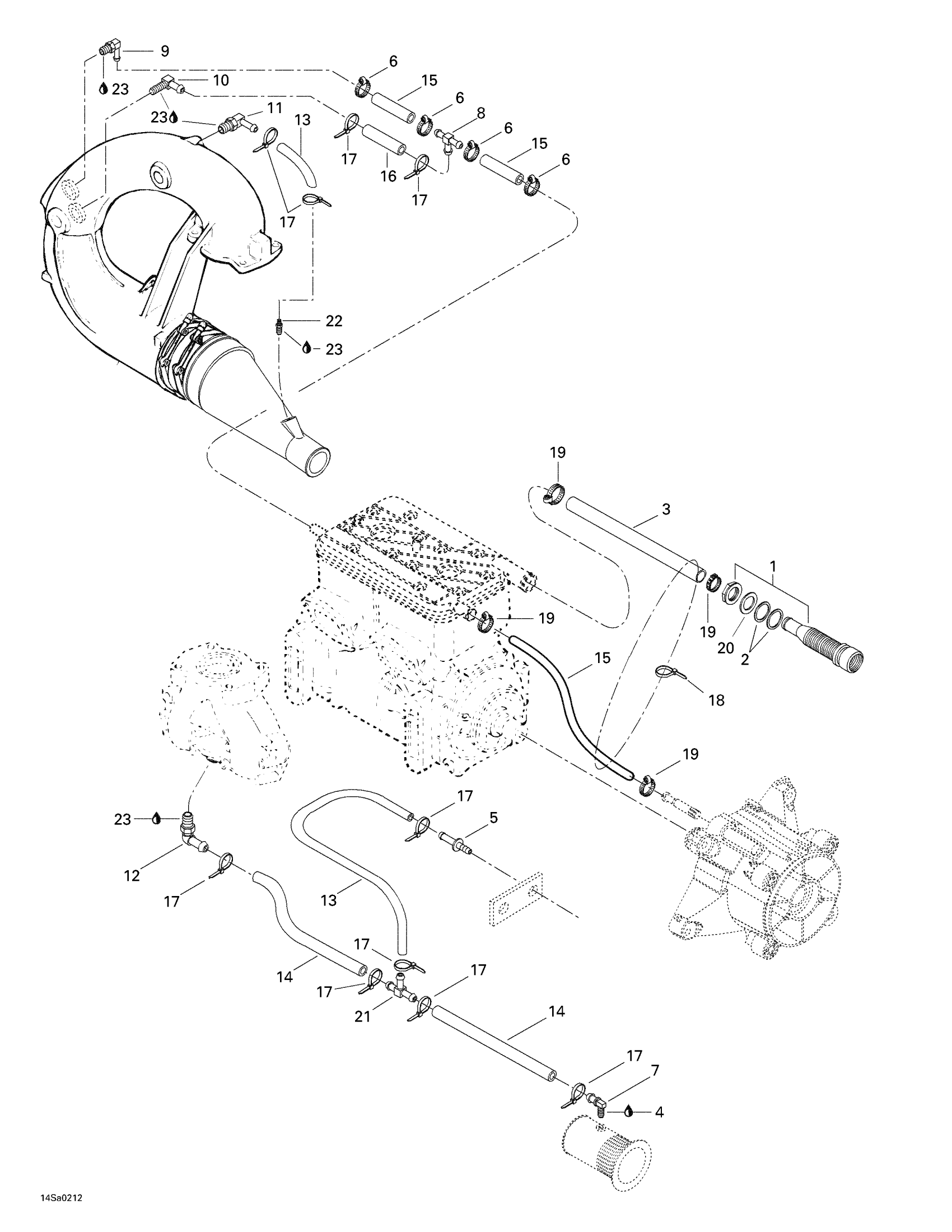

Sea-doo Explorer, 5455, 2002 Cooling System Diagram

#

Description
Price

1

FITTING - Call your local BRP dealership

293710081

Unavailable

2

GASKET - Call your local BRP dealership

293250028

Unavailable

3

Was 276000001 Hose 12.5 mm

219704394

$42.87

4

Was 293800013 Loctite 56765

219704454

$63.40

5

BLEED FITTING - Call your local BRP dealership

291000306

Unavailable

6

Tridon Gear Clamp

293650172

$2.68

7

Elbow Fitting

293700016

Unavailable

8

T-FITTING - Call your local BRP dealership

293710052

$11.69

9

Elbow Fitting 90° | Without Catalyst

293700023

$17.13

10

Elbow Fitting 90°

293710048

Unavailable

11

Elbow Fitting 90°

293710018

Unavailable

12

Elbow Fitting

293700016

Unavailable

13

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

15

Was 276000001 Hose 12.5 mm

219704394

$42.87

16

Hose 6 Mm 15000Mm Long

219704360

$104.62

17

Tie Wrap 94 mm | 4X4

293750001

$0.83

18

Tie-Rap 180 mm

414115200

$0.09

19

Tridon Gear Clamp

293650172

$2.68

20

WASHER - Call your local BRP dealership

293050003

Unavailable

21

<> FITTING - Call your local BRP dealership

293710042

Unavailable

22

Male Connector

293710037

$7.23

23

Was 293800013 Loctite 56765

219704454

$63.40
