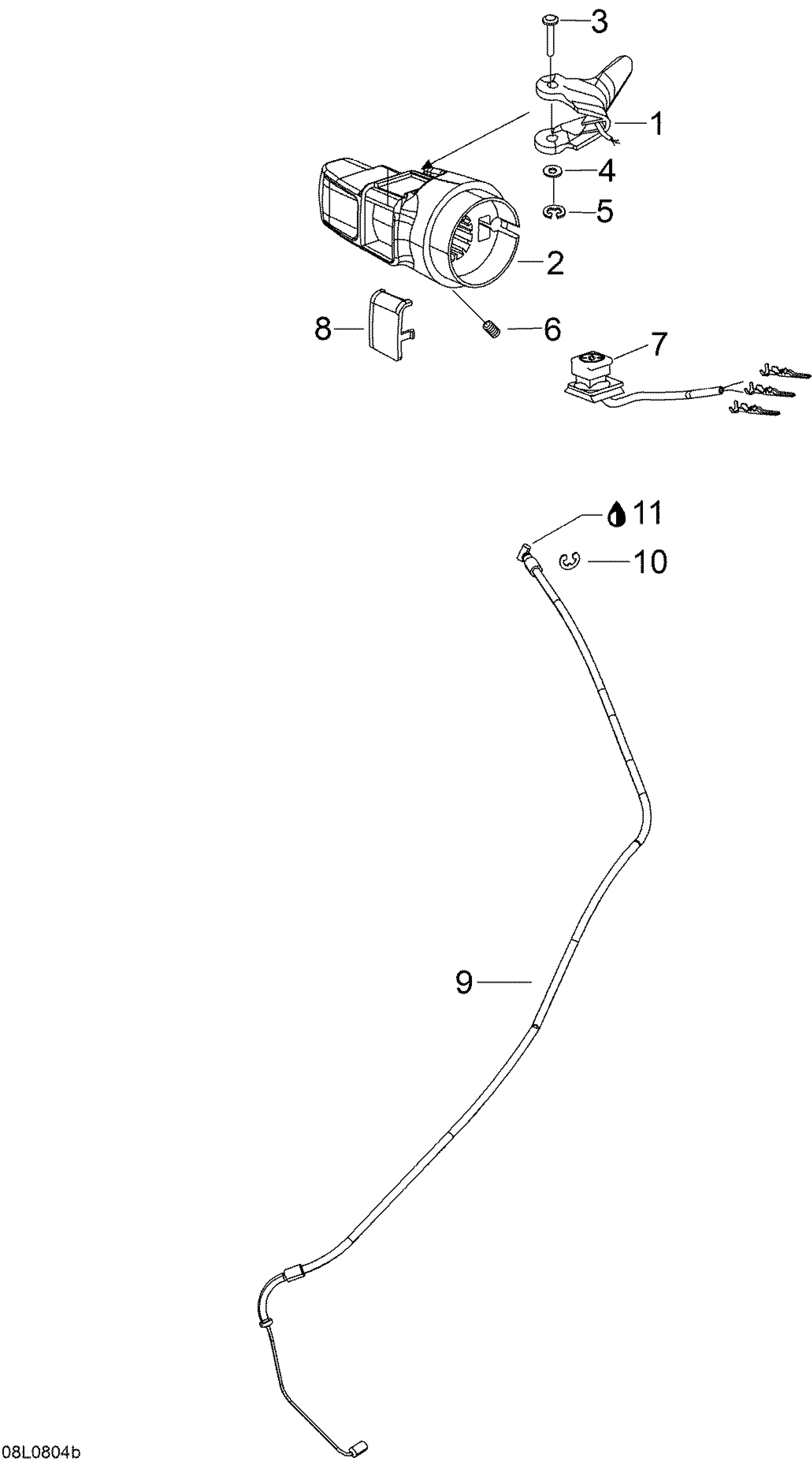

Ski-Doo Expedition V-1300, 2008 Throttle Handle And Housing Diagram

#

Description

Price

1

Handle Ass’Y

512059624

Unavailable

2

THROTTLE HOUSING - Call your local BRP dealership

512059489

Unavailable

3

Lever Pin

414438700

$11.14

4

Flat Washer M5, Stainless

234051600

$0.64

5

Circlip | Model-RS

414439000

Unavailable

6

Socket Set Screw M8 X 10

414440800

$4.00

7

Kill Switch

515175410

Unavailable

8

Switch Cover

572100901

Unavailable

9

THROTTLE CABLE - Call your local BRP dealership

512059349

Unavailable

10

Circlip

M31038

Unavailable

11

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
