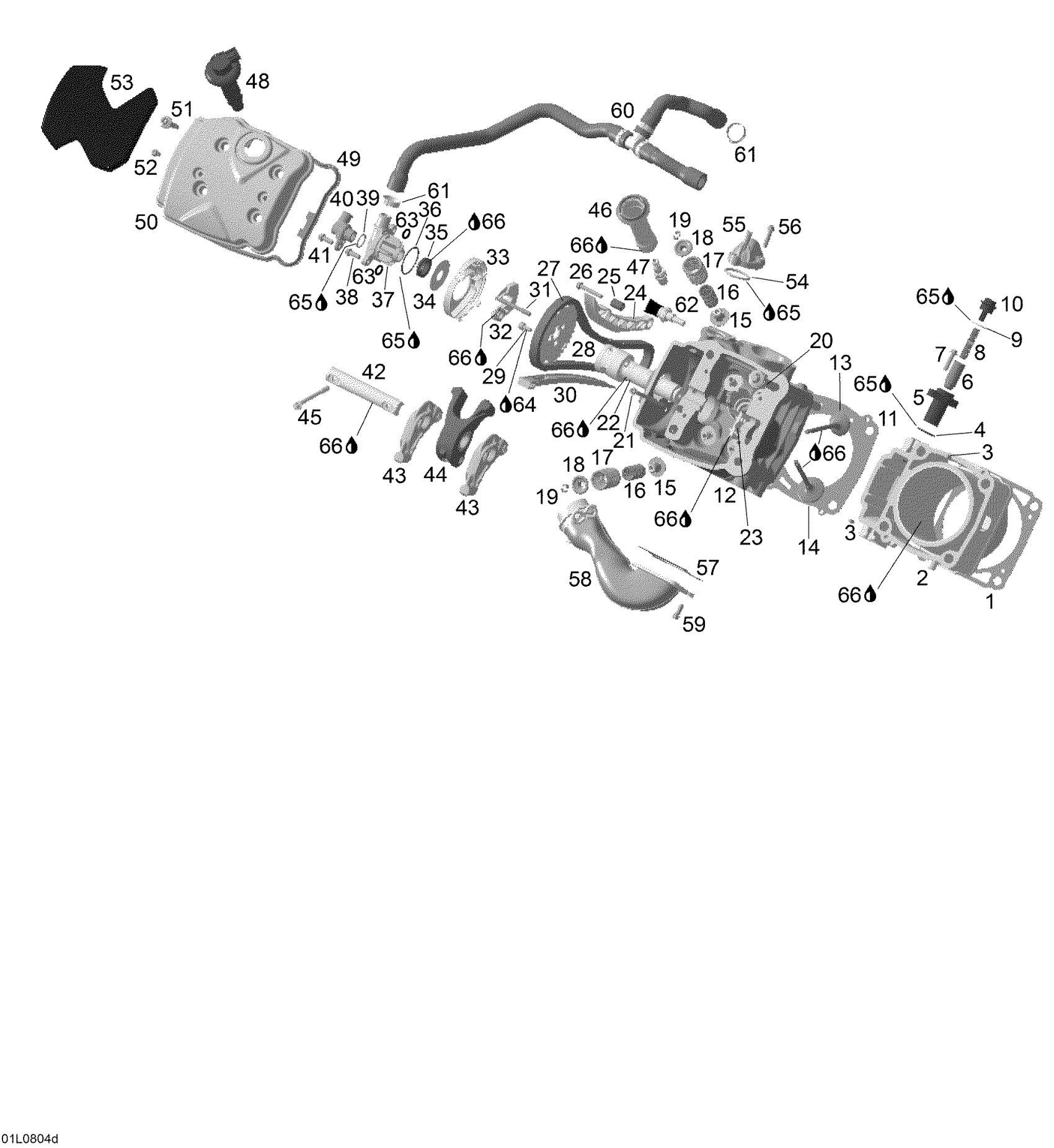

Ski-Doo Expedition V-1300, 2008 Cylinder Head Front Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

420630080

Unavailable

2

CYLINDER WITH SLEEVE - Call your local BRP dealership | Includes 2 to 3

420623212

Unavailable

3

Drive Pin 5 X 10

420929650

Unavailable

4

O-Ring

420430373

Unavailable

5

Chain Tensioner Housing

420236510

Unavailable

6

Chain Tensioner Plunger

420236521

Unavailable

7

Torx Flange Screw M6 X 25

420440234

Unavailable

8

Spring

420238120

Unavailable

9

O-Ring

420250890

Unavailable

10

Plug Screw

420641150

Unavailable

11

CYLINDER HEAD GASKET - Call your local BRP dealership

420950660

Unavailable

12

CYLINDER HEAD ASS?Y - Call your local BRP dealership

420613475

Unavailable

13

Exhaust Valve 31 mm

420254027

Unavailable

14

Intake Valve 38MM

420253163

Unavailable

15

Valve Steam Seal

420630202

Unavailable

16

Valve Spring Inside

420838280

Unavailable

17

Valve Spring

420238180

Unavailable

18

Valve Spring Retainer

420254283

Unavailable

19

Valve Cotter

420253645

Unavailable

20

TORX SCREW M11 X 215 - Call your local BRP dealership

420641020

Unavailable

21

Torx Flange Screw M6 X 105

420440612

Unavailable

22

CAMSHAFT FRONT - Call your local BRP dealership

420837575

Unavailable

23

Camshaft Guide

420851694

Unavailable

24

Chain Tension Guide

420236541

Unavailable

25

DISTANCE SLEEVE - Call your local BRP dealership

420247100

Unavailable

26

Torx Flange Screw M6 X 35

420440274

Unavailable

27

Camshaft Chain

420297957

Unavailable

28

Timing Gear, 38 Teeth

420254309

Unavailable

29

Allen Screw M6 X 12

420840032

Unavailable

30

Chain Guide

420236501

Unavailable

31

DEKO SHAFT - Call your local BRP dealership

420220791

Unavailable

32

Centrifugal Weight Ass’Y

420231064

Unavailable

33

Cover

420660037

Unavailable

34

Thrust Washer

420627494

$6.11

35

V-Ring 20S FPM Blow By Valve

420630125

$9.37

36

O-Ring

420950870

$4.41

37

CAMSHAFT COVER - Call your local BRP dealership

420610272

Unavailable

38

Torx Flange Screw M6 X 16

420440162

$3.11

39

O-Ring

420430220

$8.03

40

Connecting Cover

420660275

Unavailable

41

Torx Flange Screw M6 X 16

420440162

$3.11

42

ROCKER ARM SHAFT ASS'Y - Call your local BRP dealership

420854599

Unavailable

43

Rocker Arm, Exhaust

420254329

Unavailable

44

Rocker Arm, Inner

420254316

Unavailable

45

Torx Screw M8 X 72

420641080

Unavailable

46

Spark Plug Pipe

420851754

Unavailable

47

Spark Plug, NGK DCP-R8E

715900637

Unavailable

48

Ignition Coil Kit This part replaces 420664020.

296000307

Unavailable

49

Sealing Ring

420630071

Unavailable

50

Valve Cover

420610185

Unavailable

51

Allen Screw M6 x 30,5

420440561

Unavailable

52

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

53

Valve Cover

420660201

Unavailable

54

O-Ring

420950890

Unavailable

55

Connecting Cover

420811700

Unavailable

56

Torx Flange Screw M6 X 25

420440234

Unavailable

57

GASKET - Call your local BRP dealership

420950680

Unavailable

58

EXHAUST MANIFOLD ASS'Y - Call your local BRP dealership

420973782

Unavailable

59

Torx Flange Screw M6 X 16

420440162

$3.11

60

AIR VENT LINE ASS'Y - Call your local BRP dealership

420660713

Unavailable

61

CLAMP - Call your local BRP dealership

420853153

Unavailable

62

Temperature Sensor

278002895

$31.82

63

Seal Washer

420230415

$1.77

64

Loctite 243, 10 ml

293800060

$20.77

65

Grease, Super Lube

293550030

Unavailable

66

Synth Oil 4T 12x1

293600054

Unavailable
