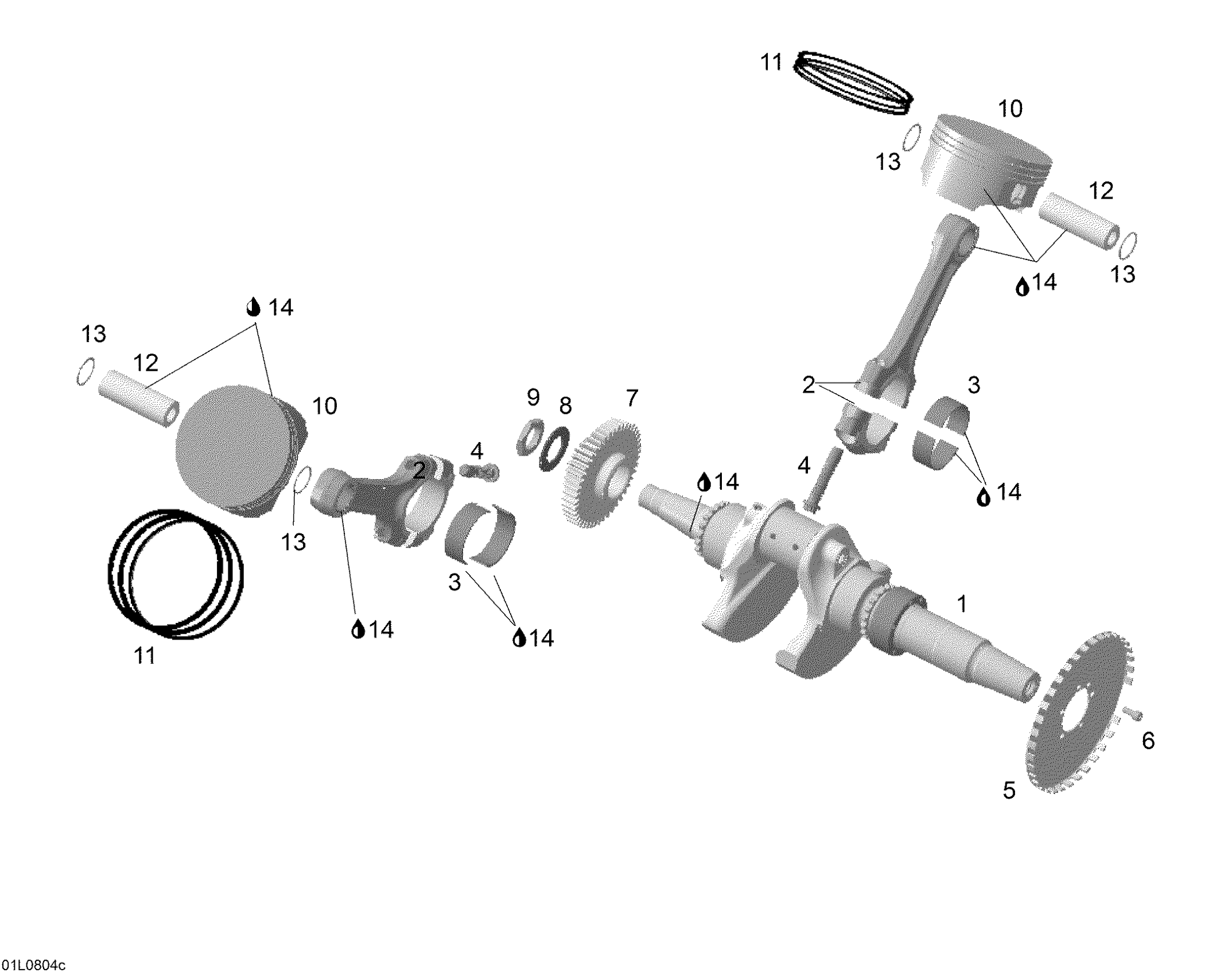

Ski-Doo Expedition V-1300, 2008 Crankshaft And piston Diagram

#

Description
Price

—

Not Available As Spare Part - Friction Washer

Unavailable

1

Crankshaft Ass'y

420819087

Unavailable

2

CONNECTING ROD - Call your local BRP dealership | Traxter 650 CVT, Includes 20 To 21

420917525

Unavailable

3

Half-Bearing

420933523

Unavailable

4

Connecting rod Screw M10 X 1

420640991

Unavailable

5

TRIGGER WHEEL - Call your local BRP dealership

420966850

Unavailable

6

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

420640541

Unavailable

7

Drive Gear 45 Teeth

420834446

Unavailable

8

Spring Washer

420245860

Unavailable

9

Nut

420242879

Unavailable

10

PISTON ASS'Y 99,96 - Call your local BRP dealership

420890087

Unavailable

11

PISTON RING SET - Call your local BRP dealership | Starting from engine M6059519, Traxter 650 CVT

420891124

Unavailable

12

Piston Pin

420216250

Unavailable

13

Circlip

420845580

Unavailable

14

Synth Oil 4T 12x1

293600054

Unavailable
