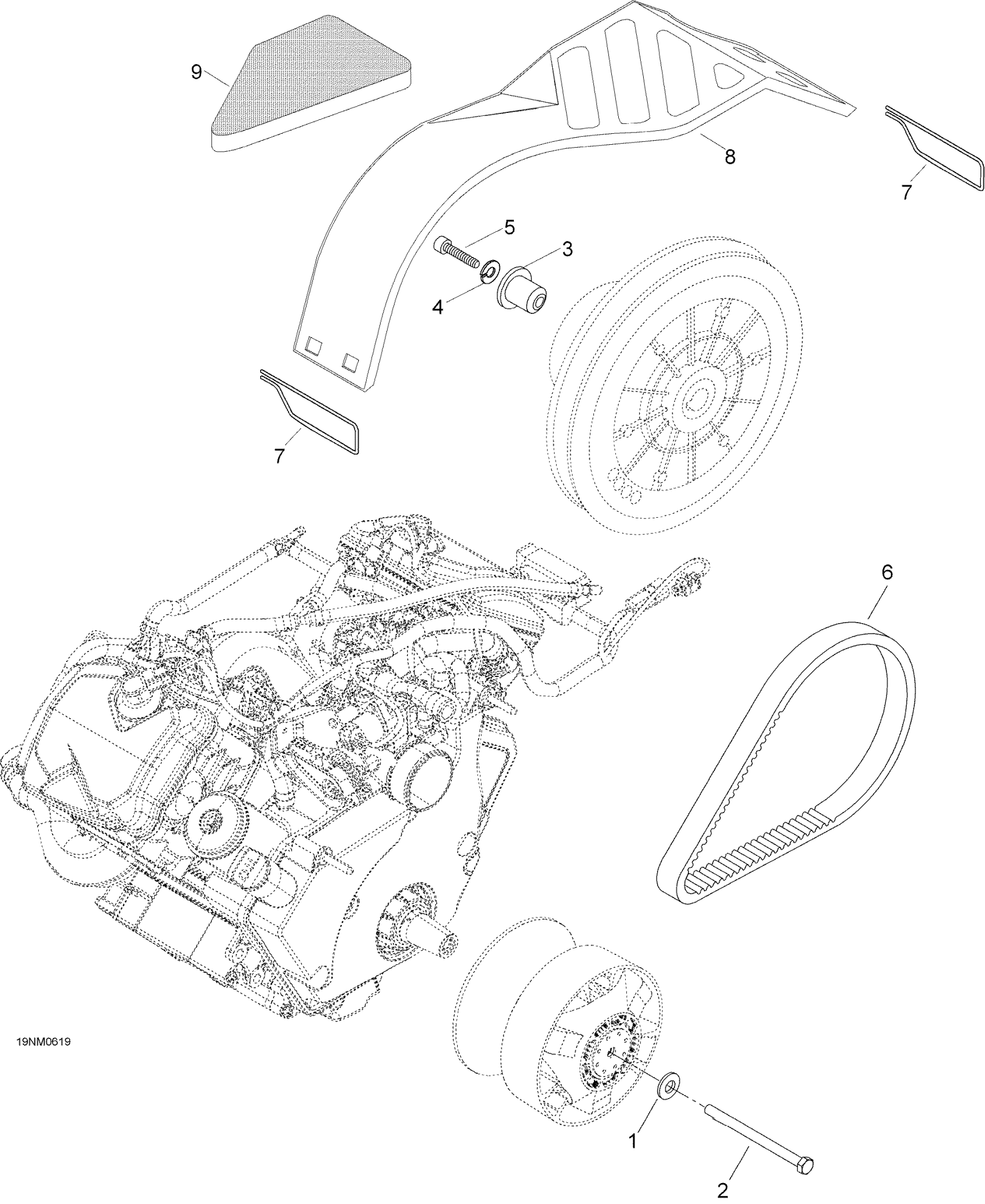

Ski-Doo Expedition V-1000, 2006 Pulley System Diagram

#

Description

Price

1

Conical Spring Washer

M20110

Unavailable

2

Drive Pulley Bolt

417300285

Unavailable

3

Sleeve This part replaces M5443201.

5443201

Unavailable

4

Lock Washer 8 mm

234181401

Unavailable

5

Socket Head Screw M8 X 45

M40286

Unavailable

6

Drive Belt

605348425

Unavailable

7

Pin This part replaces M5442726.

5442726

Unavailable

8

BELT GUARD - Call your local BRP dealership

605149860

Unavailable

9

ISOLANT FOAM - Call your local BRP dealership

605250741

Unavailable
