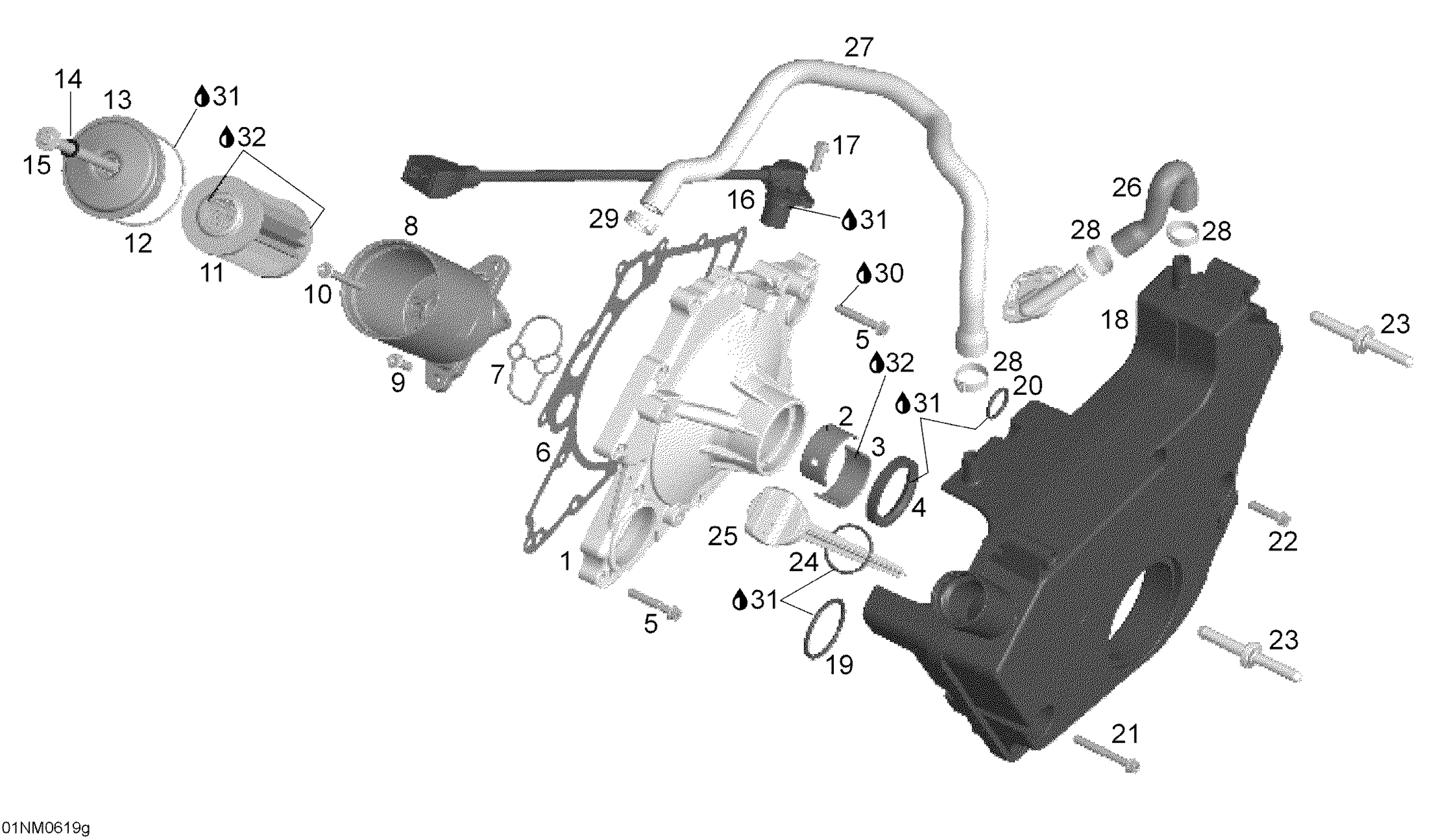

Ski-Doo Expedition V-1000, 2006 Oil System Diagram

#

Description
Price

1

Clutch Cover Ass’Y | Includes 1 to 3

420811671

Unavailable

2

HALF BUSHING - Call your local BRP dealership

420933540

Unavailable

3

PLAIN BEARING - Call your local BRP dealership

420933545

Unavailable

4

OIL SEAL - Call your local BRP dealership

420931155

Unavailable

5

Torx Flange Screw M6 X 35

420440274

Unavailable

6

GASKET - Call your local BRP dealership

420950610

Unavailable

7

GASKET - Call your local BRP dealership

420950990

Unavailable

8

OIL FILTER HOUSING ASS'Y - Call your local BRP dealership

420811903

Unavailable

9

Torx Flange Screw M6 X 25

420440234

Unavailable

10

Hex. Flange Screw M6 X 65

420440602

Unavailable

11

Oil Filter

420956741

Unavailable

12

O-Ring

420230923

$2.59

13

OIL FILTER COVER - Call your local BRP dealership

420610326

Unavailable

14

O-Ring

420950860

Unavailable

15

Oil Filter Screw Kit

295501207

Unavailable

16

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

17

Torx Flange Screw M6 X 16

420440162

$3.11

18

Oil Tank Ass’Y

420956700

Unavailable

19

O-RING - Call your local BRP dealership

420631400

Unavailable

20

O-RING - Call your local BRP dealership

420631410

Unavailable

21

Torx Flange Screw M6 X 45

420440324

$0.81

22

Torx Flange Screw M6 X 25

420440234

Unavailable

23

FIXATION BOLT - Call your local BRP dealership

420660860

Unavailable

24

O-ring

420430590

Unavailable

25

OIL DIPSTICK - Call your local BRP dealership

420956890

Unavailable

26

HOSE - Call your local BRP dealership

420960740

Unavailable

27

HOSE - Call your local BRP dealership

420960801

Unavailable

28

Clamp

420853143

Unavailable

29

Clamp

420853313

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

Grease, Super Lube

293550030

Unavailable

32

Synth Oil 4T 12x1

293600054

Unavailable
