Drive System

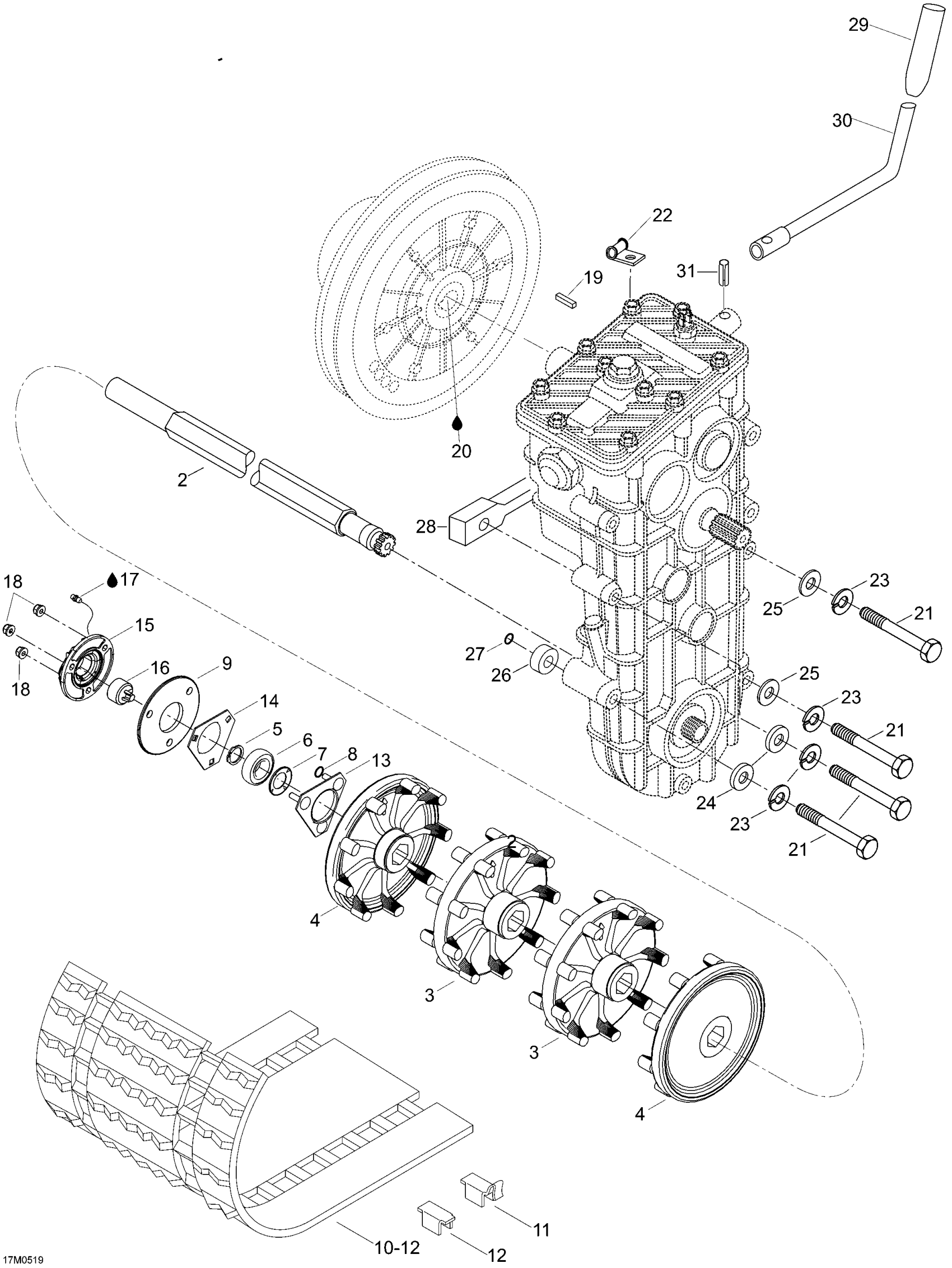

Ski-Doo Expedition V-1000, 2005 Drive System Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
DRIVE AXLE - Call your local BRP dealership
605249455
Unavailable
4
HALF SPROCKET - Call your local BRP dealership
415067400
Unavailable
5
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
6
Ball Bearing
293350060
Unavailable
7
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
9
Washer
M5446641
Unavailable
10
Track ass'y | Includes 10 to 12 This part replaces M13070.
13070
Unavailable
11
CLEAT-GUIDE - Call your local BRP dealership
M5318323
Unavailable
12
CLEAT - Call your local BRP dealership
M5318322
Unavailable
13
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
14
FLANGE - Call your local BRP dealership
501025000
Unavailable
15
Flange, Speedo
504152173
Unavailable
16
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
17
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
18
Hex. Flange Elastic Nut M8
233281414
Unavailable
19
KEY - Call your local BRP dealership This part replaces M418763.
619690074
Unavailable
20
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
21
SCREW-HEX. M8 X 100 - Call your local BRP dealership
230080044
Unavailable
22
WIRE-HOLDER - Call your local BRP dealership
M5443134
Unavailable
23
Lock Washer 8 mm
234181401
Unavailable
24
M8 Washer This part replaces M20077.
20077
Unavailable
25
Flat Washer 8 mm
234081410
Unavailable
26
SPACER - Call your local BRP dealership
605450155
Unavailable
27
O-RING - Call your local BRP dealership
506151140
Unavailable
28
CONNECTING BAR - Call your local BRP dealership
605351366
Unavailable
29
Shift button This part replaces M28247.
28247
Unavailable
30
SHIFT HANDLE - Call your local BRP dealership
605350153
Unavailable
31
PIN SPRING - Call your local BRP dealership
M41007
Unavailable
