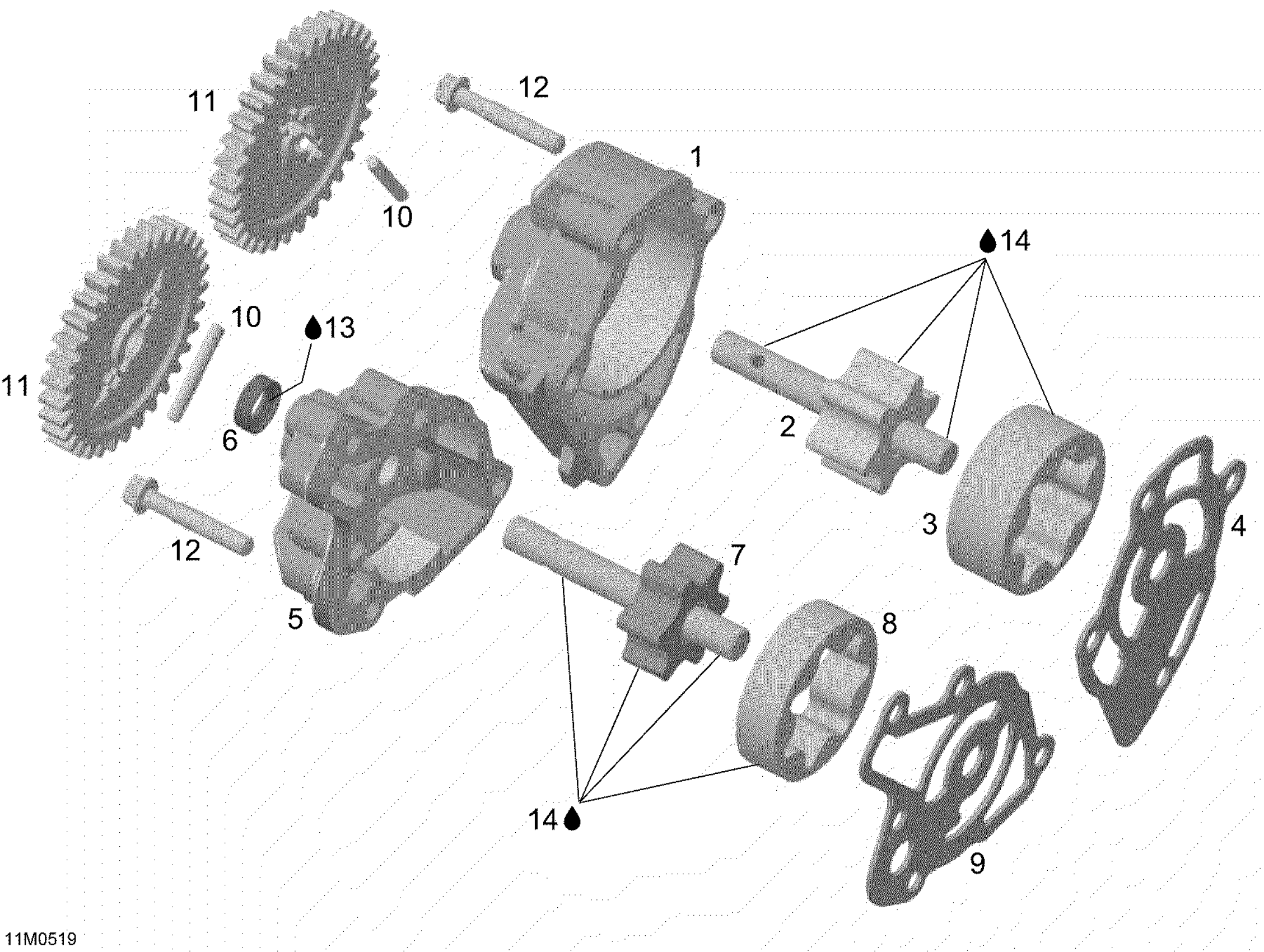

Ski-Doo Expedition V-1000, 2005 Oil Pump Diagram

#

Description
Price

1

OIL PUMP COVER - Call your local BRP dealership

420811690

$55.35

2

OIL PUMP SHAFT - Call your local BRP dealership

420837499

$161.51

3

Outer Rotor, 20 mm

420856455

Unavailable

4

INTERMEDIATE PLATE - Call your local BRP dealership

420926325

$8.51

5

OIL PUMP COVER - Call your local BRP dealership

420811680

$55.35

6

OIL SEAL - Call your local BRP dealership

420931142

$6.95

7

OIL PUMP SHAFT - Call your local BRP dealership

420837494

$161.51

8

OUTER ROTOR, 14 MM - Call your local BRP dealership

420856445

$103.82

9

INTERMEDIATE PLATE - Call your local BRP dealership

420926320

$8.51

10

Needle Pin

420232431

$3.67

11

OIL PUMP GEAR, 33 TEETH - Call your local BRP dealership

420834470

Unavailable

12

Torx Flange Screw M6 X 35

420440274

$0.83

13

Grease, Super Lube

293550030

$24.67

14

Synth Oil 4T 12x1

293600054

Unavailable
