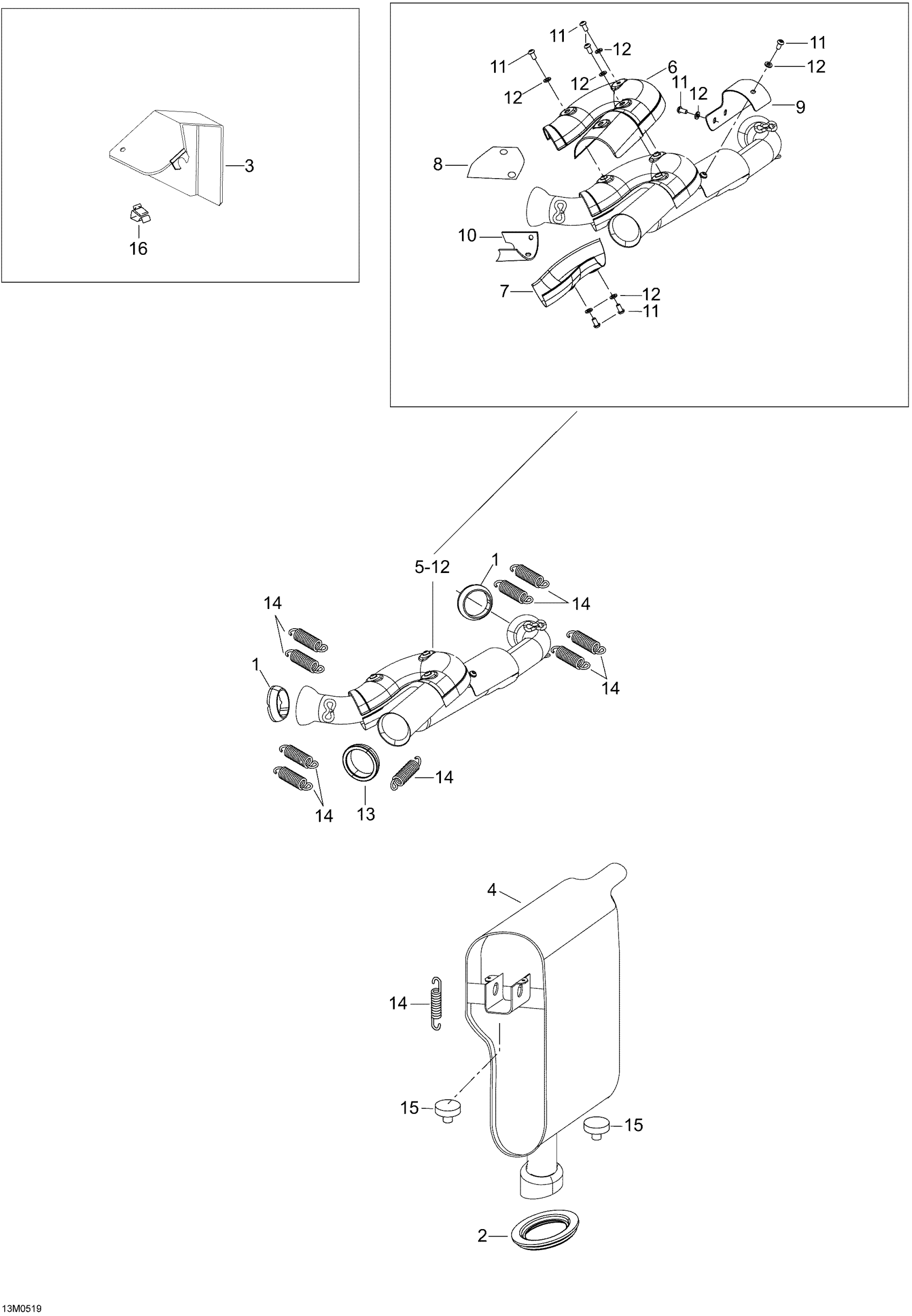

Ski-Doo Expedition V-1000, 2005 Exhaust System Diagram

#

Description
Price

1

Exhaust Gasket

707601033

$13.29

2

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

3

Heat Protector

605352345

Unavailable

4

Muffler Assy

605150881

Unavailable

5

Tune Pipe | Includes 4 to 11

605150882

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Exhaust Gasket

514054174

$27.66

14

Spring

415107100

$6.20

15

Rubber Bumper

514053654

$49.20

16

GEAR CLAMP - Call your local BRP dealership

M27017

Unavailable
