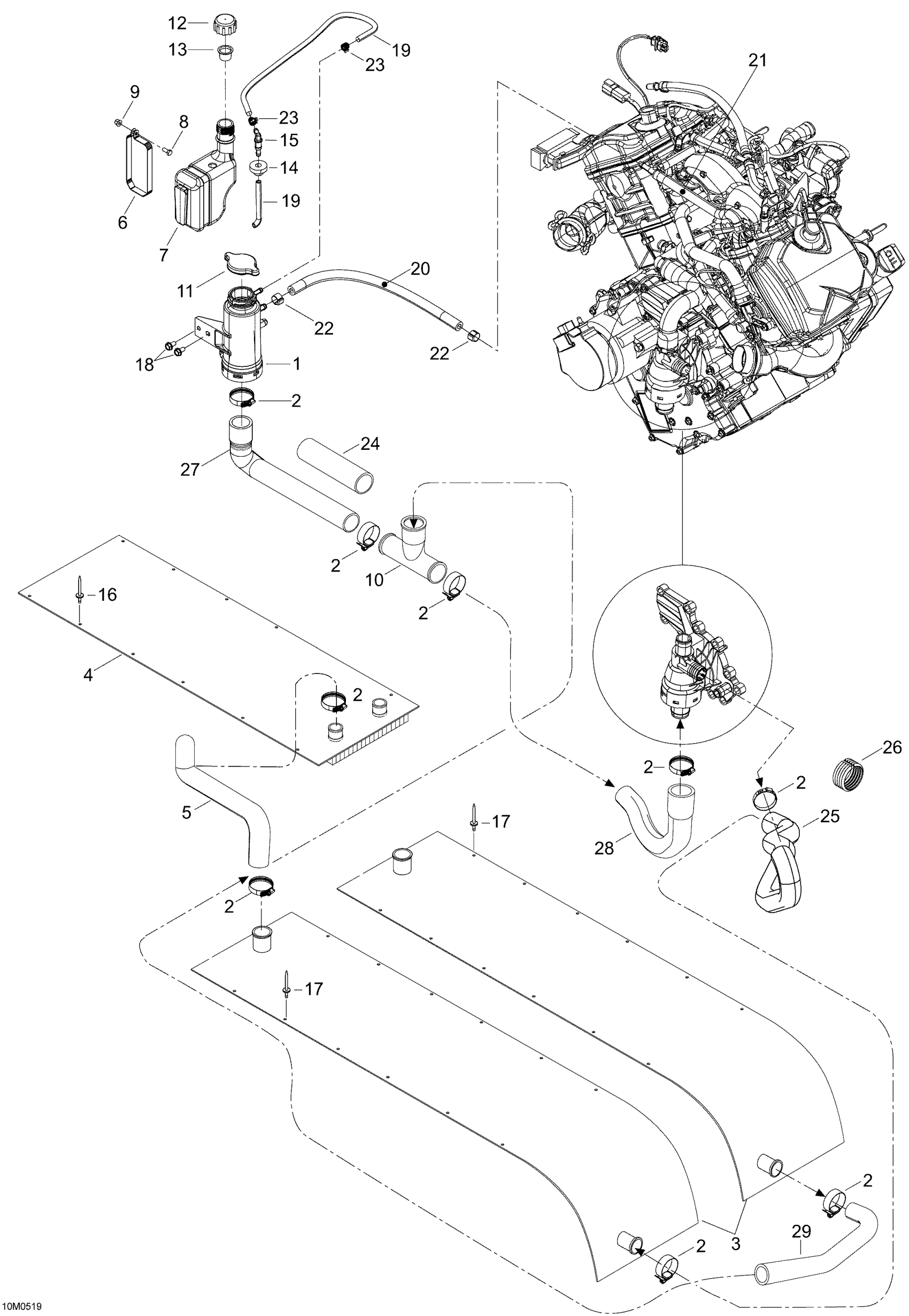

Ski-Doo Expedition V-1000, 2005 Cooling System Diagram

#

Description
Price

1

FILLER NECK ASS'Y - Call your local BRP dealership

509000176

Unavailable

2

Clamp

40880400

Unavailable

3

RH RADIATOR - Call your local BRP dealership

605151688

Unavailable

3

LH RADIATOR - Call your local BRP dealership

605152382

Unavailable

4

Radiator, Rear

605351687

Unavailable

5

Hose

605252280

Unavailable

6

COOLANT TANK SUPPORT - Call your local BRP dealership

509000191

Unavailable

7

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

8

Screw M5X16

M40366

Unavailable

9

NUT M5 - Call your local BRP dealership

M33062

Unavailable

10

T-Fitting

509000219

$15.35

11

Radiator Pressure Cap

509000180

$11.69

12

TANK CAP - Call your local BRP dealership

709200009

Unavailable

13

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

14

Grommet

709200285

$7.09

15

Elbow Male Connector

414580600

$3.50

16

Rivet

M36489

Unavailable

17

Rivet

36108

$1.85

18

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

19

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

20

RETURN HOSE - Call your local BRP dealership

509000304

Unavailable

21

Was M27127 Tubing

219704355

Unavailable

22

Tridon Gear Clamp

293650170

$1.74

23

Spring Clamp

414554800

$0.83

24

TUBING - Call your local BRP dealership

M39062

Unavailable

25

Hose

605250712

Unavailable

26

Tube

M390003

Unavailable

27

HOSE - Call your local BRP dealership

605350713

Unavailable

28

HOSE - Call your local BRP dealership

605350714

Unavailable

29

HOSE - Call your local BRP dealership

605350715

Unavailable
