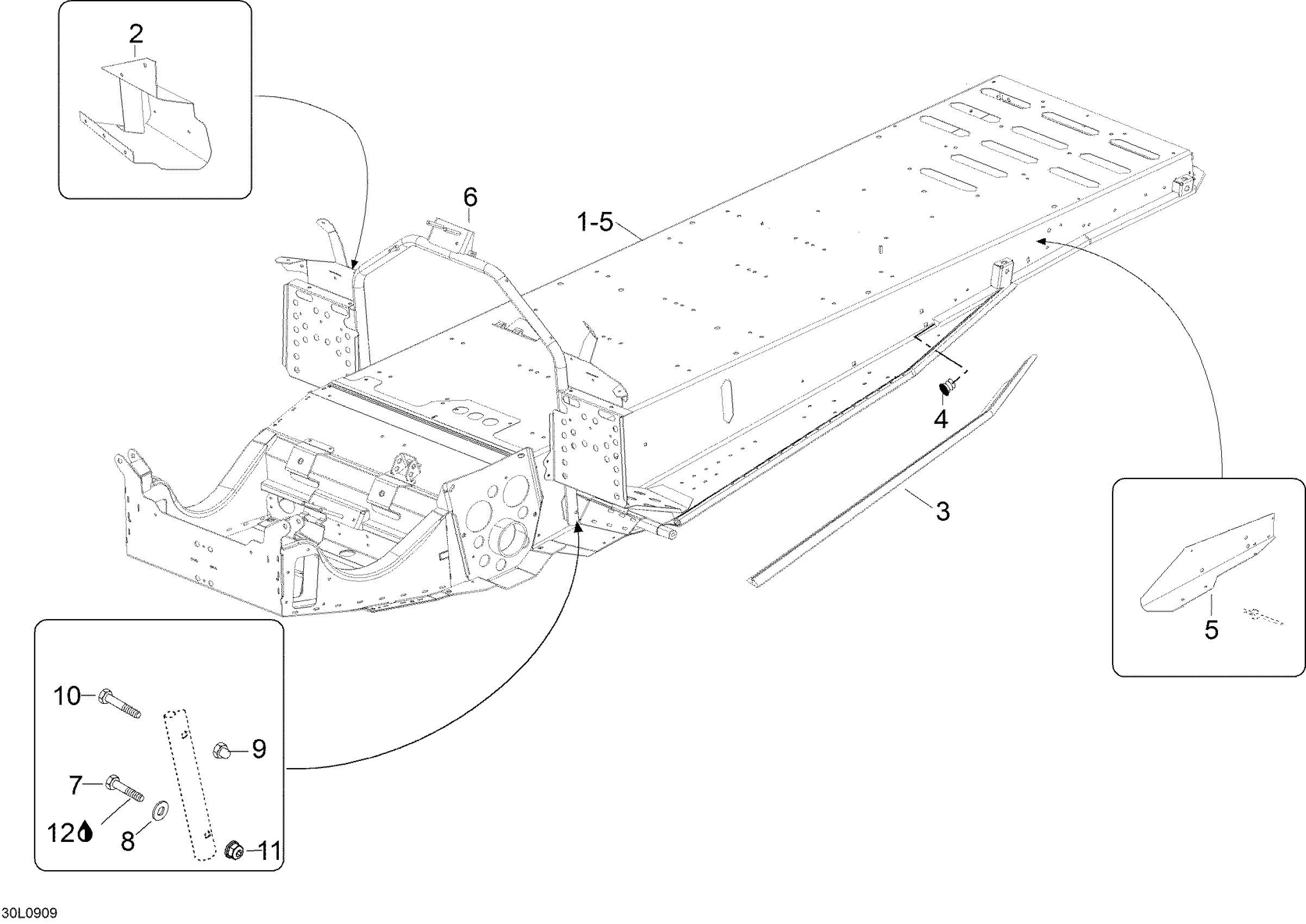

Ski-Doo Expedition TUV V800 4-TEC, 2009 Frame Diagram

#

Description
Price

1

Frame

605155314

Unavailable

2

RH Toe Rest

605350839

Unavailable

2

LH TOE REST - Call your local BRP dealership

605350840

Unavailable

3

LH REINFORCEMENT - Call your local BRP dealership

605250773

Unavailable

3

RH REINFORCEMENT - Call your local BRP dealership

605250774

Unavailable

4

Plug

M28210

Unavailable

5

LH CONER SUPPORT - Call your local BRP dealership

605350845

Unavailable

5

RH Coner Support

605350846

Unavailable

6

STEERING SUPPORT - Call your local BRP dealership

605153995

Unavailable

7

Hex. Screw

M40003

Unavailable

8

Flat Washer 6 mm

234061410

$1.04

9

Hex. Nut M6

232061414

$0.44

10

Hex. Screw M6 X 40

207064044

$1.48

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

Loctite 243, 10 ml

293800060

$20.77
