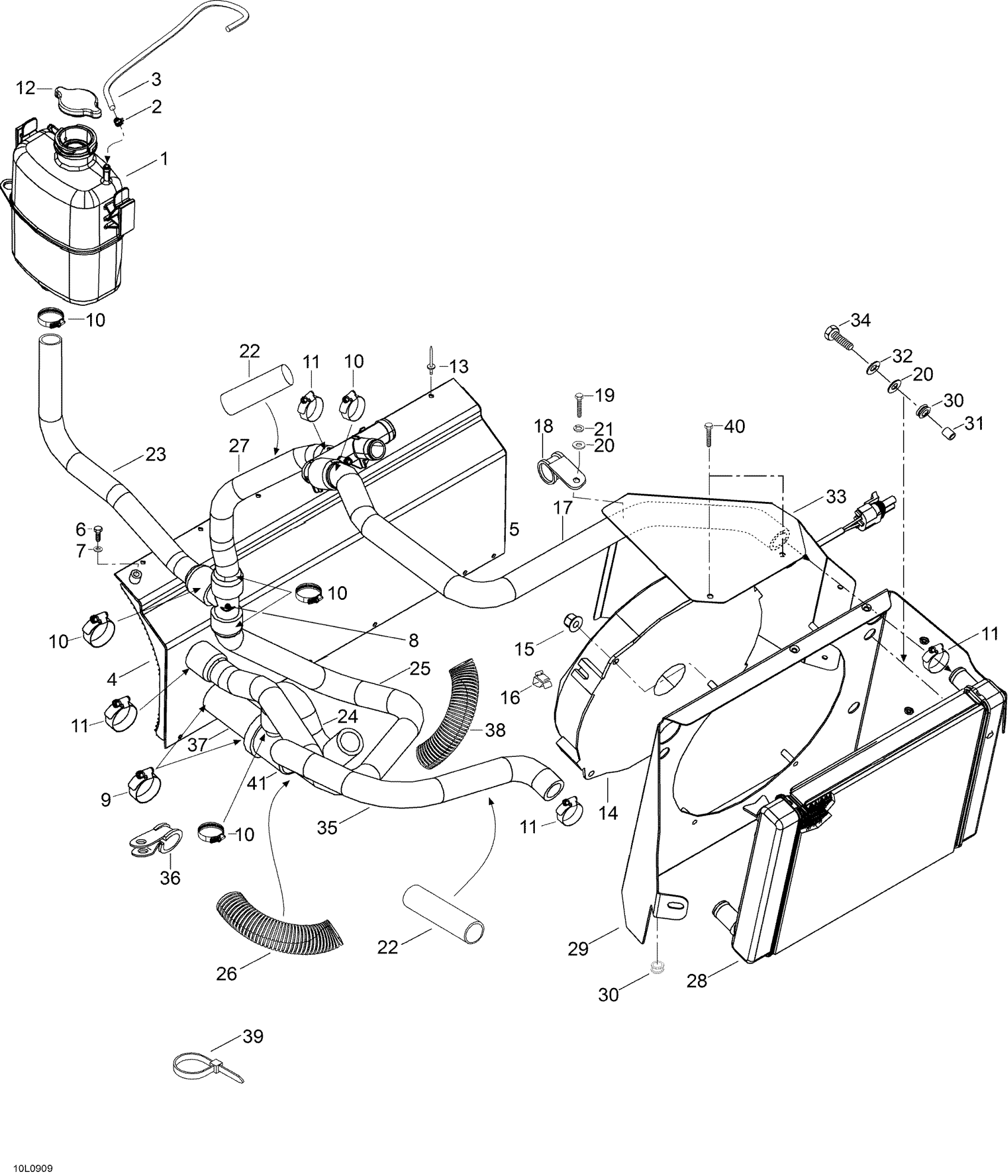

Ski-Doo Expedition TUV V800 4-TEC, 2009 Cooling System Diagram

#

Description
Price

1

Coolant Tank

276000086

$87.72

2

Clamp

605627003

Unavailable

3

Polyurethane Hose 10000Mm Long

219704410

$46.12

4

REFLECTIVE SHEET - Call your local BRP dealership

M44110

Unavailable

5

Radiator

605253699

$700.74

6

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

T-Fitting

509000219

$15.35

9

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

10

CLAMP - Call your local BRP dealership

605627002

Unavailable

11

Clamp

605627004

Unavailable

12

Radiator Pressure Cap

509000180

$11.69

13

Rivet

36108

$1.85

14

AXAIL MOTOR FA SPAL 225 - Call your local BRP dealership

M42091

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Clip

414227300

$1.45

17

HOSE - Call your local BRP dealership

605253694

Unavailable

18

CLAMP - Call your local BRP dealership

M27039

Unavailable

19

Hex. Screw M6 X 16

207161644

$0.61

20

Flat Washer 6 mm

234062410

$0.64

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

TUBING - Call your local BRP dealership

M39062

Unavailable

23

HOSE - Call your local BRP dealership

605253689

Unavailable

24

HOSE - Call your local BRP dealership

605253692

Unavailable

25

HOSE - Call your local BRP dealership

605253691

Unavailable

26

Tubing

M28036

Unavailable

27

HOSE - Call your local BRP dealership

605253690

Unavailable

28

RADIATOR 250 - Call your local BRP dealership

605353238

Unavailable

29

SUPPORT - Call your local BRP dealership

605253698

Unavailable

30

Grommet

709000582

$4.38

31

Bushing

605453745

$11.52

32

Lock Washer M6, Black

234161471

$0.52

33

DEFLECTOR PLATE - Call your local BRP dealership

605254458

Unavailable

34

Hex. Forming Screw M5 X 16

210251650

$0.92

35

HOSE - Call your local BRP dealership

605253693

Unavailable

36

CLAMP - Call your local BRP dealership

M27039

Unavailable

37

HOSE - Call your local BRP dealership

605253695

Unavailable

38

Was M27127 Tubing

219704355

Unavailable

39

Tie-Rap 180 mm

414115200

$0.09

40

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

41

THERMOSTAT - Call your local BRP dealership

605353701

Unavailable
