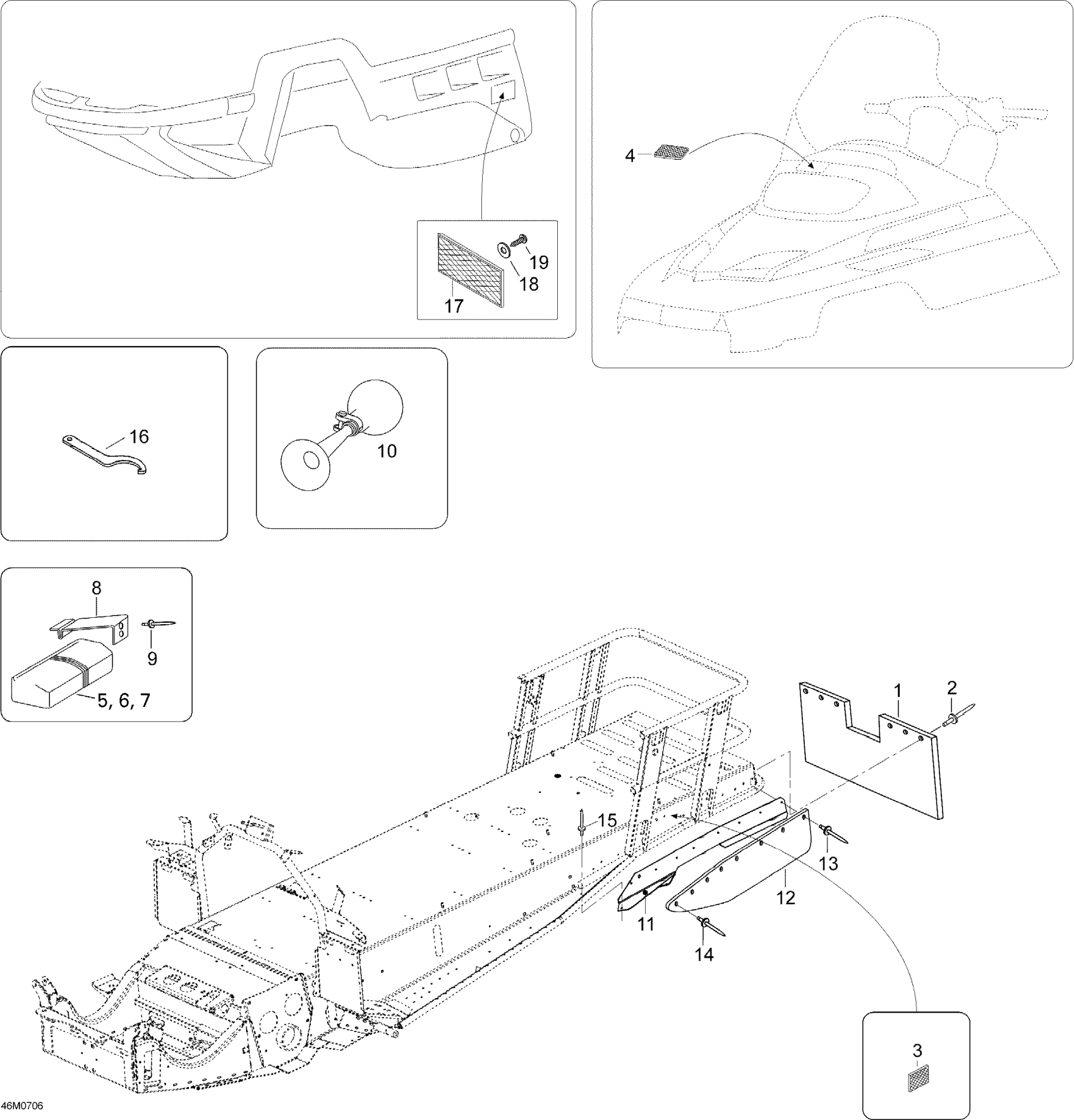

Ski-Doo Expedition TUV V800, 2007 Utilities Diagram
#
Description
Price
1
Snow guard This part replaces M538629.
538629
Unavailable
2
Black, Rivet
M36036
Unavailable
3
Reflector, Amber | Europe
M21121
Unavailable
4
REFLECTOR, WHITE - Call your local BRP dealership | Europe
M21060
Unavailable
5
TOOL SET - Call your local BRP dealership
605352219
Unavailable
6
TOOL BOX - Call your local BRP dealership
A50121179000
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
SPRING PLATE - Call your local BRP dealership
M5346728
Unavailable
11
LH SIDE SNOW GUARD - Call your local BRP dealership
605251248
Unavailable
11
RH SIDE SNOW GUARD - Call your local BRP dealership
605251249
Unavailable
12
Side Snowguard This part replaces M5142828.
5142828
Unavailable
13
RIVET - Call your local BRP dealership
M36097
Unavailable
14
Rivet *Rivet
M36891
Unavailable
15
Rivet
36005
Unavailable
16
ADJUSTMENT WRENCH - Call your local BRP dealership
529035582
Unavailable
17
REFLECTOR, AMBER - Call your local BRP dealership
414510200
Unavailable
18
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3
234451418
Unavailable
19
Screw
M40070
Unavailable
