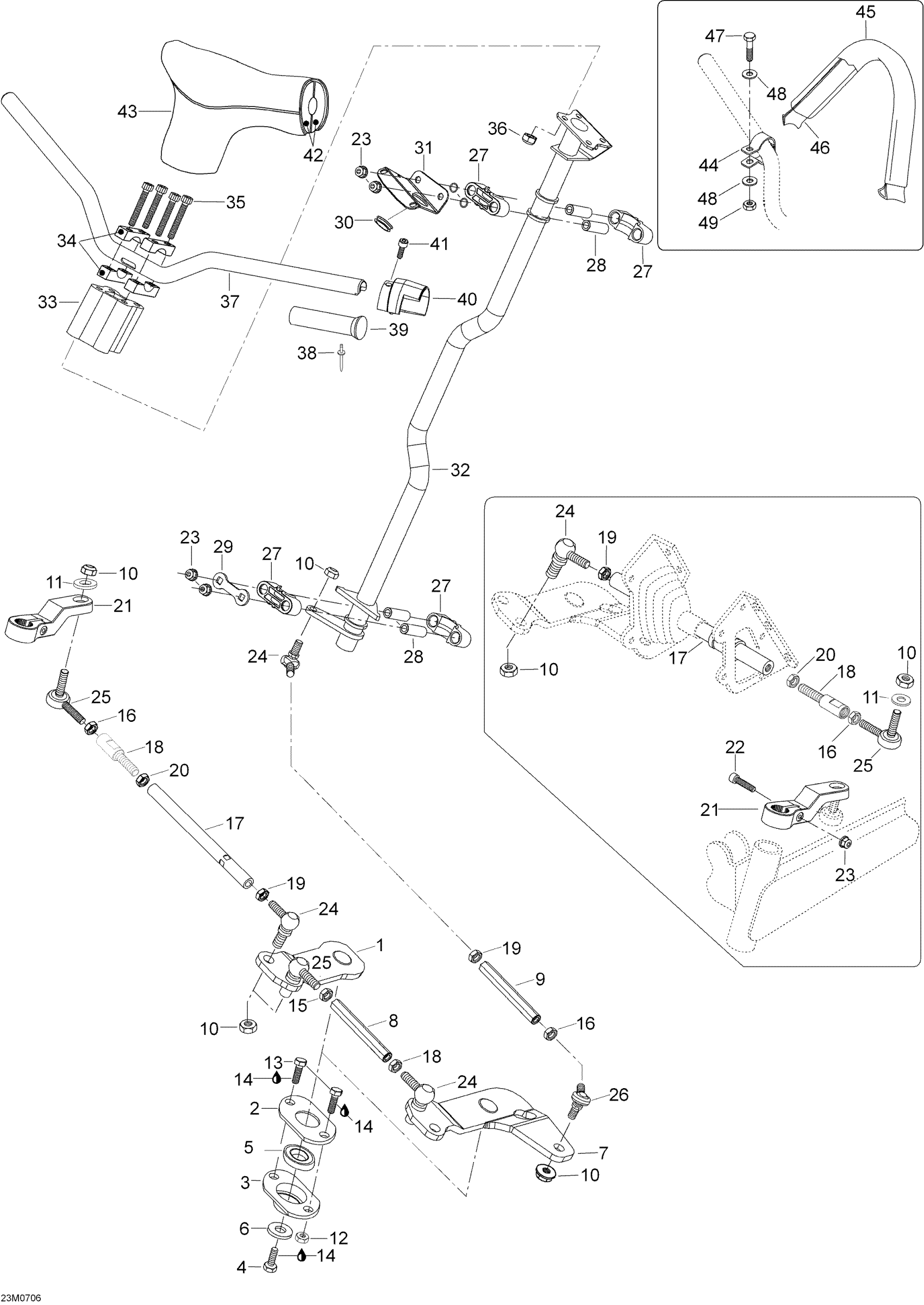

Ski-Doo Expedition TUV V800, 2007 Steering System Diagram

#

Description
Price

1

RH LEVER - Call your local BRP dealership

605352300

Unavailable

2

Cover

M5345380

Unavailable

3

Bearing Support

605350644

$37.28

4

Hex. Screw

M40337

Unavailable

5

Ball Bearing

293350115

$10.82

6

WASHER - Call your local BRP dealership

M5446279

Unavailable

7

LH LEVER - Call your local BRP dealership

605353380

Unavailable

8

SHORT TIE ROD - Call your local BRP dealership

605448308

Unavailable

9

UPPER TIE ROD - Call your local BRP dealership

605351468

Unavailable

10

Elastic Flange Nut M10

232501416

$1.43

11

WASHER M10 - Call your local BRP dealership

20005

Unavailable

12

Hex. Elastic Stop Nut M8

232581414

$0.54

13

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

RH NUT - Call your local BRP dealership

M33019

Unavailable

16

RH Threaded Hex. Jam Nut M10

732610010

$0.70

17

ROD_LINK - Call your local BRP dealership

605450794

Unavailable

18

ADJUSTER - Call your local BRP dealership

605450793

Unavailable

19

LH NUT - Call your local BRP dealership

M33017

Unavailable

20

LH Threaded Hex. Jam Nut M10

250100016

$0.70

21

Steering Arm

M5348261

Unavailable

22

Allen Screw M8 X 45

M40828

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

25

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

26

BALL JOINT RH - Call your local BRP dealership

605450895

Unavailable

27

Housing Half

506150400

$7.09

28

Housing Bushing

506150500

$7.27

29

Stopper Plate

506150600

$4.03

30

Grommet This part replaces M28022.

28022

$13.37

31

Bracket

605351973

Unavailable

32

Main Tube

605153411

Unavailable

33

EXTENSION 90 MM - Call your local BRP dealership

605351275

Unavailable

34

Support Guidon *Support-Steer.

M548448

Unavailable

35

Allen Screw M8 X 130

M40209

Unavailable

36

NUT - Call your local BRP dealership

M33027

Unavailable

37

HANDLE BAR - Call your local BRP dealership

605251368

$82.81

38

Rivet

36005

$1.96

39

Grip | WAKE This part replaces M5340464.

506152483

$11.31

40

ADAPTATOR - Call your local BRP dealership

506151566

Unavailable

41

Allen Screw M8 X 20

M40390

Unavailable

42

FOAM, FRONT - Call your local BRP dealership

605252110

Unavailable

42

FOAM, REAR - Call your local BRP dealership

605252111

Unavailable

43

STEERING COVER - Call your local BRP dealership

605254571

Unavailable

44

Black Support Plate

506152536

$8.34

45

Strap Ass'y | Package XMR

506152115

$41.76

46

Strap Ass'y | Package XMR

506152115

$41.76

47

Hex. Screw M6 X 25

207162544

$1.01

48

Flat Washer 6 mm

234061410

$1.19

49

Elastic Stop Nut M6

232561414

$1.78
