- Expedition TUV V800, 2007
Drive System

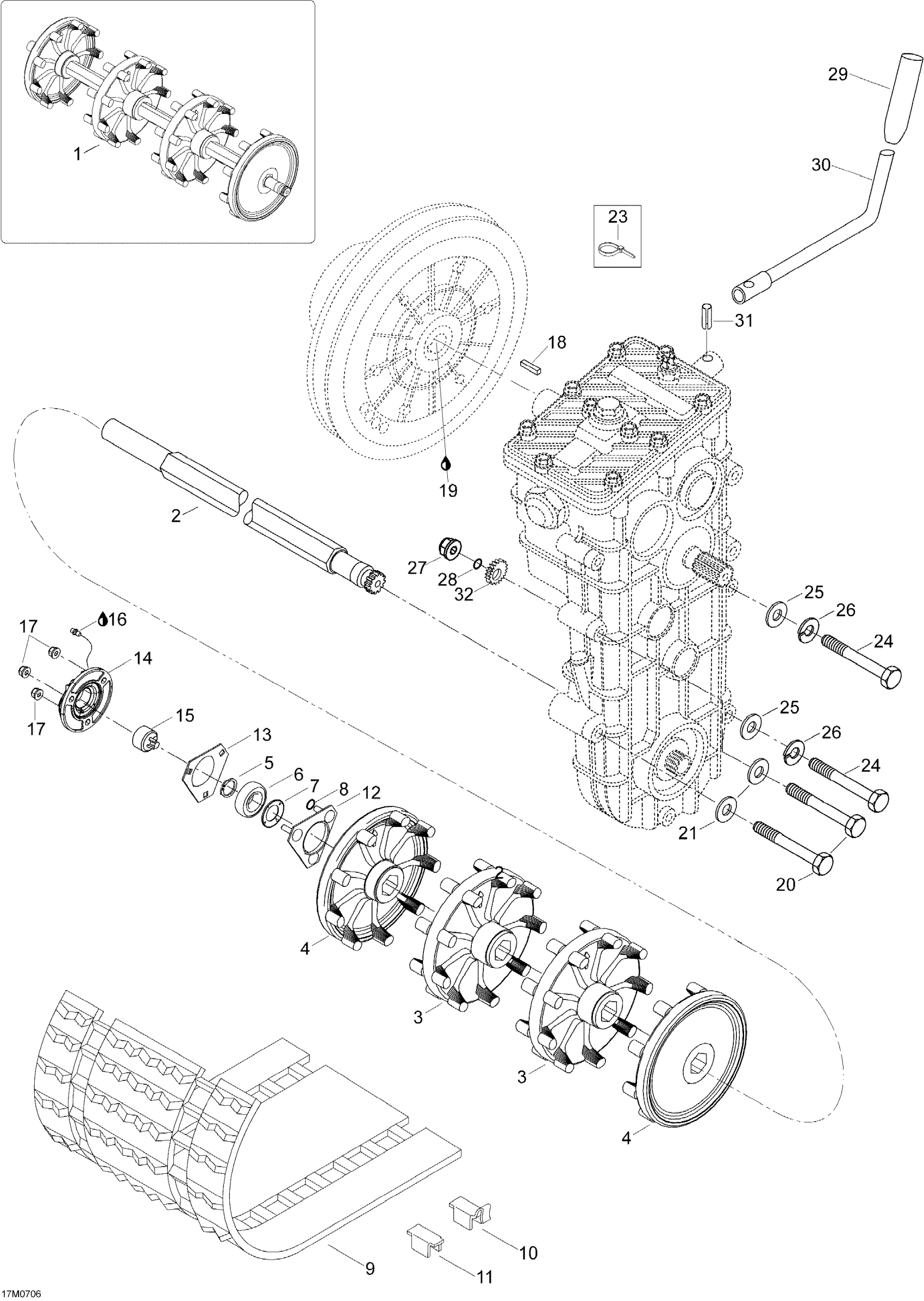

Ski-Doo Expedition TUV V800, 2007 Drive System Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
DRIVE AXLE - Call your local BRP dealership
605253104
Unavailable
4
HALF SPROCKET - Call your local BRP dealership
415067400
Unavailable
5
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
6
Ball Bearing
293350060
Unavailable
7
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
9
Track ass'y | Includes 10 to 12 This part replaces M13070.
13070
Unavailable
10
CLEAT-GUIDE - Call your local BRP dealership
M5318323
Unavailable
11
CLEAT - Call your local BRP dealership
M5318322
Unavailable
12
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
13
FLANGE - Call your local BRP dealership
501025000
Unavailable
14
Flange, Speedo
504152173
Unavailable
15
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
16
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
293550033
Unavailable
17
Hex. Flange Elastic Nut M8
233281414
Unavailable
18
KEY - Call your local BRP dealership This part replaces M418763.
619690074
Unavailable
19
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
20
Screw
M40089
Unavailable
21
Flat Washer 8 mm
234081410
Unavailable
24
Screw M8 X 80
M40012
Unavailable
26
Lock Washer 8 mm
234181401
Unavailable
27
Hex. Flange Elastic Nut M8
233281414
Unavailable
28
O-RING - Call your local BRP dealership
506151140
Unavailable
29
Shift button This part replaces M28247.
28247
Unavailable
30
SHIFT HANDLE - Call your local BRP dealership
605350153
Unavailable
31
PIN SPRING - Call your local BRP dealership
M41007
Unavailable
32
TOOLS - Call your local BRP dealership
605454017
Unavailable
