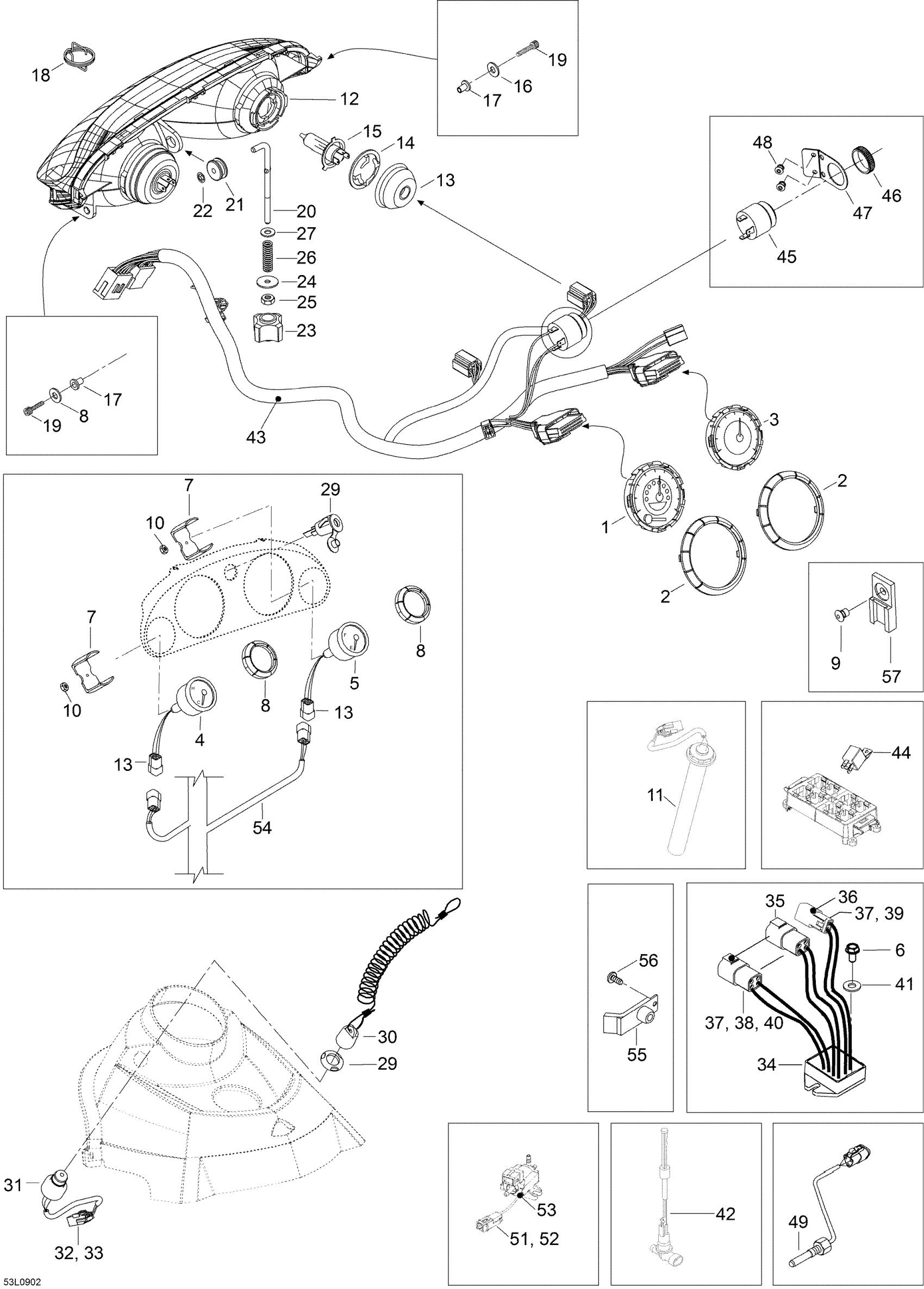

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

$331.51

2

Gauge Ring This part replaces 515176242.

515179005

$12.69

3

TACHOMETER - Call your local BRP dealership

515176478

$129.97

4

Temperature Gauge

515176214

Unavailable

5

FUEL GAUGE - Call your local BRP dealership

515176215

Unavailable

6

Screw

M40322

$1.62

7

HOLDER CASE - Call your local BRP dealership

515176235

$7.09

8

RING GAUGE - Call your local BRP dealership

515176216

$8.68

9

Rivet

36005

$2.02

10

Elastic Stop Nut M4

232541414

$0.48

11

FUEL SENSOR - Call your local BRP dealership

605354909

Unavailable

12

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$288.43

13

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

14

BULB HOLDER - Call your local BRP dealership

515176385

$9.57

15

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

16

Washer 5,3 mm

20008

$0.72

17

NUT M5 - Call your local BRP dealership

250100018

$6.45

18

SPRING - Call your local BRP dealership

M5447238

Unavailable

19

Screw M5X35

M40235

Unavailable

20

ADJUSTER ROD - Call your local BRP dealership

605450023

$24.58

21

Grommet - Call your local BRP dealership

415100800

$3.97

22

Safety Washer

36084

$1.55

23

Handle - Call your local BRP dealership

515175548

$5.57

24

WASHER - Call your local BRP dealership

M20038

$1.37

25

Elastic Stop Nut M6

232561414

$1.55

26

SPRING - Call your local BRP dealership

415100600

$3.17

27

Flat Washer 6 mm

234061410

$1.04

28

DC Outlet

710001248

$31.17

29

Safety Nut (DESS Switch)

278002963

$2.72

30

DESS

515178284

$81.51

31

DESS Switch

515177249

$106.12

32

Male Terminal

515175232

$1.49

33

Male Housing, 3 Circuits

515175494

$15.35

34

Voltage Regulator | Includes 32 to 38

515176243

$345.35

35

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

$29.20

36

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

37

Male Terminal

515175568

$7.48

38

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

$2.86

39

Male Lock, 2 Circuits

278001672

$3.02

40

Sealing Cap

293000052

$2.55

41

Flat Washer 6 mm

234062410

$0.64

42

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

43

HARNESS - Call your local BRP dealership

605356028

$523.05

44

Relais *Relay This part replaces 410113604.

515177672

$37.67

45

HORN - Call your local BRP dealership

515176035

$83.05

46

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

47

Holder

M5447941

$13.71

48

Rivet

36005

$2.02

49

Temperature Sensor

515176132

Unavailable

50

HEATER ELEMENT SUPPORT ASS'Y - Call your local BRP dealership | Includes 50 to 53

515176653

Unavailable

51

Male Terminal Housing, 2 Circuits

515175654

$7.48

52

Male Terminal

515175232

$1.49

53

Heating Element Bracket

512059809

Unavailable

54

HARNESS ASS'Y - Call your local BRP dealership

605354914

$45.35

55

Pressure Sensor

270600040

$157.92

56

Screw Plastofast Mp 6 X 16 Pz

293700048

$2.06

57

Clip

270000141

$8.33
