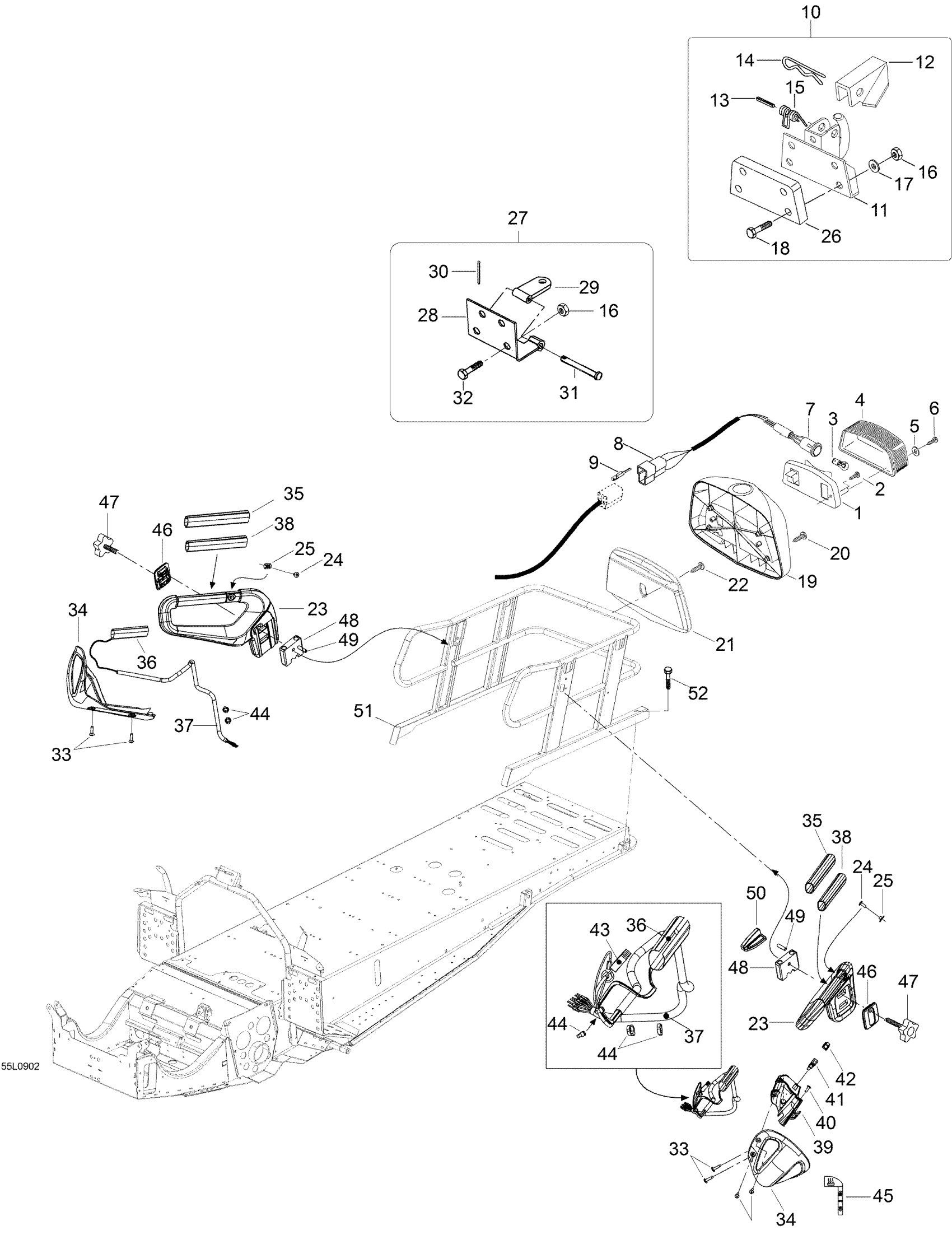

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 Luggage Rack Diagram

#

Description
Price

1

LAMP HOUSING - Call your local BRP dealership

515175397

$44.99

2

Screw 4.8 X 45

M40207

$5.40

3

Bulb

520000758

$7.49

4

Lens

414513700

Unavailable

5

Washer - Call your local BRP dealership

414516400

Unavailable

6

Phillips Tapping Screw M3.9 X 25

209632540

$0.98

7

Adapter

515175852

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Connector AMP 926882-3 - Call your local BRP dealership

605642629

Unavailable

10

HITCH ASS'Y - Call your local BRP dealership

5344156

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

HITCH PROTECTOR - Call your local BRP dealership

M5440767

$18.43

13

Pin

41012

$5.22

14

Hair pin

41029

$4.28

15

SPRING - Call your local BRP dealership | Model- EUROPE This part replaces M545693.

545693

$22.28

16

Hex. Elastic Stop Nut M8

232581414

$0.47

17

Flat Washer 8 mm

234081410

$0.69

18

Hex. Screw M8 X 50

207085044

$1.25

19

MOLD TAIL LAMP - Call your local BRP dealership

605251392

Unavailable

20

Screw 4.8 X 25

M40206

Unavailable

21

BASE - Call your local BRP dealership

605251963

Unavailable

22

Screw

M40322

$1.62

23

RH HANDLE - Call your local BRP dealership

510005865

$107.66

23

LH Handle

510005862

$120.74

24

Torx Truss Screw M6 X 16

250000721

$1.39

25

Nut Welded, M6

293100003

$6.32

26

SPACER - Call your local BRP dealership

605351510

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$77.66

29

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

30

PIN-RETAINER - Call your local BRP dealership | North America

560309200

$5.60

31

Cotter Pin

41031

$6.26

32

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

33

Screw 25MM

250000961

$2.38

34

RH Deflector

510004415

$26.12

34

LH Deflector

510004416

$26.12

35

Handle Grip

510004449

$10.65

36

Heater

515176393

$59.20

37

Was 515175506 Tubing

219704426

$136.12

38

HANDLE REINFORFORCEMENT - Call your local BRP dealership

510004709

$29.97

39

Switch Housing

510004566

$11.94

40

Torx Screw K50 X 16

250000720

$1.39

41

Rocker Switch

510004413

$8.57

42

Switch Protector

510004414

$7.37

43

LH Handle Harness

515176241

Unavailable

44

Tie-Rap 180 mm

414115200

$0.09

45

Handle Heater Decal

516002835

$10.35

46

Passenger Handle Trim

510006602

$11.71

47

HANDLE M8 X 35 - Call your local BRP dealership

605640015

$34.58

48

HANDLE LINK - Call your local BRP dealership

510004530

$23.82

49

PIN SPRING - Call your local BRP dealership

M41007

Unavailable

50

GRIP - Call your local BRP dealership

510004419

Unavailable

51

LUGGAGE RACK - Call your local BRP dealership

605156016

$413.82

52

Screw

M40316

$8.51
