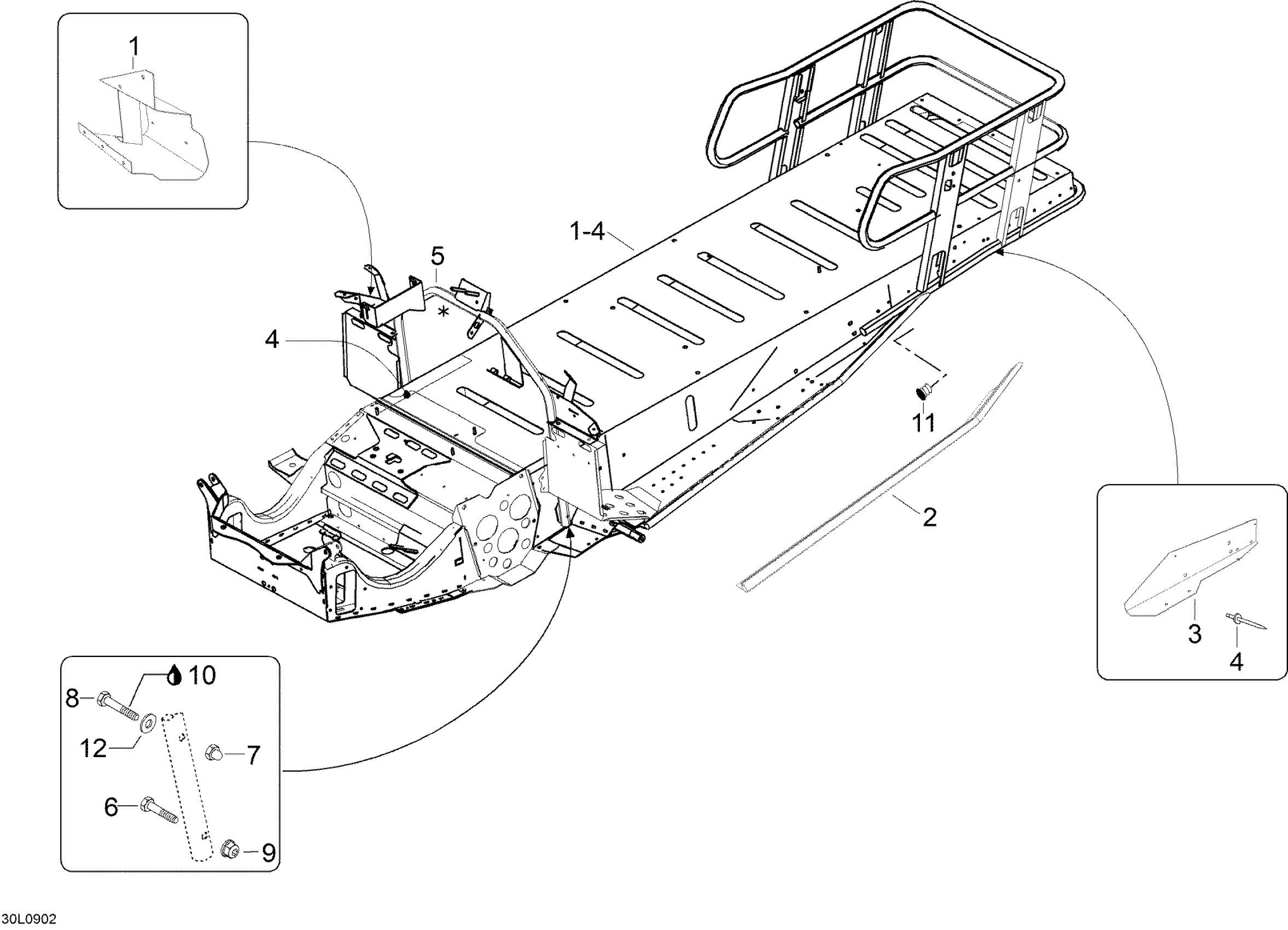

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 Frame Diagram

#

Description
Price

—

Frame Ass'y | Includes 1 to 4

605154553

Unavailable

1

RH Toe Rest

605350839

Unavailable

1

LH TOE REST - Call your local BRP dealership

605350840

$29.20

2

LH REINFORCEMENT - Call your local BRP dealership

605250773

$46.89

2

RH REINFORCEMENT - Call your local BRP dealership

605250774

$46.89

3

LH CONER SUPPORT - Call your local BRP dealership

605350845

$19.20

3

RH Coner Support

605350846

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Steering Support

605151693

Unavailable

6

Hex. Screw

M40003

Unavailable

7

Hex. Nut M6

232061414

$0.44

8

Hex. Screw M6 X 40

207064044

$1.48

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Loctite 243, 10 ml

293800060

$20.77

11

Plug

M28210

Unavailable

12

Flat Washer 6 mm

234061410

$1.04
