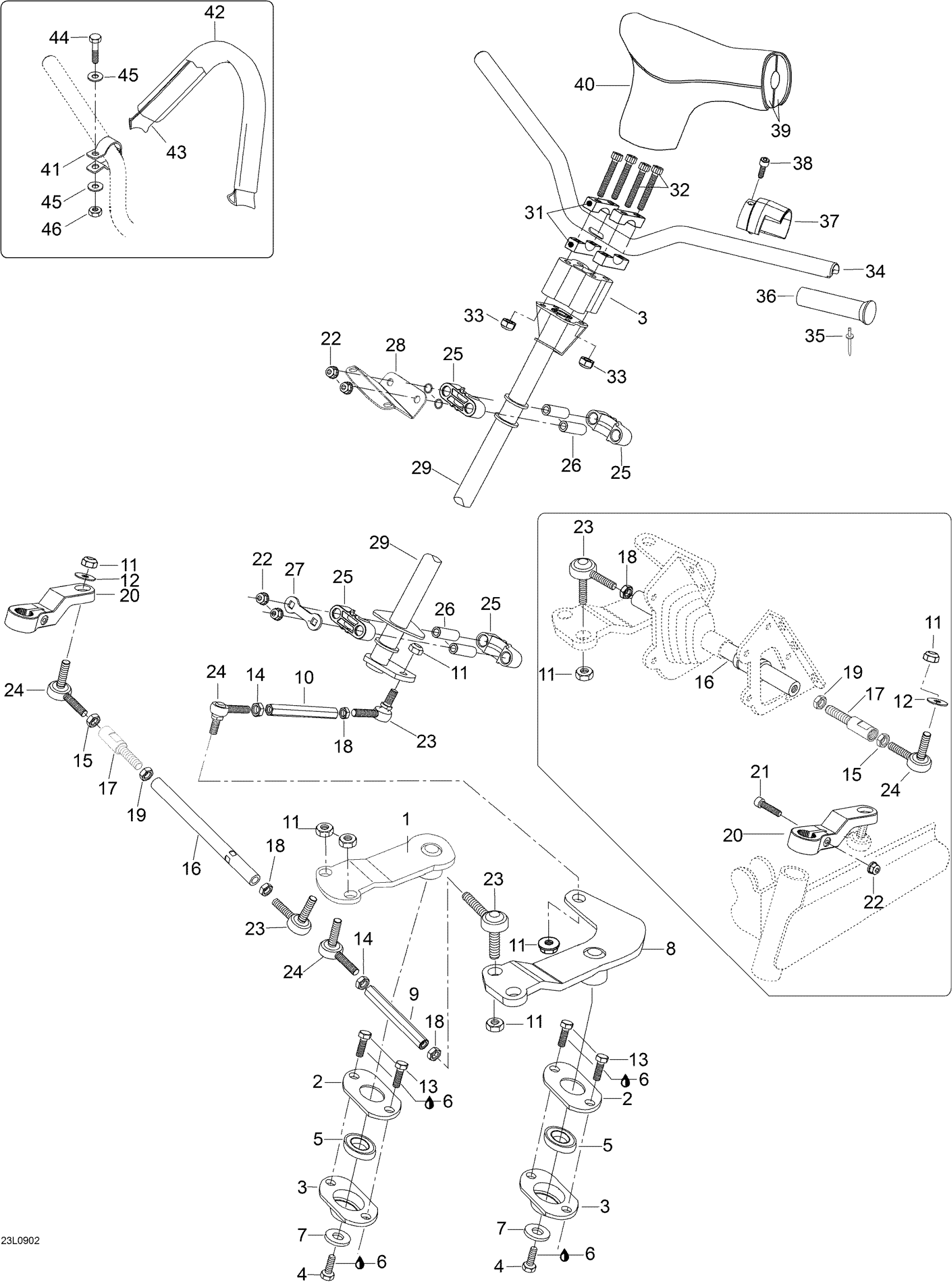

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 Steering Diagram

#

Description
Price

1

LH WELDED LEVER - Call your local BRP dealership

605348403

$73.82

2

Cover

M5345380

Unavailable

3

Bearing Support

605350644

$38.43

4

Hex. Screw

M40337

Unavailable

5

Ball Bearing

293350115

$11.15

6

Loctite 243, 10 ml

293800060

$20.77

7

WASHER - Call your local BRP dealership

M5446279

Unavailable

8

LH LEVER - Call your local BRP dealership

605351764

Unavailable

9

SHORT TIE ROD - Call your local BRP dealership

605448308

Unavailable

10

TIE-ROD - Call your local BRP dealership

605450220

$28.43

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

WASHER M10 - Call your local BRP dealership

20005

Unavailable

13

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

14

RH NUT - Call your local BRP dealership

M33019

Unavailable

15

RH Threaded Hex. Jam Nut M10

732610010

$0.72

16

ROD_LINK - Call your local BRP dealership

605450794

Unavailable

17

ADJUSTER - Call your local BRP dealership

605450793

Unavailable

18

LH NUT - Call your local BRP dealership

M33017

Unavailable

19

LH Threaded Hex. Jam Nut M10

250100016

$0.72

20

Steering Arm

M5348261

Unavailable

21

Allen Screw M8 X 45

M40828

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

24

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

25

Housing Half

506150400

$7.31

26

Housing Bushing

506150500

$7.49

27

Stopper Plate

506150600

$4.15

28

CONSOLE HOLDER - Call your local BRP dealership

605352322

Unavailable

29

MAIN TUBE - Call your local BRP dealership

605251694

Unavailable

30

EXTENSION - Call your local BRP dealership

605349584

Unavailable

31

Support Guidon *Support-Steer.

M548448

Unavailable

32

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

M40124

$6.45

33

Hex. Elastic Stop Nut M8

232581414

$0.47

34

HANDLE BAR - Call your local BRP dealership

605251368

$85.35

35

Rivet

36005

$2.02

36

Grip | WAKE This part replaces M5340464.

506152483

$9.85

37

ADAPTATOR - Call your local BRP dealership

506151566

$9.20

38

Allen Screw M8 X 20

M40390

Unavailable

39

FOAM, FRONT - Call your local BRP dealership

605252110

$36.89

39

FOAM, REAR - Call your local BRP dealership

605252111

Unavailable

40

STEERING COVER - Call your local BRP dealership

605254571

$148.43

41

Black Support Plate

506152536

$8.60

42

Strap Ass'y | Package XMR

506152115

$43.05

43

Strap Ass'y | Package XMR

506152115

$43.05

44

Hex. Screw M6 X 25

207162544

$1.05

45

Flat Washer 6 mm

234061410

$1.04

46

Elastic Stop Nut M6

232561414

$1.55
