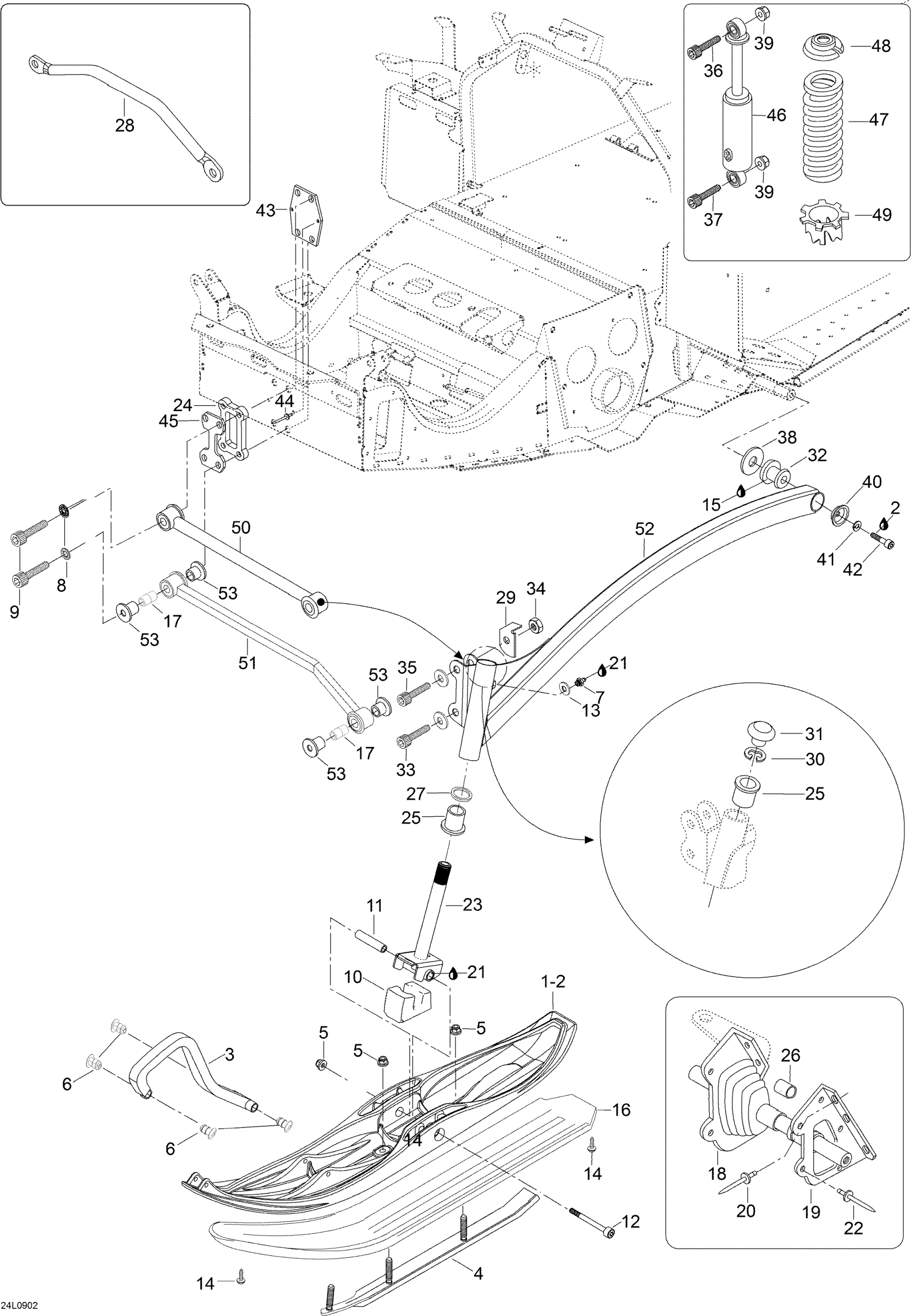

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 Front Suspension And Ski Diagram

#

Description
Price

1

Ski | Europe models

505073034

$233.05

2

Loctite 243, 10 ml

293800060

$20.77

3

Black, Handle

505070963

$35.35

4

CARBIDE SKI RUNNER ASS'Y - Call your local BRP dealership

619400006

Unavailable

5

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

$1.49

6

Retainer 17mm long

505071812

$4.43

7

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

Unavailable

8

Lock Washer

M20074

Unavailable

9

SCREW ALLEN M12 X 75 - Call your local BRP dealership

M40370

Unavailable

10

SKI STOPPER - Call your local BRP dealership

605348458

Unavailable

11

Spacer

506133300

$19.97

12

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$12.52

13

WASHER - Call your local BRP dealership

M20007

$12.11

14

PLASTOFAST SCREW 6X18 - Call your local BRP dealership

605640019

Unavailable

15

Grease, Super Lube

293550030

$24.67

16

Ski Liner

605153964

$109.99

17

BUSHING - Call your local BRP dealership

605450024

$19.20

18

RH Tie Rod Cap

570024800

Unavailable

18

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

19

RH COVER PLATE - Call your local BRP dealership

605350120

$15.32

19

LH COVER PLATE - Call your local BRP dealership

605350119

$13.71

20

Black Rivet

36037

$1.48

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rivet This part replaces M36009.

36009

$1.06

23

SKI LEG - Call your local BRP dealership

505072001

$156.12

24

Spacer 17.5

605350191

Unavailable

25

Cushion

505070003

$7.40

26

BUSHING - Call your local BRP dealership

572036500

Unavailable

27

WASHER - Call your local BRP dealership

505070004

Unavailable

28

SUPPORT SHAFT - Call your local BRP dealership

605352875

$29.20

29

RH Plate Locking

605448861

$17.66

29

LH Plate Locking

605448862

$18.43

30

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

31

Cap

572091300

$8.97

32

DAMPER - Call your local BRP dealership

570062200

Unavailable

33

Screw Allen M12 X 55

M40371

Unavailable

34

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

35

Allen Screw M12 X 60

M40306

$3.85

36

Screw M10 X 55

M40837

$2.60

37

Socket Head Screw. M10 X 50

M40136

$5.40

38

WASHER - Call your local BRP dealership

503146700

$4.42

39

Elastic Locking Nut M10 X 1.5

233601416

$1.68

40

Cup | Package Hunter

705007171

$6.18

41

Lock Washer 8 mm

234181401

$0.89

42

Screw Allen M8 X 20

M40810

Unavailable

43

PLATE - Call your local BRP dealership

605353972

$19.20

44

Rivet

36005

$2.02

45

MIDDLE PLATE - Call your local BRP dealership

605450900

$15.06

46

Shock This part replaces M23183.

23183

$238.43

47

White Spring

M25067

Unavailable

48

Spring Seat

230076

Unavailable

49

CAM - Call your local BRP dealership

M230078

Unavailable

50

UPPER ARM ASSY - Call your local BRP dealership

605350022

Unavailable

51

LOWER ARM - Call your local BRP dealership

605252224

$136.12

52

Swing Arm Weld RH

605251768

$267.66

52

SWING ARM WELD LH B - Call your local BRP dealership

605251767

$267.66

53

CUSHION - Call your local BRP dealership

506149100

Unavailable
