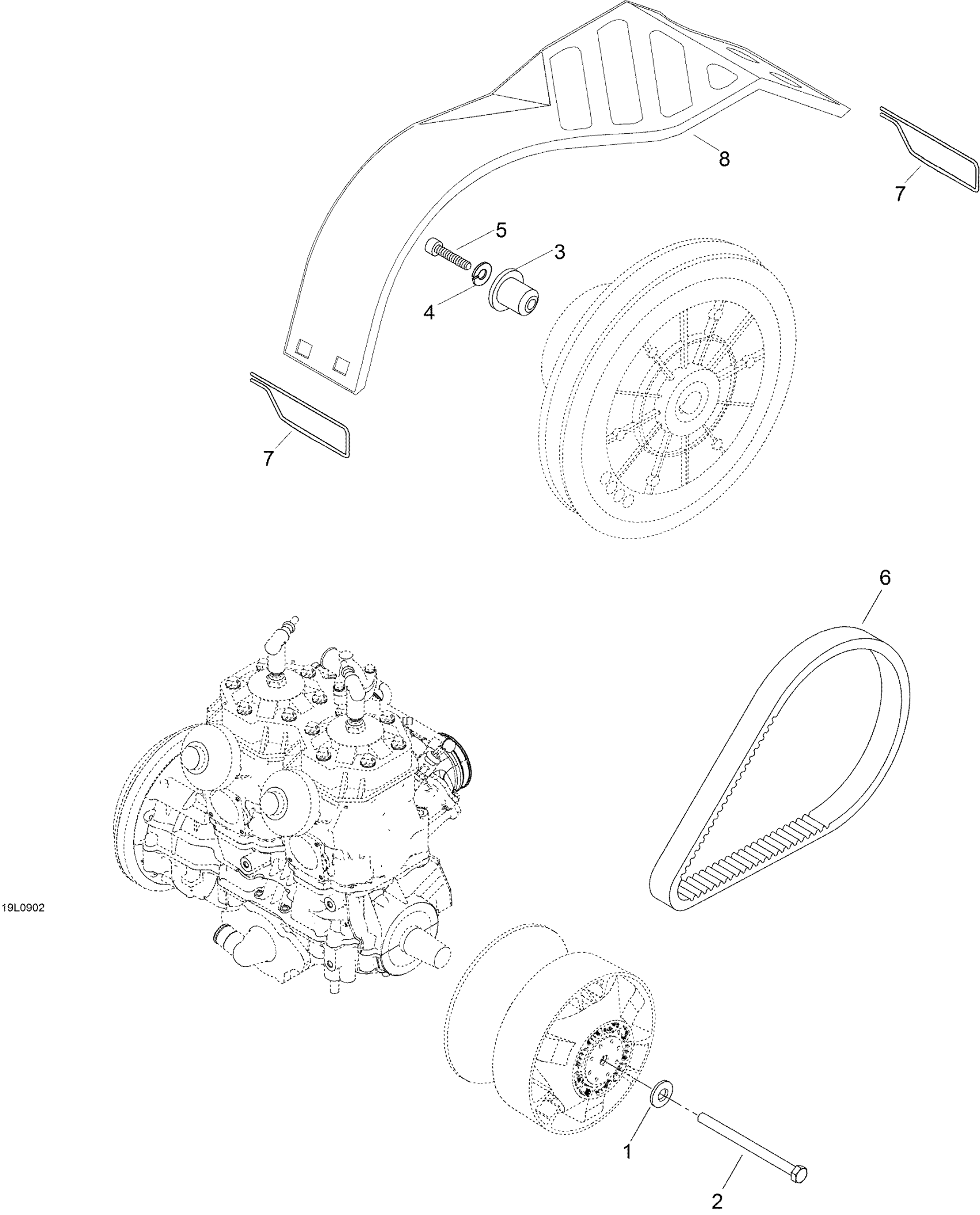

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 Pulley System Diagram

#

Description

Price

1

Conical Spring Washer

M20110

Unavailable

2

DRIVE PULLEY BOLT - Call your local BRP dealership

417300296

$30.74

3

Sleeve This part replaces M5443201.

5443201

Unavailable

4

Lock Washer 8 mm

234181401

$0.89

5

Socket Head Screw M8 X 45

M40286

$5.40

6

Drive Belt

605348425

$154.58

7

Pin This part replaces M5442726.

5442726

$7.31

8

BELT QUARD - Call your local BRP dealership

605152654

Unavailable
