- Expedition TUV 600 H.O. SDI, 2009
Drive System

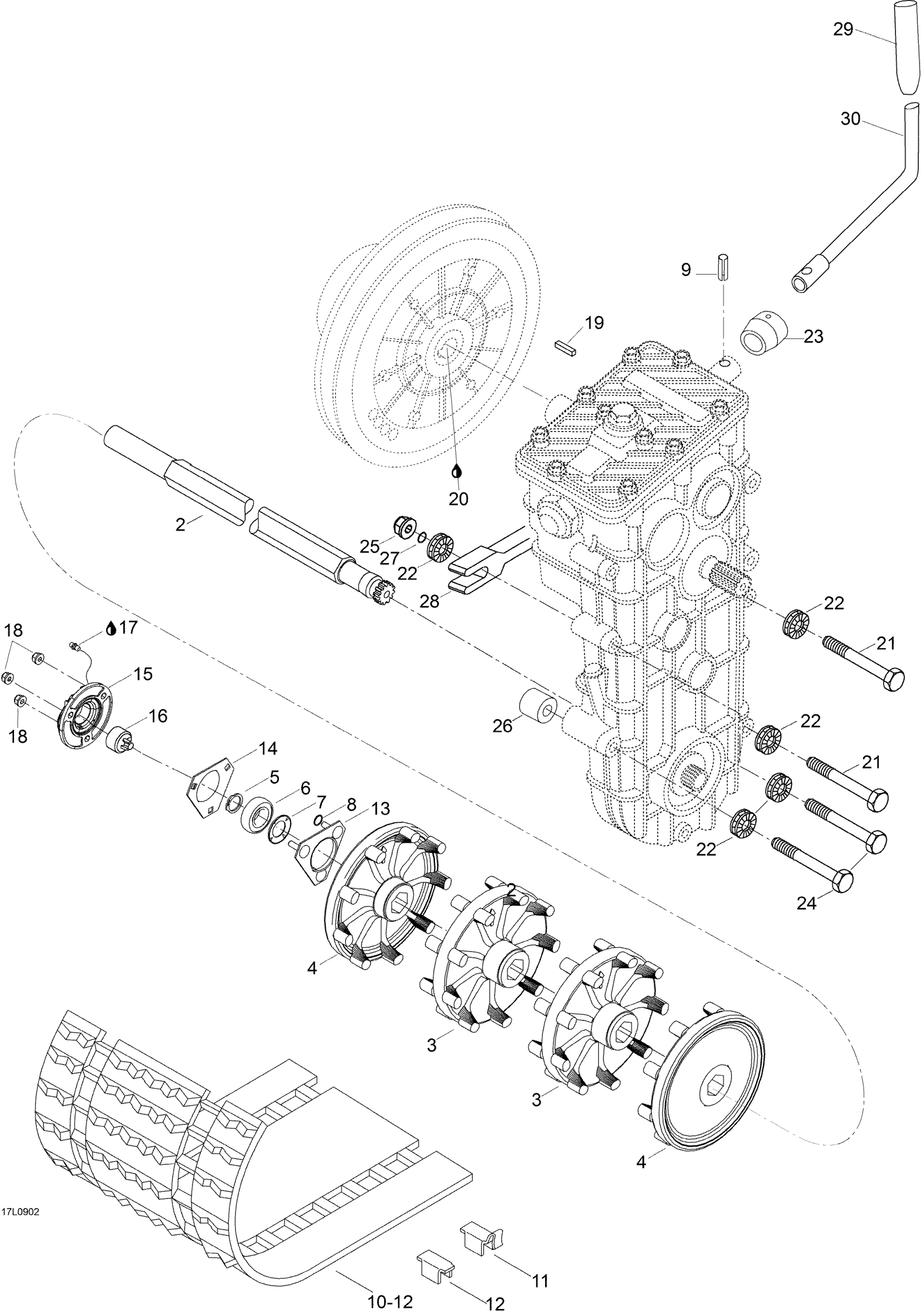

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 Drive System Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
DRIVE AXLE - Call your local BRP dealership
605249455
Unavailable
5
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
7
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
9
Pin Spring
M41008
Unavailable
11
CLEAT-GUIDE - Call your local BRP dealership
M5318323
Unavailable
12
CLEAT - Call your local BRP dealership
M5318322
Unavailable
14
FLANGE - Call your local BRP dealership
501025000
Unavailable
15
Flange, Speedo
504152173
Unavailable
16
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
20
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
21
Hex. Screw M8 X 110
M40291
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
SLEEVE - Call your local BRP dealership
M5446699
Unavailable
30
SHIFT HANDLE - Call your local BRP dealership
605350153
Unavailable
