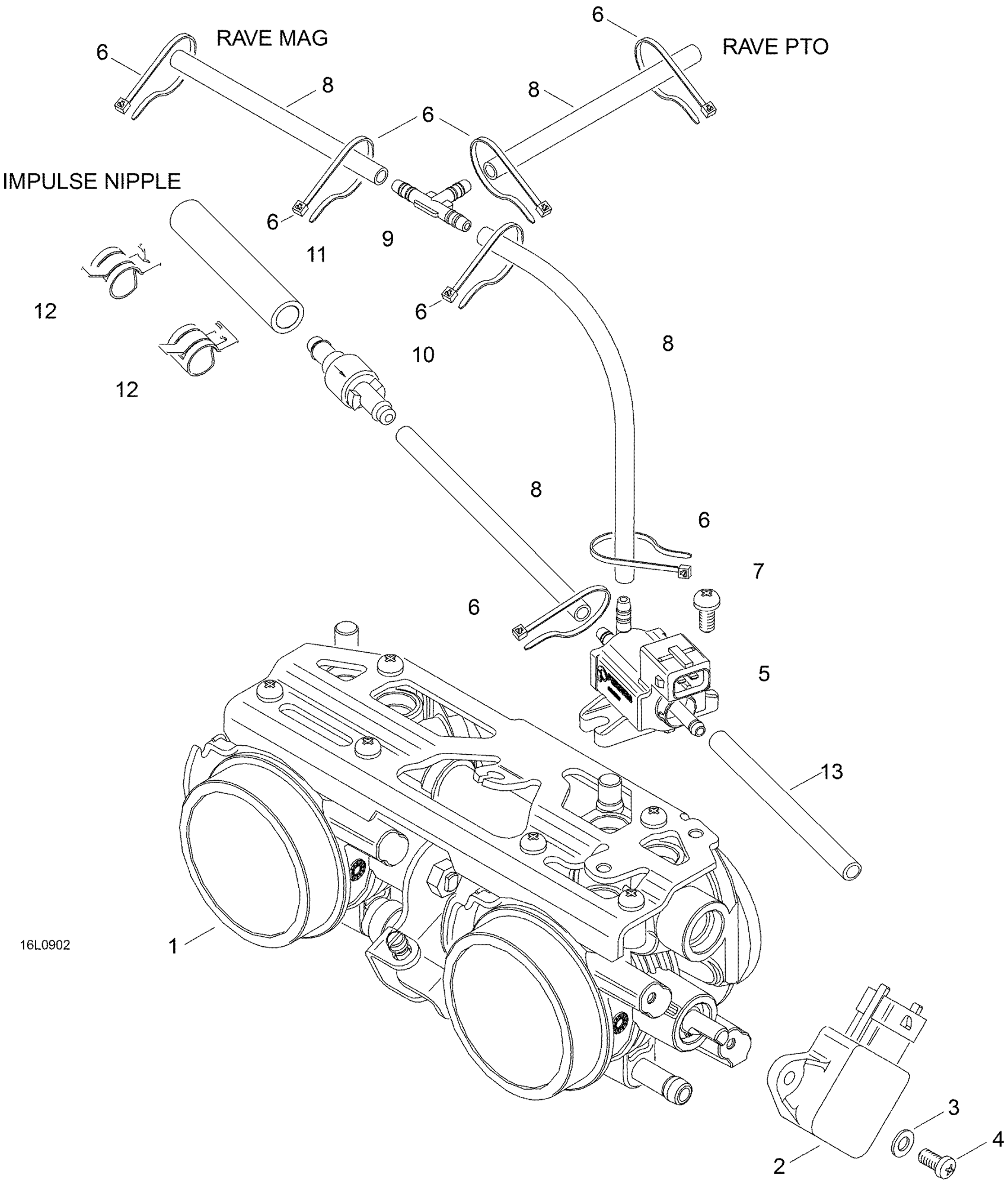

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 Throttle Body Diagram

#

Description

Price

1

THROTTLE BODY - Call your local BRP dealership

420892130

Unavailable

2

Position Sensor

420866120

$77.97

3

Flat Washer 4 mm, Stainless

234041600

$0.91

4

Phillips Screw M4 X 16

208641660

$0.74

5

Solenoid Valve

270600005

$45.49

6

Tie Wrap 94 mm | 4X4

293750001

$0.83

7

SCREW M5 X 10 - Call your local BRP dealership

420940011

Unavailable

8

High Pressure Air Hose, 180 mm

420660571

$12.18

9

T-Fitting

293710068

$6.59

10

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

11

PRESSURE LINE - Call your local BRP dealership

420660562

Unavailable

12

Norma Spring Clamp

293650214

$14.90

13

High Pressure Air Hose, 180 mm

420660571

$12.18
