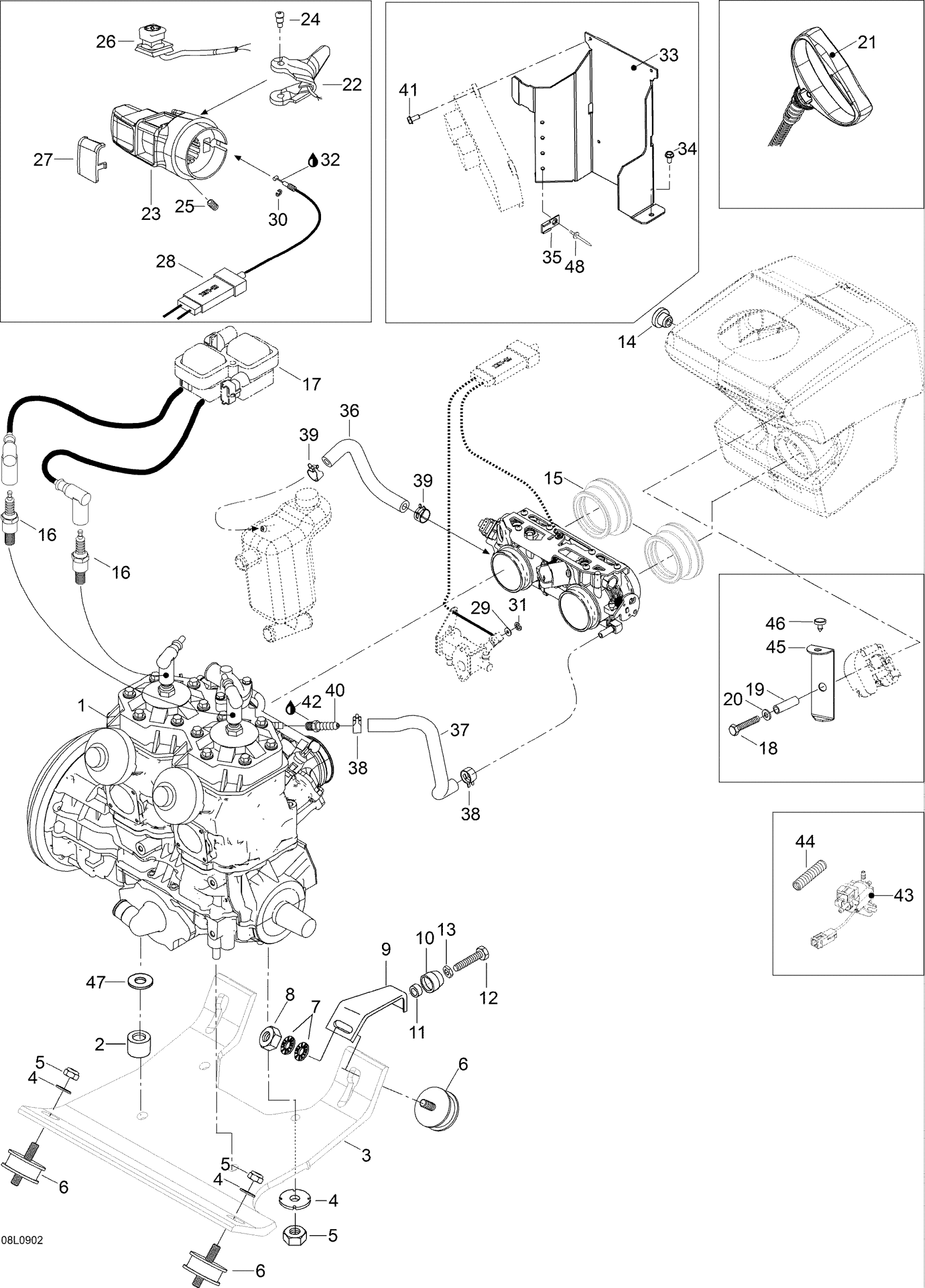

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

SLEEVE - Call your local BRP dealership

M5446347

$13.17

3

Engine Support

605251437

Unavailable

4

Lock Washer

512056700

$3.11

5

Elastic Locking Nut M10 X 1.5

233601416

$1.68

6

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

7

Lock Washer D10

20068

$1.97

8

Hex. Nut M10 X 1.5

232006414

$1.11

9

Support

605352447

Unavailable

10

SLEEVE - Call your local BRP dealership

605449240

$29.20

11

Rubber Washer

M2846014

Unavailable

12

Hex. Screw M8 X 25

M40121

$3.08

13

NUT - Call your local BRP dealership

M33003

Unavailable

14

GROMMET - Call your local BRP dealership

570065500

$10.74

15

INTAKE ADAPTOR - Call your local BRP dealership

605351756

Unavailable

16

Spark Plug NGK BR8ECS

512060029

$9.70

17

Ignition Coil

278001546

$129.32

18

SCREW M6 X 45 - Call your local BRP dealership

M40084

$2.92

19

SPACER - Call your local BRP dealership

512059812

$9.38

20

Lock Washer M6, Black

234161471

$0.52

21

Starter Grip

572084400

$14.54

22

Throttle Handle

512059481

$72.28

23

THROTTLE HOUSING - Call your local BRP dealership

512059763

$23.82

24

Flange Screw

732601143

$4.02

25

Socket Set Screw M8 X 10

414440800

$4.00

26

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

27

Switch Cover

572100901

$14.54

28

THROTTLE CABLE - Call your local BRP dealership

512059362

Unavailable

29

Flat Washer 8 mm, Nylon

234081100

$1.00

30

Circlip

414753500

$0.59

31

Circlip

M31038

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

33

SUPPORT PLATE, ECU - Call your local BRP dealership

605353805

$36.89

34

SCREW-M6X12 - Call your local BRP dealership

M40327

$1.09

35

Clip

270000141

$8.33

36

Was 509000407 Hose 8 mm

219704420

$40.27

37

HOSE-FORMED - Call your local BRP dealership This part replaces 512059990.

605354601

Unavailable

38

Spring Clamp

414655700

$0.68

39

Tridon Gear Clamp

293650170

$1.74

40

Male Connector 1/8"-27 NPT

512060196

Unavailable

41

Hex. Forming Screw M5 X 16

210251650

$0.92

42

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

43

Heating Element Bracket

512059809

Unavailable

44

Tubing

M28004

Unavailable

45

SUPPORT, HOOD - Call your local BRP dealership

605352895

$24.58

46

Plug

605452114

$8.60

47

WASHER M10 - Call your local BRP dealership

20005

Unavailable

48

Rivet

36005

$2.02
