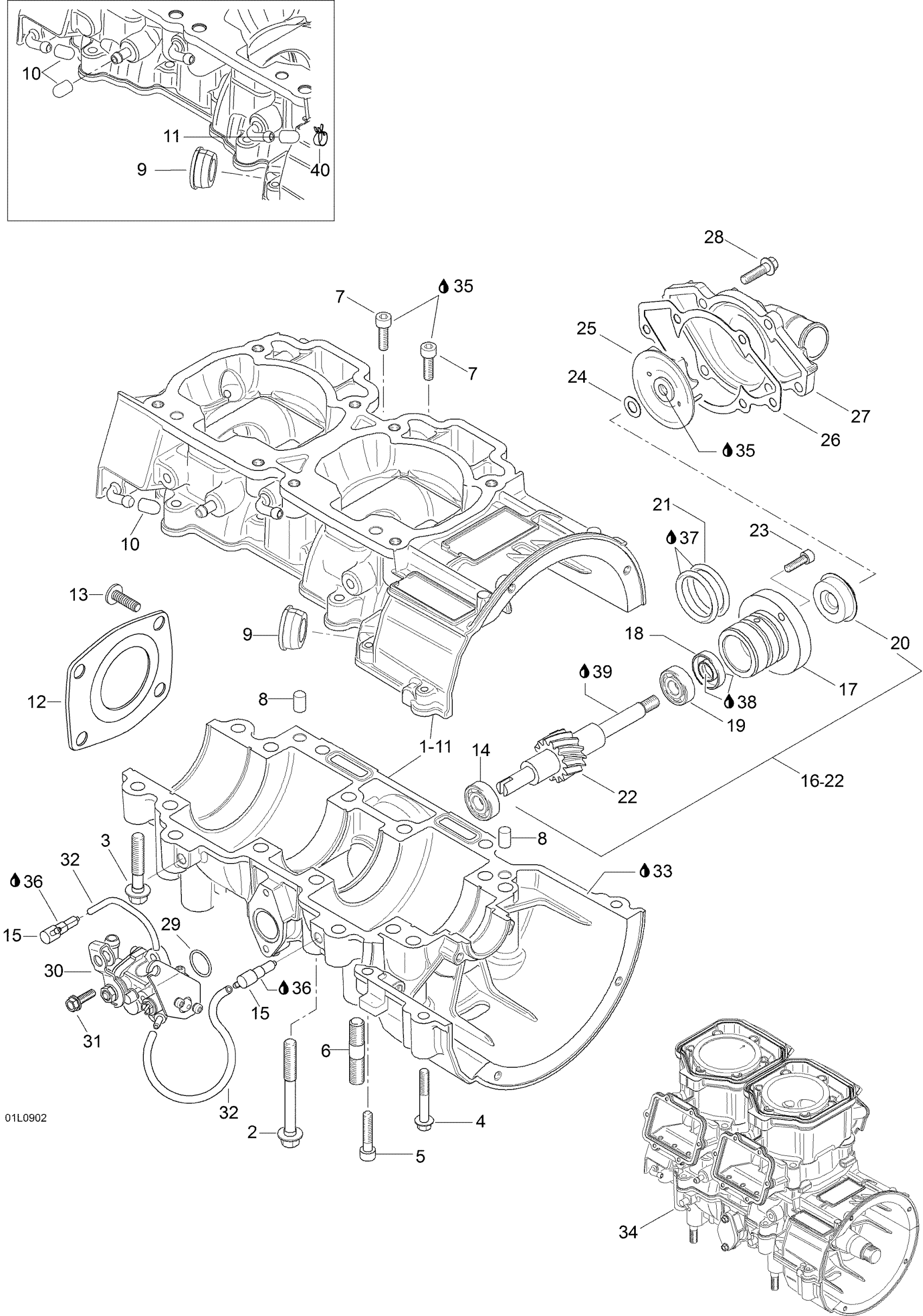

Ski-Doo Expedition TUV 600 H.O. SDI, 2009 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 11

420889613

Unavailable

2

Hex. Collar Screw M8 X 75

420640836

$1.94

3

Hex. Collar Screw M8 x 45

420640432

$1.94

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.28

5

Socket Head Screw M6 X 30

205063044

$1.42

6

STUD M10 X 29 - Call your local BRP dealership

420641834

Unavailable

7

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.25

8

Center Pin 8 X 12

420632010

$3.07

9

Cable Grommet

420860965

$13.58

10

Cap

420960770

$4.00

11

Oil Seal Cover

420812422

$14.54

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Screw M6 X 20

420941436

$2.37

14

Ball Bearing

420232100

$15.57

15

Check Valve

420956511

$28.57

16

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$342.28

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Oil Seal

420230195

$12.65

19

Ball Bearing

420232100

$15.57

20

Rotary Seal

420650371

$35.72

21

O-Ring

420950890

$4.28

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Allen Screw M5 x 16

420840514

$1.85

24

Thrust Washer

420227945

$3.86

25

Water Impeller

420222505

$14.92

26

Gasket This part replaces 420931810.

420931811

$13.26

27

Water Pump Housing

420922630

$59.20

28

Hex. Screw M6 X 25

420240034

$1.56

29

O-Ring

293300041

$7.05

30

Oil Pump Ass'y

420888780

$386.89

31

Taptite Screw M5 X 16

420941928

$0.39

32

Oil Hose 1500Mm Long

219704404

$13.62

33

Loctite 5910, 300 ml

293800081

$57.99

34

Short Block 593 SDI

420059372

Unavailable

34

REBUILD-SHORT BLOCK PACKAGE - Call your local BRP dealership

421000623

Unavailable

35

Loctite 243, 10 ml

293800060

$20.77

36

Sealant Loctite 648

219703000

$35.72

37

Dow Corning 111, 150 g

413707000

$57.82

38

Petamo Grease, GHY133N, 400 g

420899271

$57.17

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Spring Clamp

414420700

$0.68
