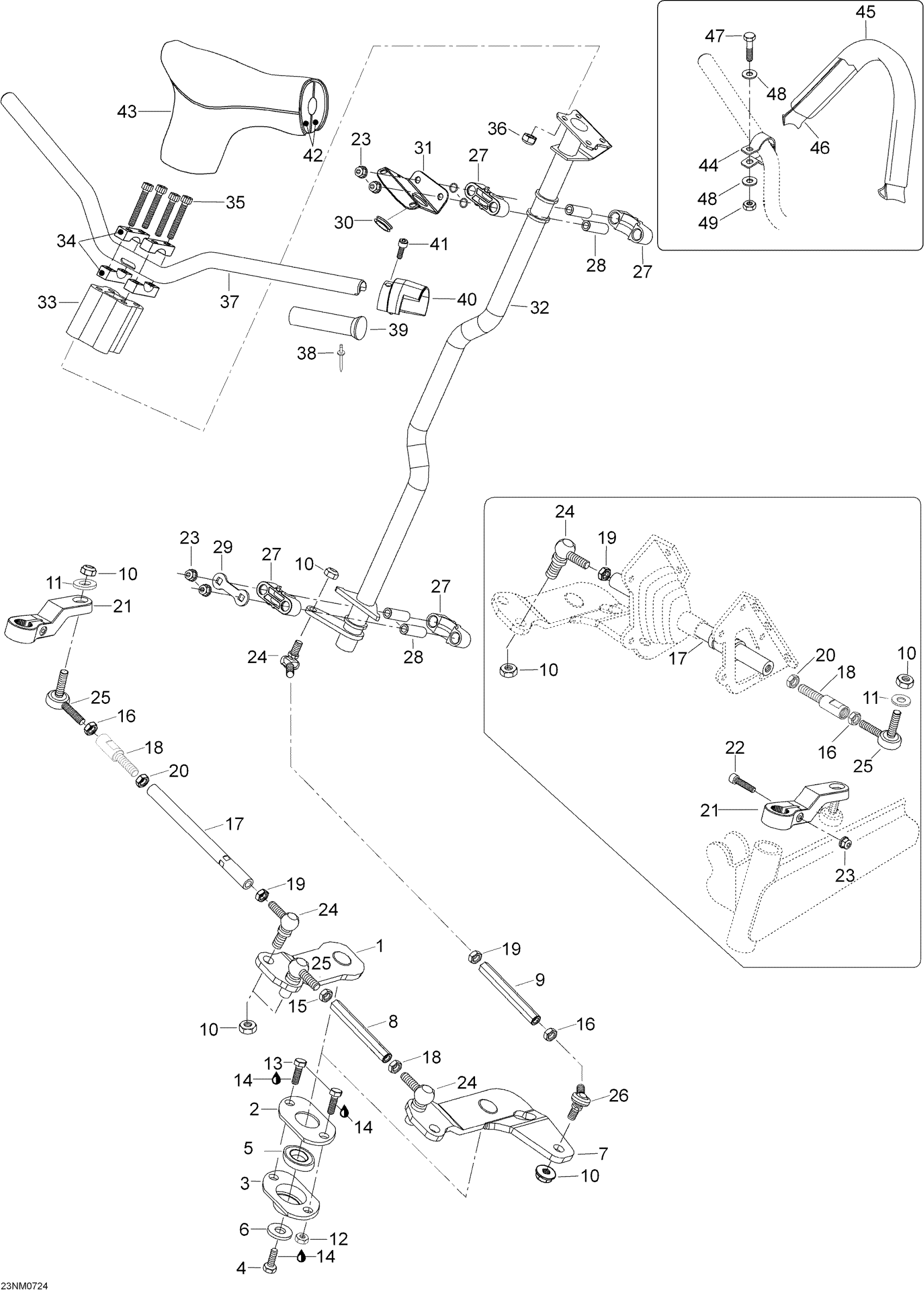

Ski-Doo Expedition TUV 1300 (Europe) , 2007 Steering System Diagram

#

Description
Price

1

RH LEVER - Call your local BRP dealership

605352300

Unavailable

2

Cover

M5345380

Unavailable

3

Bearing Support

605350644

Unavailable

4

Hex. Screw

M40337

Unavailable

5

Ball Bearing

293350115

Unavailable

6

WASHER - Call your local BRP dealership

M5446279

Unavailable

7

LH LEVER - Call your local BRP dealership

605352299

Unavailable

8

SHORT TIE ROD - Call your local BRP dealership

605448308

Unavailable

9

UPPER TIE ROD - Call your local BRP dealership

605351468

Unavailable

10

Elastic Flange Nut M10

232501416

Unavailable

11

WASHER M10 - Call your local BRP dealership

20005

Unavailable

12

Hex. Elastic Stop Nut M8

232581414

Unavailable

13

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

14

Loctite 243, 10 ml

293800060

$20.77

15

RH NUT - Call your local BRP dealership

M33019

Unavailable

16

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

17

ROD_LINK - Call your local BRP dealership

605450794

Unavailable

18

ADJUSTER - Call your local BRP dealership

605450793

Unavailable

19

LH NUT - Call your local BRP dealership

M33017

Unavailable

20

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

21

Steering Arm

M5348261

Unavailable

22

Allen Screw M8 X 45

M40828

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

Unavailable

24

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

25

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

26

BALL JOINT RH - Call your local BRP dealership

605450895

Unavailable

27

Housing Half

506150400

Unavailable

28

Housing Bushing

506150500

Unavailable

29

Stopper Plate

506150600

Unavailable

30

Grommet This part replaces M28022.

28022

Unavailable

31

Bracket

605351973

Unavailable

32

Main Tube

605153411

Unavailable

33

EXTENSION 90 MM - Call your local BRP dealership

605351275

Unavailable

34

Support Guidon *Support-Steer.

M548448

Unavailable

35

Allen Screw M8 X 130

M40209

Unavailable

36

NUT - Call your local BRP dealership

M33027

Unavailable

37

HANDLE BAR - Call your local BRP dealership

605251368

Unavailable

38

Rivet

36005

Unavailable

39

Grip | WAKE This part replaces M5340464.

506152483

$9.85

40

ADAPTATOR - Call your local BRP dealership

506151566

Unavailable

41

Allen Screw M8 X 20

M40390

Unavailable

42

FOAM, FRONT - Call your local BRP dealership

605252110

Unavailable

42

FOAM, REAR - Call your local BRP dealership

605252111

Unavailable

43

STEERING COVER - Call your local BRP dealership

605254571

Unavailable

44

Black Support Plate

506152536

$8.60

45

Strap Ass'y | Package XMR

506152115

$43.05

46

Strap Ass'y | Package XMR

506152115

$43.05

47

Hex. Screw M6 X 25

207162544

Unavailable

48

Flat Washer 6 mm

234061410

Unavailable

49

Elastic Stop Nut M6

232561414

Unavailable
