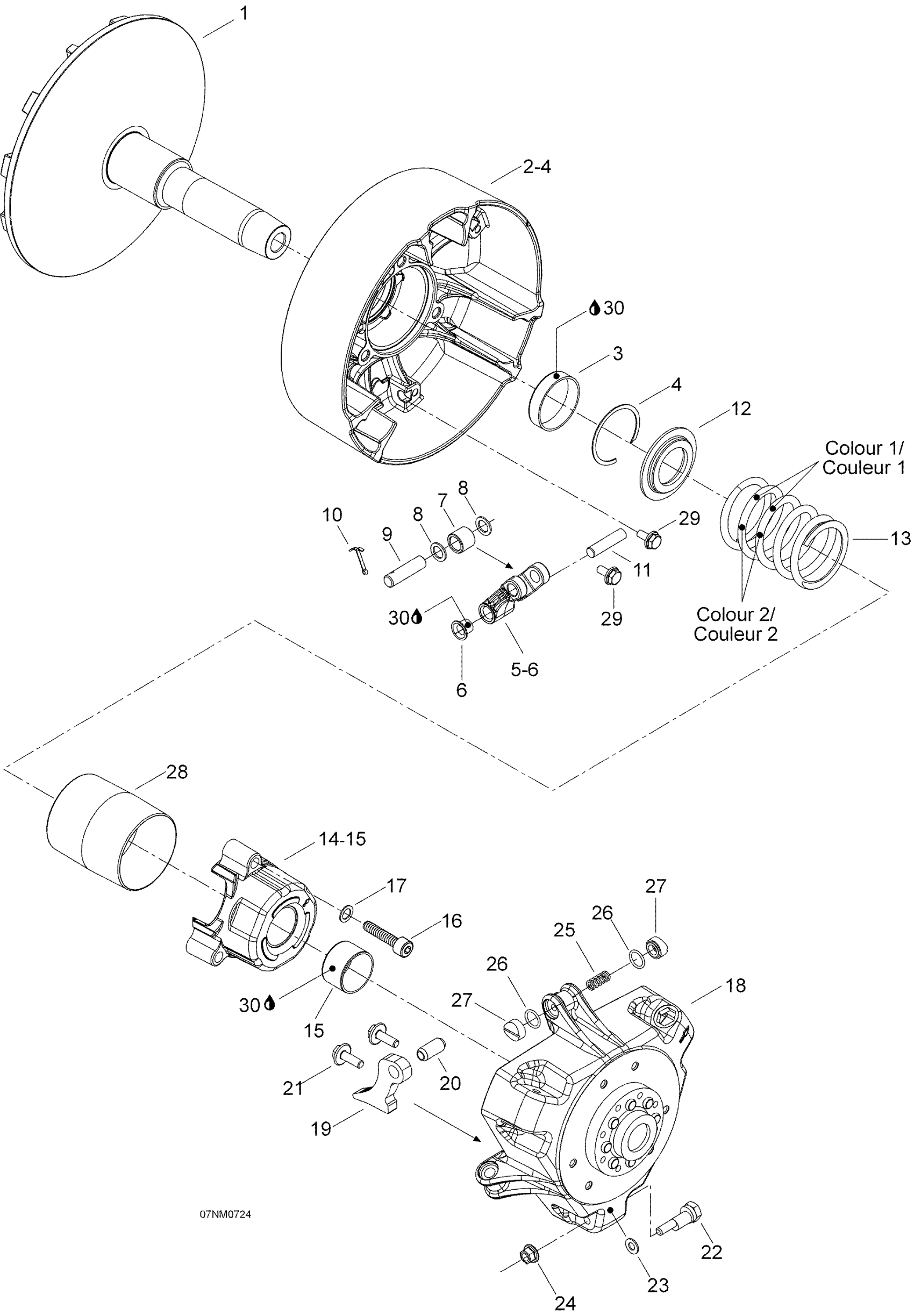

Ski-Doo Expedition TUV 1300 (Europe) , 2007 Drive Pulley Diagram
#
Description
Price
—
Not Available As Spare Part - Friction Washer
Unavailable
1
Fixed Flange Ass'y
417222743
Unavailable
2
Sliding Flange Ass'y
417223093
Unavailable
5
Lever Ass'y | Includes 5 to 6
605354281
Unavailable
6
Bushing
417004305
Unavailable
9
Pin
417004308
Unavailable
10
Pin Screw
417222813
Unavailable
11
LEVER PIN - Call your local BRP dealership
605354282
Unavailable
12
Seat Spring
417222745
Unavailable
14
Spring Cover Ass'y | Includes 14 to 15
417222746
Unavailable
17
Lock Washer 8 mm
250200009
Unavailable
18
Governor Cup Ass'y.
417222729
Unavailable
19
RAMP, 607 HR - Call your local BRP dealership
605254091
Unavailable
22
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
23
FLAT WASHER - Call your local BRP dealership
420827305
Unavailable
24
Hex. Flange Nut M6
233061414
Unavailable
25
Spring
417005700
Unavailable
