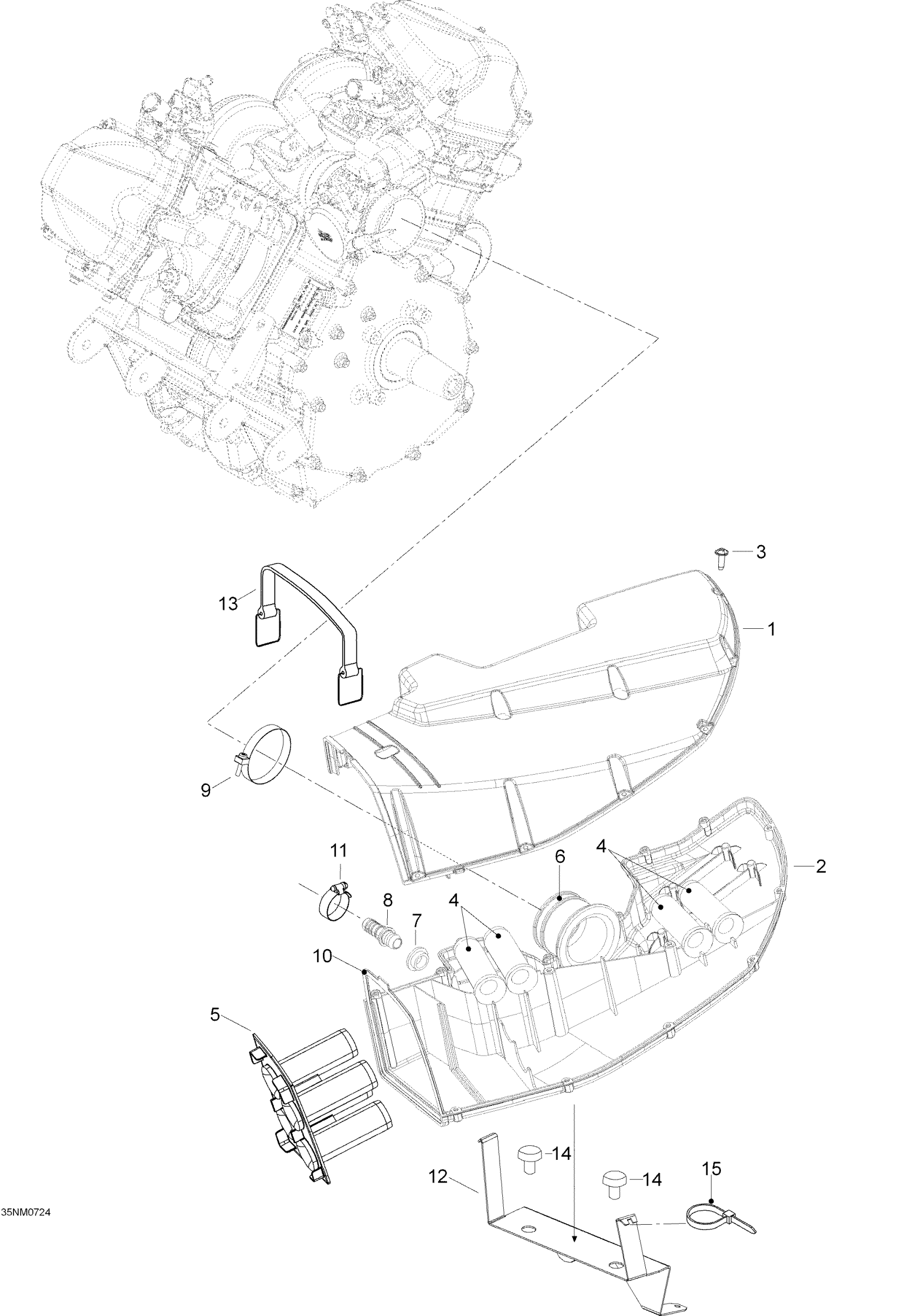

Ski-Doo Expedition TUV 1300 (Europe) , 2007 Air Intake System Diagram

#

Description
Price

1

AIR INTAKE COVER BOX - Call your local BRP dealership

605153098

Unavailable

2

AIR INTAKE BOTTOM BOX - Call your local BRP dealership

605153099

Unavailable

3

Screw Plastofast Mp 6 X 16 Pz

293700048

Unavailable

4

INLET TUBE - Call your local BRP dealership This part replaces M5444445.

5444445

Unavailable

5

VENTURY TUBE SET - Call your local BRP dealership

605253649

Unavailable

6

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

7

Insulating Ring

570023000

Unavailable

8

CONNECTOR - Call your local BRP dealership

605453846

Unavailable

9

GEMI CLAMP - Call your local BRP dealership

508000382

Unavailable

10

AIR FILTER - Call your local BRP dealership

605353517

Unavailable

11

Clamp

605627004

Unavailable

12

INTAKE SILENCER SUPPORT - Call your local BRP dealership

605353774

Unavailable

13

Battery Strap This part replaces 515175955.

605356180

Unavailable

14

Rubber Bumper

570044700

$10.55

15

Tie-Rap 180 mm

414115200

$0.09
