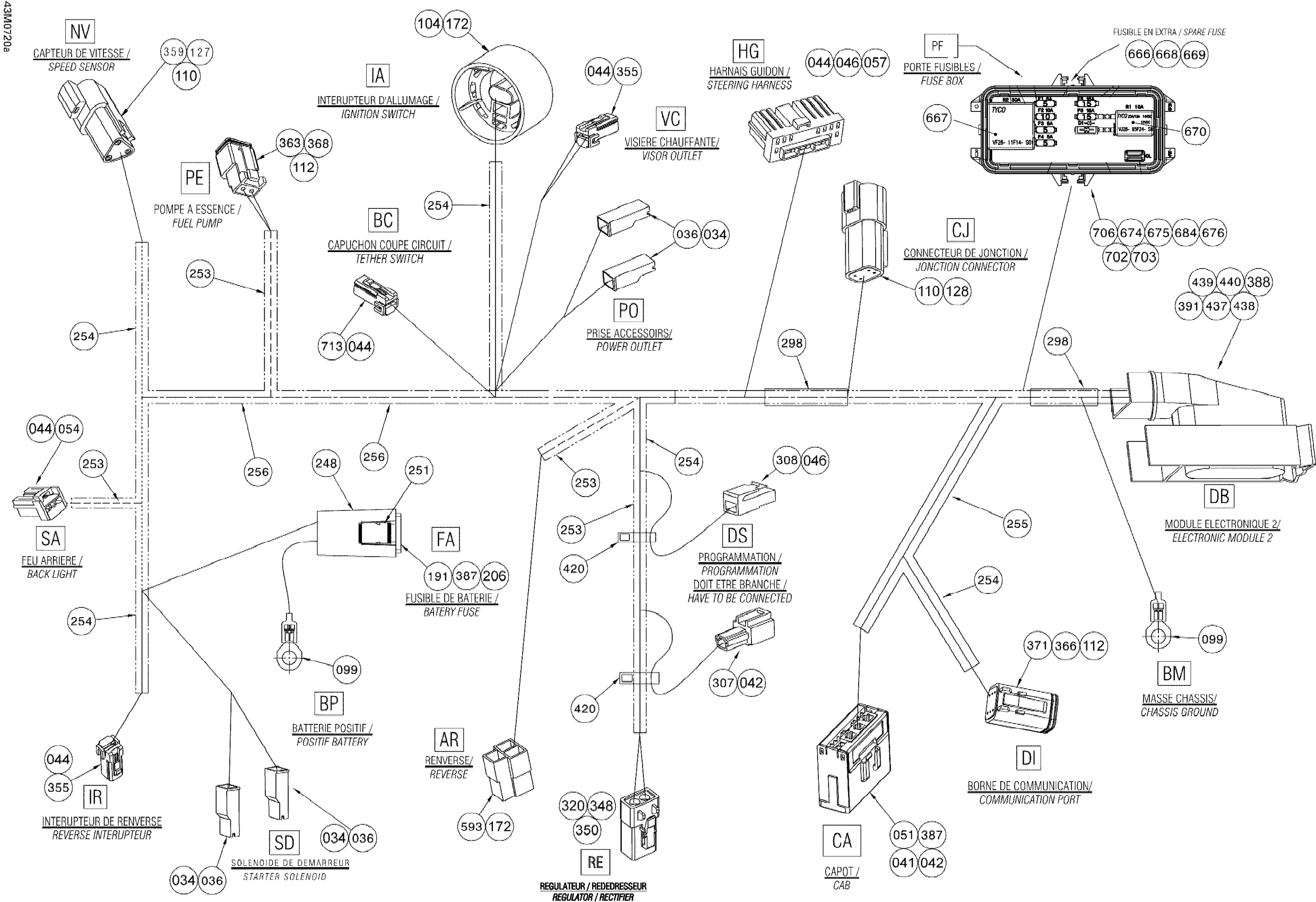

Ski-Doo Expedition Sport V-800, 2007 Electrical Harness Diagram

#

Description
Price

1

WIRING HARNESS - Call your local BRP dealership | Includes 1 to 713

515176356

Unavailable

34

Female Terminal

409010100

$5.46

36

Female Terminal Housing, 1 Circuit

409010400

$7.48

41

Male Terminal

515175232

$1.49

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

Unavailable

46

Female Terminal

515175282

$6.43

51

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

54

Female Housing, 3 Circuits

515175495

$15.35

57

Female Terminal Housing, 13 Circuits

515175350

Unavailable

99

Open Barrel

278000992

$1.79

104

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

110

Male Terminal

278000631

$4.12

112

Female Terminal

278000632

Unavailable

127

Male Lock, 3 Circuits

409207600

$3.02

128

Female Wedge, 4 Circuits

278000636

$4.12

172

Female Terminal

561503100

Unavailable

191

Fuse, 30 Amperes

410917200

$3.22

206

Female Terminal

409004200

Unavailable

248

Fuse Holder

409004000

Unavailable

251

CLIP - Call your local BRP dealership

409014200

$4.23

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

Unavailable

255

Was 409901800 Tubing (13 mm)

219704400

Unavailable

256

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

298

Tape

293740005

Unavailable

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

320

Female Terminal

515175567

$6.03

348

Female Terminal Housing, 2 Circuits

278001673

$23.05

350

Female Lock, 2 Circuits

278001671

$3.22

355

Female Housing, 2 Circuits

515175658

Unavailable

359

Male Housing

515175666

Unavailable

363

Female Terminal Housing, 2 Circuits

515175670

Unavailable

366

Male Housing, 6 Circuits

515175673

$13.05

368

Female Lock, 2 Circuits

515175675

Unavailable

371

Male Wedge, 6 Circuits

515175678

Unavailable

387

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

420

Tie-Rap 180 mm

414115200

$0.09

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.48

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

$5.31

593

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

666

Little Fuse, 5 Amperes

710000742

Unavailable

670

Relay, 30 AMP

515176774

$19.20

668

Little Fuse, 10 Amperes

710000744

Unavailable

669

Little Fuse, 15 Ampere

710000745

Unavailable

667

Relay, 50 AMP

515176775

$13.86

674

Fuse Cover

710001026

$17.52

675

Fuse Box Base Ass´y

415129856

$41.57

676

FUSE LOGO - Call your local BRP dealership

515176395

Unavailable

684

Fuse Puller

710000781

$8.29

702

Female Terminal

710000836

$5.46

703

Female Terminal

710000837

$4.32

706

Cap

710000840

$5.49

713

Female Terminal Housing, 2 Circuits

515176296

Unavailable
