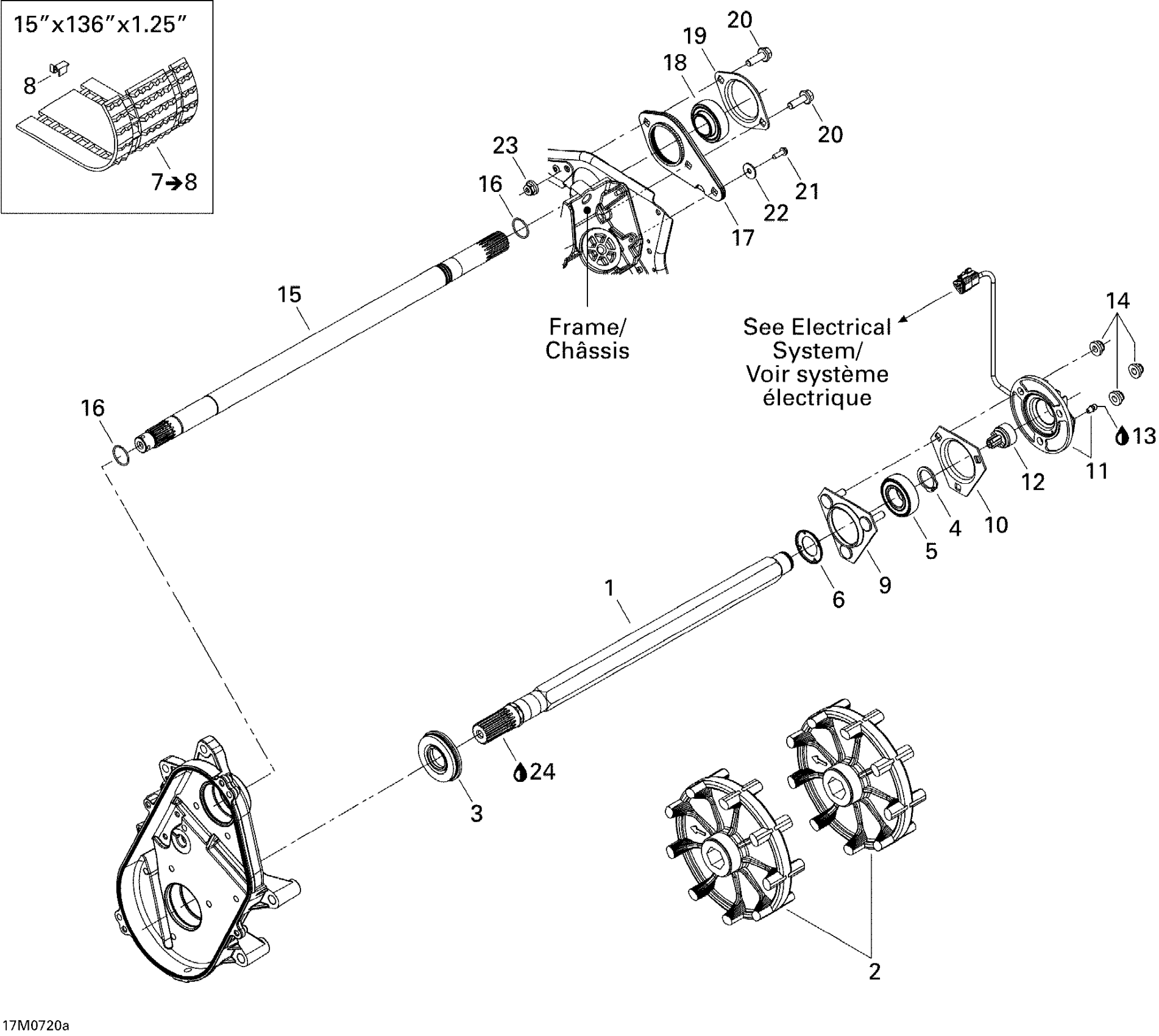

Ski-Doo Expedition Sport V-800, 2007 Drive System 1 Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

$256.89

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

Oil Seal Ass'y

504151918

Unavailable

4

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

5

Ball Bearing

293350060

Unavailable

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track 16" X 136" X 1.25" Ass'y | Includes 7 to 9

504152456

Unavailable

8

Track Guide | Track Width 16''

415129528

$3.12

9

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

10

FLANGE - Call your local BRP dealership

501025000

Unavailable

11

Rotation Sensor

504152345

Unavailable

12

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

13

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

14

Hex. Flange Elastic Nut M8

233281414

Unavailable

15

COUNTER SHAFT - Call your local BRP dealership

504152292

Unavailable

16

Circlip

371910000

Unavailable

17

SPACER - Call your local BRP dealership

504151968

Unavailable

18

Ball Bearing Kit This part replaces 504152535.

415129555

Unavailable

19

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

20

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

21

Hex. Flange Screw, Scotch Grip

207551634

Unavailable

22

Flat Washer

224061201

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

Unavailable

24

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
