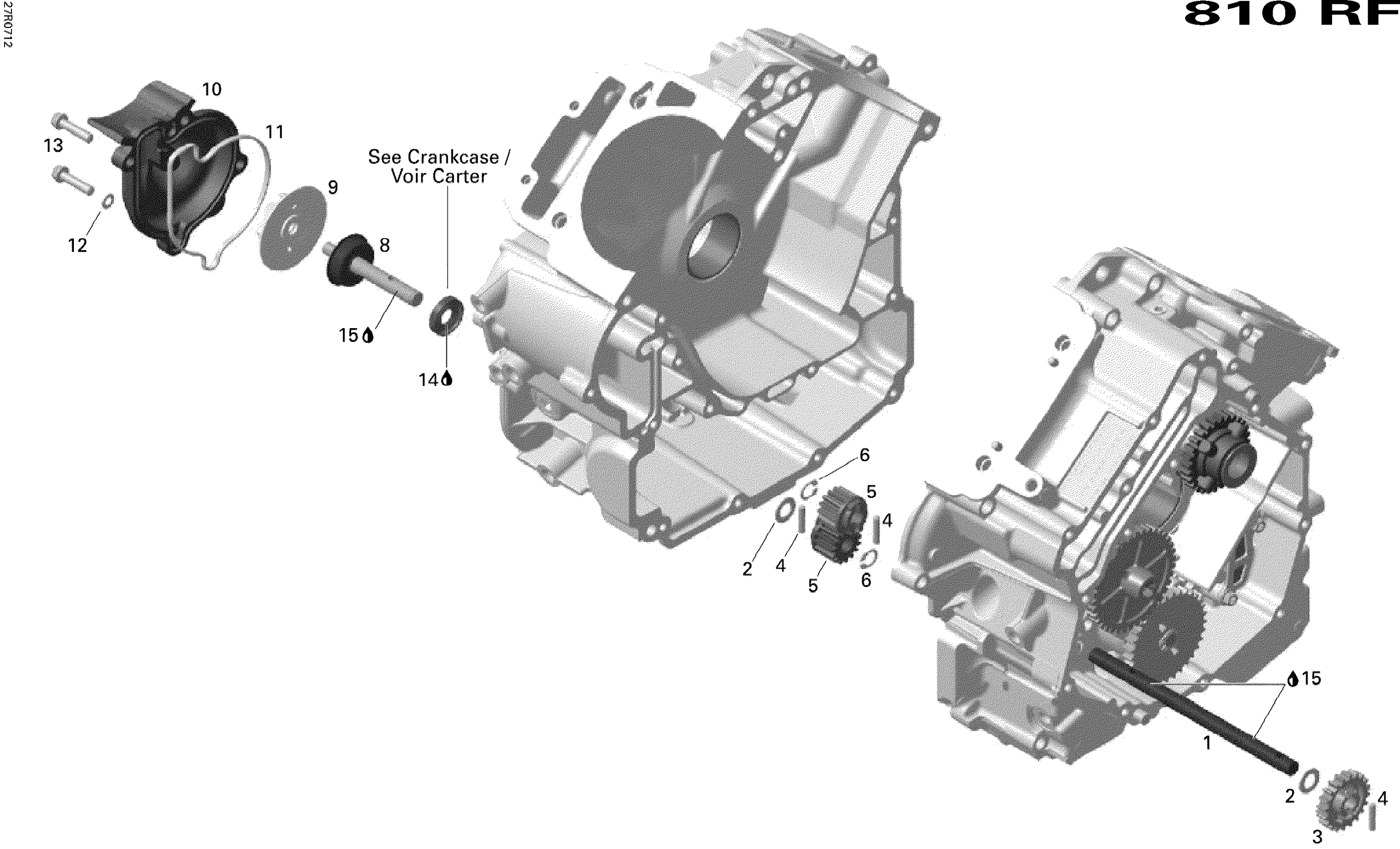

Ski-Doo Expedition Sport V-800, 2007 Engine Cooling Diagram

#

Description

Price

1

Intermediate Shaft

420620500

Unavailable

2

Thrust Washer

420827590

$3.86

3

Water Pump Gear

420434330

Unavailable

4

Needle Pin

420232420

Unavailable

5

Pump Gear, 15 Teeth

420234627

Unavailable

6

Snap Ring

420245330

Unavailable

8

Water Pump Shaft Ass'y | Includes 8a to 8b

420620175

Unavailable

9

Water Impeller

420222505

$14.92

10

WATER PUMP HOUSING - Call your local BRP dealership

420222782

Unavailable

11

Gasket

420651190

Unavailable

12

Seal Washer

420230415

$1.77

13

Torx Flange Screw M6 X 25

420641238

Unavailable

14

Grease, Super Lube

293550030

Unavailable

15

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
