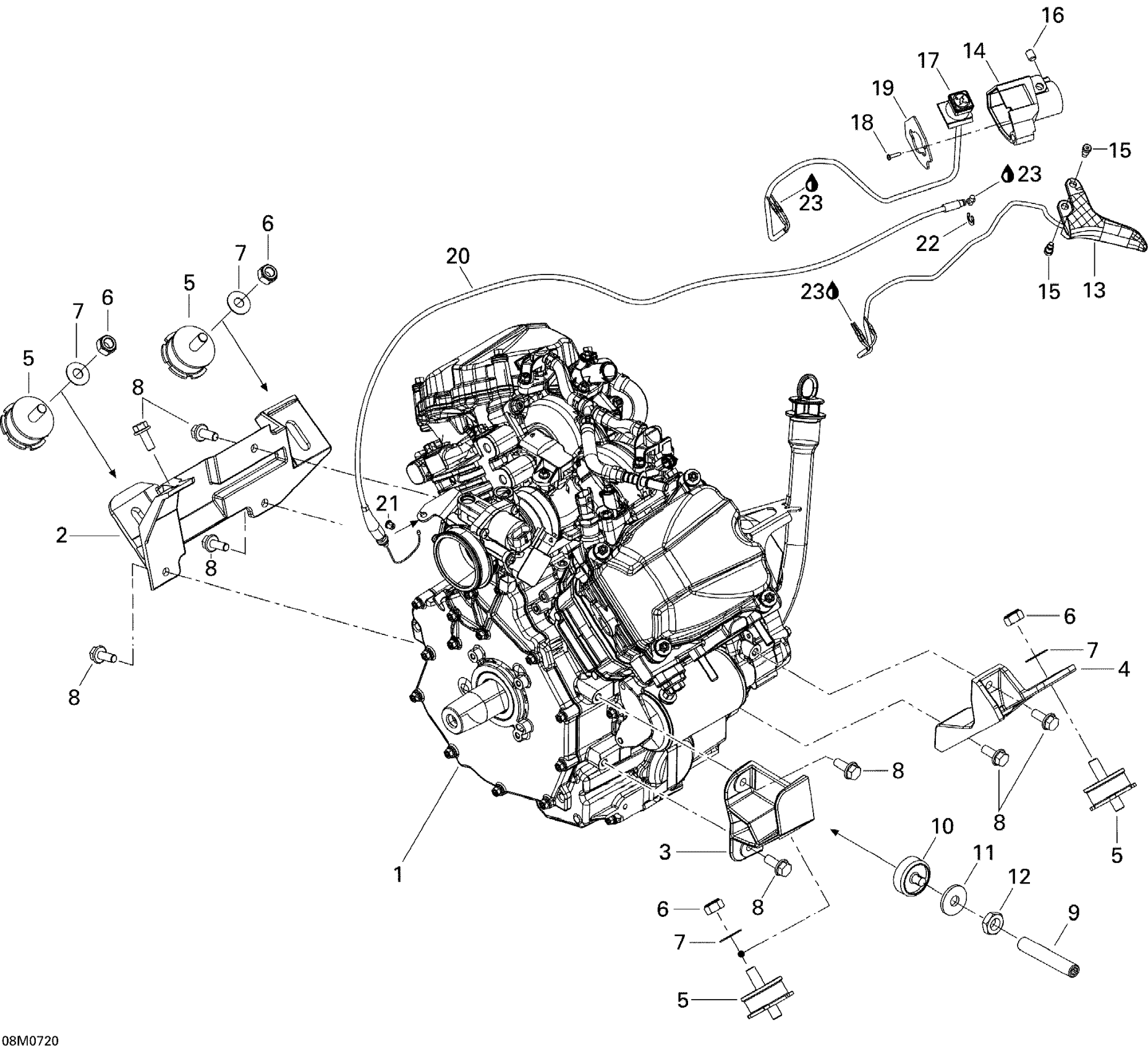

Ski-Doo Expedition Sport V-800, 2007 Engine And Engine Support Diagram

#

Description
Price

1

Engine V810

400800314

Unavailable

2

FRONT ENGINE SUPPORT - Call your local BRP dealership

512060076

Unavailable

3

ENGINE SUPPORT, PTO SIDE - Call your local BRP dealership

512060077

Unavailable

4

ENGINE SUPPORT, MAGNETO SIDE - Call your local BRP dealership

512060078

Unavailable

5

RUBBER MOUNT - Call your local BRP dealership

512059960

Unavailable

6

Elastic Stop Nut M10

232500416

$1.56

7

Washer

250200032

Unavailable

8

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

9

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

10

STOPPER - Call your local BRP dealership

512059610

Unavailable

11

WASHER - Call your local BRP dealership

512059057

Unavailable

12

Hex. Jam Nut M14

232170411

Unavailable

13

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

14

Throttle Housing

512060603

$10.57

15

Flange Screw

732601143

$4.02

16

Socket Set Screw M8 X 10

414440800

$4.00

17

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

18

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

19

Plate

512060390

$9.31

20

THROTTLE CABLE - Call your local BRP dealership

512060125

Unavailable

21

Cable Guide

707000434

Unavailable

22

Circlip

414274500

Unavailable

23

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
