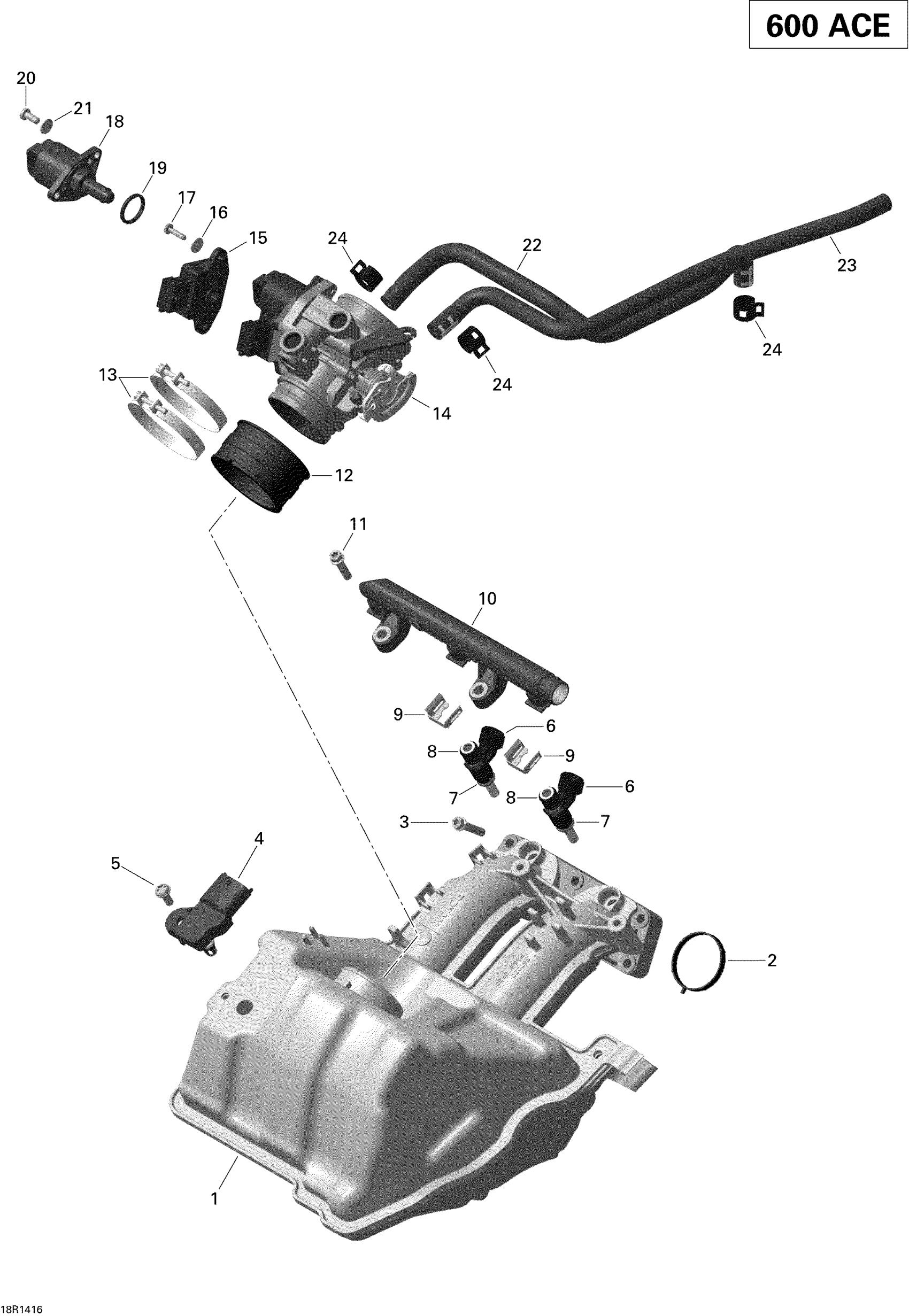

Ski-Doo EXPEDITION SPORT 600ACE XP, 2014 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold Ass'y | Includes 1 To 2

420867020

$224.99

2

Gasket

420431660

$11.49

3

Torx Flange Screw M6 X 30

420440647

$2.09

4

Pressure And Temperature Sensor

707000995

$91.99

5

Torx Flange Screw M6 X 16

420641588

$2.19

6

Injection Valve Ass'y | Includes 18 to 20

420874847

$139.99

7

O-Ring

420431890

$7.69

8

O-Ring

420631220

$14.49

9

Injector Clip

420853030

$3.19

10

Fuel Rail

420874961

$16.99

11

Torx Flange Screw M6 X 25

420440234

$3.09

12

Intake Adaptor

420460495

$10.99

13

Clamp

420251480

$14.49

14

Throttle Body Ass'y | Includes 14 To 21

420296879

$370.99

15

Position Sensor

420866120

$99.99

16

Flat Washer 4 mm, Stainless

234042600

$1.49

17

Phillips Screw M4 X 16

208641660

$1.49

18

Idle Air Control Valve

420665941

$184.99

19

O-Ring

420631780

$4.49

20

Binding Head Screw M5 X 16

420440911

$14.49

21

Snap Ring

420845710

$4.19

22

MOLDED HOSE - Call your local BRP dealership

420460910

Unavailable

23

MOLDED HOSE - Call your local BRP dealership

420460915

Unavailable

24

Clamp

420853511

$7.69
