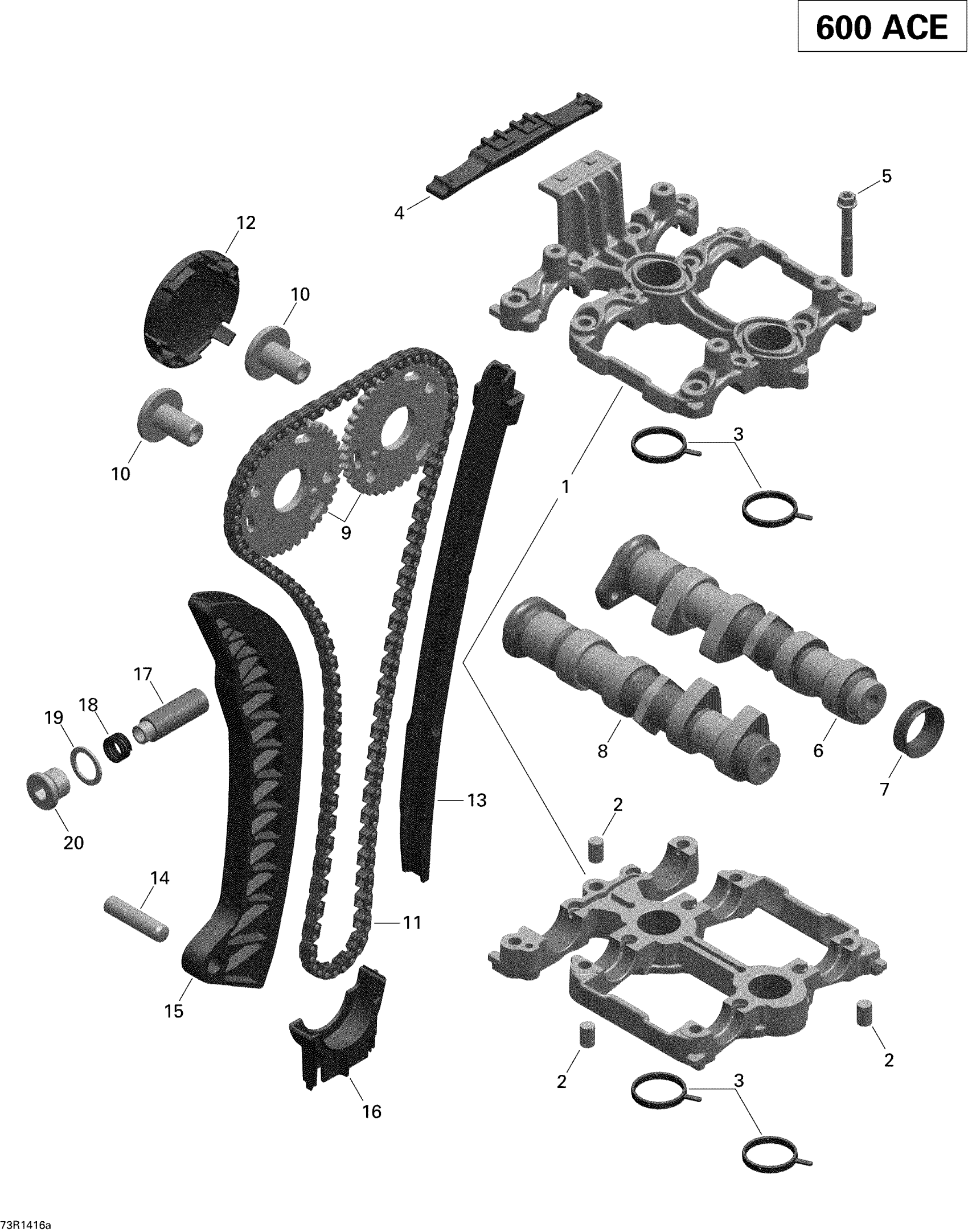

Ski-Doo EXPEDITION SPORT 600ACE XP, 2014 Valve Train Diagram

#

Description
Price

1

Camshaft Housing Ass'y

420911035

$195.49

2

Center Pin 8 X 12

420632010

$3.07

3

Camshaft Housing Gasket

420431760

$2.63

4

Chain Guide, Upper

420936500

$3.61

5

Torx Flange Screw M6 X 45

420440324

$0.81

6

Camshaft, Exhaust

420820112

$182.81

7

V-Ring

420630127

$5.29

8

Camshaft, Intake

420820102

$182.81

9

Camshaft Sprocket, 40 Teeth

420855120

$15.57

10

Flat Head Screw M14 X 1.5

420441360

$23.10

11

Camshaft Chain

420297086

$61.72

12

Cover

420460920

$4.41

13

Chain Guide

420936010

$8.89

14

Needle Pin

420929937

$5.29

15

Chain Tension Guide

420936020

$10.58

16

Chain Guide

420936510

$5.29

17

Chain Tensioner

420236395

$38.97

18

Compression Spring

420238732

$4.65

19

O-Ring

420430622

$3.61

20

Plug Screw

420840591

$7.05
