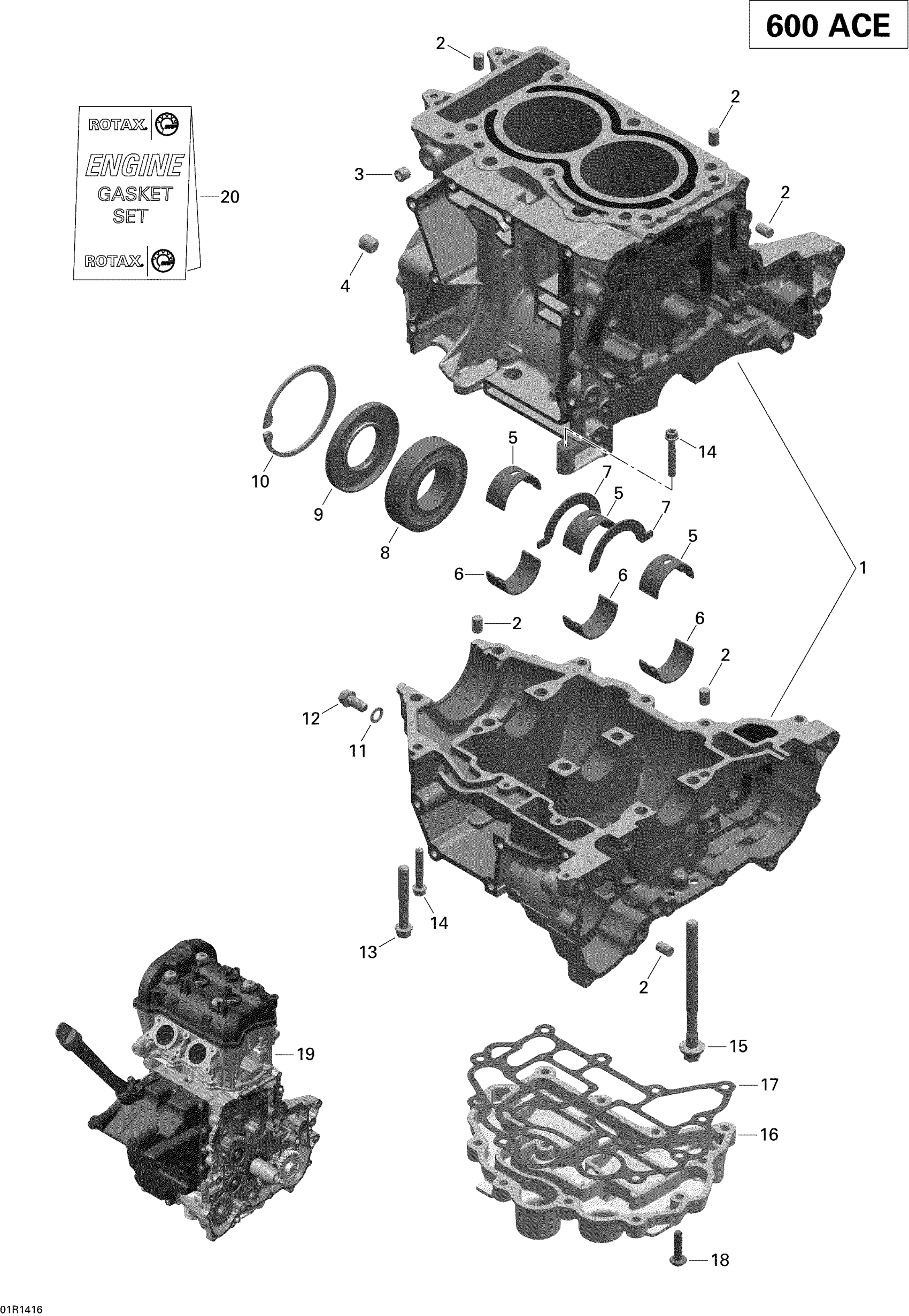

Ski-Doo EXPEDITION SPORT 600ACE XP, 2014 Engine Block Diagram

#

Description
Price

1

Crankcase Ass'y | Includes no. 1-6

420892853

$2,069.99

2

Center Pin 8 X 12

420632010

$4.09

3

Plug Screw M10 X 1

420641323

$14.49

4

Threaded Pin

420840500

$7.79

5

Cushion

420933180

$17.49

6

Cushion

420933185

$18.49

7

Ring Half

420933140

$11.49

8

Ball Bearing

420832232

$13.16

9

Oil Seal

420431402

$19.49

10

Retaining Ring

420845790

$7.69

11

Sealing Ring

420950141

$2.09

12

Torx Flange Screw M8 X 16

420440852

$4.19

13

Torx Flange Screw M8 X 55

420641213

$7.59

14

Torx Flange Screw M6 X 35

420641258

$3.49

15

Torx Flange Screw M9 X 113

420940945

$13.99

16

Oil Sump

420911124

$81.99

17

Gasket

420431630

$15.49

18

Torx Flange Screw M6 X 25

420841549

$2.09

19

Long Block 602

420060203

$3,887.99

20

Gasket Set Engine 602

420686024

$339.99
