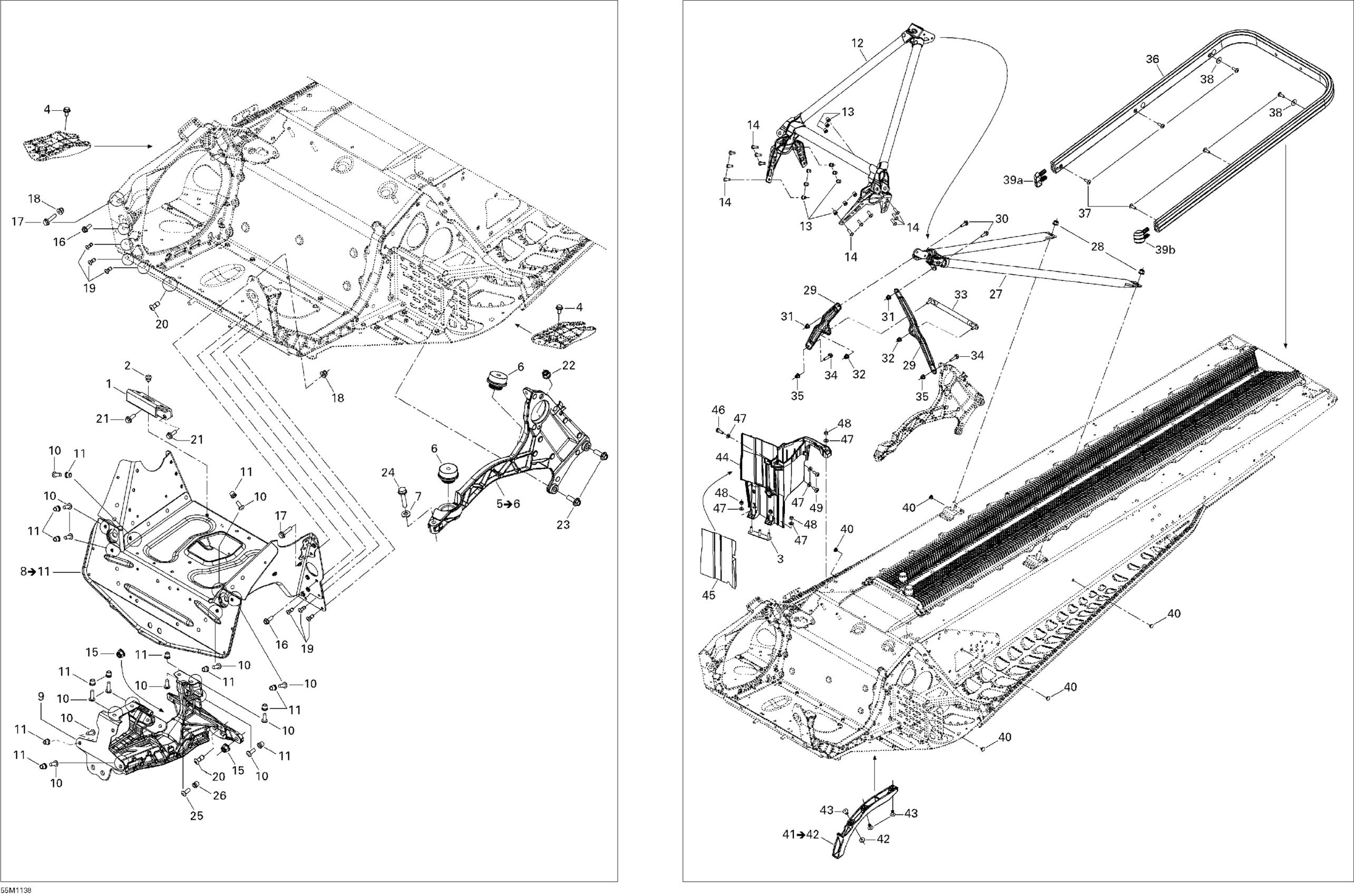

Ski-Doo Expedition Sport 600ACE, 2011 Frame and Components Diagram

#

Description
Price

1

Engine Support

518326178

$63.05

2

Hemlock Rivet, 6.4 mm

293150174

$6.43

3

Retaining Plate | Includes 40 to 40a

518326550

Unavailable

4

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

5

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

Unavailable

6

Vibration Damper

512061516

$57.66

7

Conical Spring Washer M8

234281474

$1.25

8

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

9

Front Suspension Support

518327487

Unavailable

10

Hex. Flange Screw M6 X 20

207662044

Unavailable

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

12

Front Member

518326970

$276.12

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Hex. Flange Screw M6 X 20

207662044

Unavailable

15

Hex. Flange Elastic Nut M8

233281414

Unavailable

16

Hex. Flange Screw M6 X 16

210261650

$1.22

17

Hex. Flange Screw M6 X 25

207662544

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

19

Monobolt Rivet, 4.8 mm

293150191

Unavailable

20

Monobolt Rivet 6.4

293150182

$2.91

21

Hex. Flange Screw M6 X 16

207661644

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Hex. Flange Screw M8 X 25, Nylon

250000351

$1.74

24

Hex. Flange Screw, Scotch Grip

207584034

$2.06

25

Hex. Flange Screw M6 X 20

207662044

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

27

Rear Member

518326559

Unavailable

28

Hex. Flange Elastic Nut M8

233281414

Unavailable

29

Upper Column Support

518326848

$13.06

30

Hex. Flange Screw M6 X 20

207662044

Unavailable

31

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

33

Center Column Support

518326355

$20.74

34

Hex. Flange Screw M6 X 25

207662544

Unavailable

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

36

Clear Rear Bumper

518325579

Unavailable

37

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

38

Flat Washer

224061201

Unavailable

39a

Full Moon RH Cap

520000711

Unavailable

39b

Full Moon LH Cap

520000712

Unavailable

40

Full Moon Dart 8 mm

293730041

$2.12

41

Front Tunnel Protector | Includes 1700 to 1700a

518326973

Unavailable

42

Washer

517124300

Unavailable

43

Pop Rivet 3/16”

293150108

$1.23

44

Battery Support

518326472

$40.74

45

Heat Shield

514054755

$6.49

46

Hex. Flange Screw M6 X 20

210262040

Unavailable

47

Flat Washer

250200039

Unavailable

48

Elastic Stop Nut M6

232561414

Unavailable

49

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable
