Description

Price

1

Idle Gear, 31 Teeth

420835067

Unavailable

2

Graduated Spacer This part replaces 420947390.

420947396

$26.89

3

Torx Flange Screw M6 X 20

420440207

$2.54

4

Water Pump Gear

420835230

Unavailable

5

Needle Pin

420232431

$3.67

6

Thrust Washer

420827261

Unavailable

7

Oil Seal

420931802

Unavailable

8

Waterpump Shaft

420820150

Unavailable

9

Seal

420850946

Unavailable

10

Water Impeller

420222880

Unavailable

11

Thermostat

420822655

Unavailable

12

Water Pump Housing O-Ring

420950896

Unavailable

13

Thermostat Cover

420922150

$8.34

14

Water Pump Housing

420922293

$59.12

15

Water Pump Housing Gasket

420431682

Unavailable

16

Torx Flange Screw M6 X 55

420440702

Unavailable

17

Seal Washer

420230415

$1.77

18

Torx Flange Screw M6 X 30

420440647

Unavailable

19

Temperature Sensor

278002895

$31.82

K

Dow Corning 111, 150 g

413707000

$57.82

N

Dow Corning 111, 150 g

413707000

$57.82

O

Not Available As Spare Part - Friction Washer

Unavailable

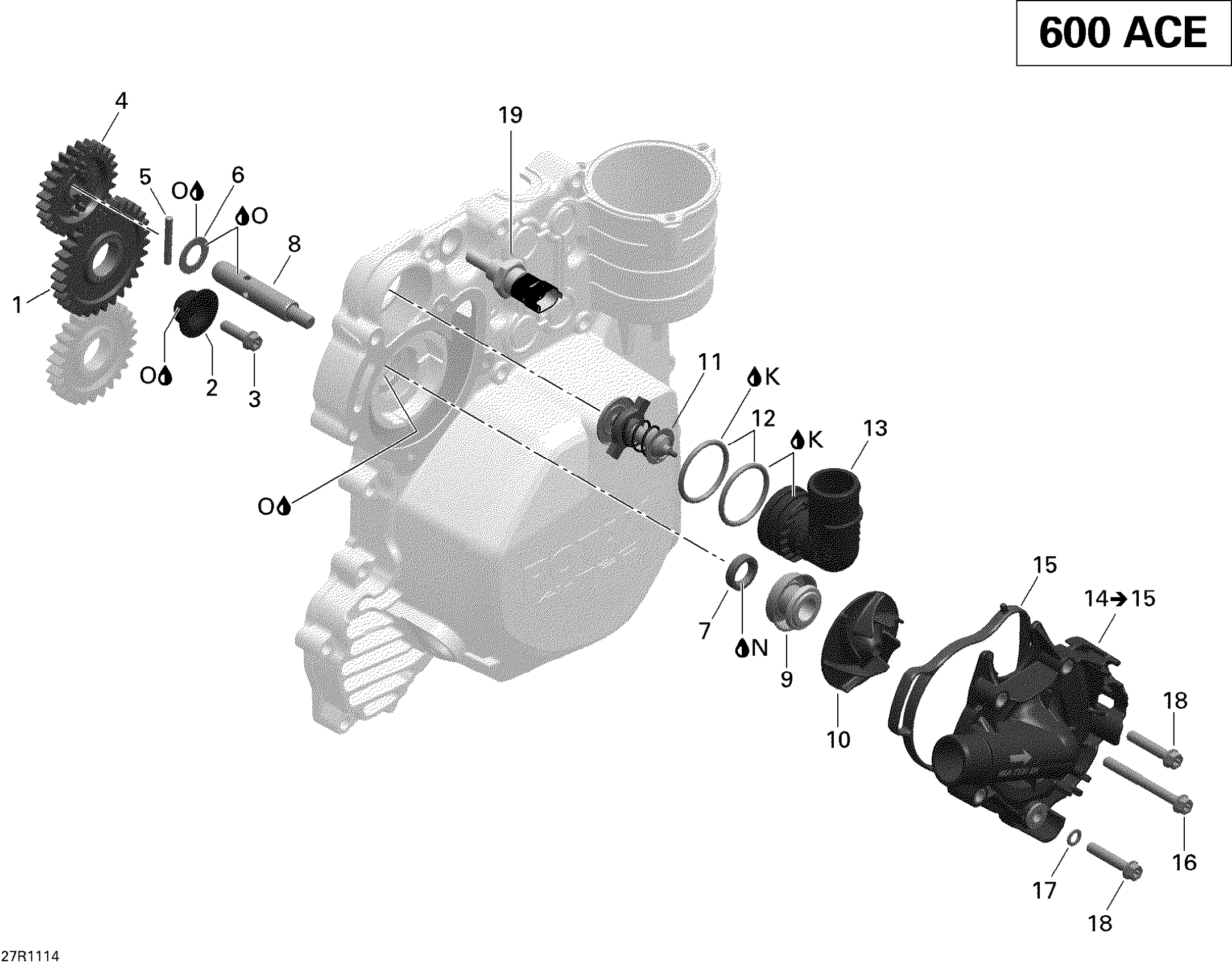

Ski-Doo Expedition Sport 600ACE, 2011 Engine Cooling Diagram

Idle Gear, 31 Teeth

Water Pump Gear

Thrust Washer

Oil Seal

Waterpump Shaft

Seal

Water Impeller

Thermostat

Water Pump Housing O-Ring

Water Pump Housing Gasket

Torx Flange Screw M6 X 55

Torx Flange Screw M6 X 30

Not Available As Spare Part - Friction Washer
