Description

Price

1

Crankcase Ass'y | Includes no. 1-6

420892853

$2,069.99

2

Center Pin 8 X 12

420632010

Unavailable

3

Plug Screw M10 X 1

420641323

Unavailable

4

Threaded Pin

420840500

$6.26

5

Cushion

420933180

$14.27

6

Cushion

420933185

$14.92

7

Ring Half

420933140

$8.89

8

Ball Bearing

420832232

Unavailable

9

Oil Seal

420431402

Unavailable

10

Retaining Ring

420845790

$7.31

11

Sealing Ring

420950141

$1.64

12

Torx Flange Screw M8 X 16

420440852

Unavailable

13

Torx Flange Screw M8 X 55

420641213

$6.11

14

Torx Flange Screw M6 X 35

420641258

$2.78

15

Torx Flange Screw M9 X 113

420940945

$10.41

16

Oil Sump

420911124

Unavailable

17

Gasket

420431630

$14.54

18

FLANGED TORX SCREW M6 X 25 - Call your local BRP dealership | Tightening Torque 9 Nm +/- 12%

420841546

$4.14

19

Long Block 602

420060203

Unavailable

20

Gasket Set Engine 602

420686024

Unavailable

B

Loctite 243, 10 ml

293800060

$20.77

N

Dow Corning 111, 150 g

413707000

$57.82

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99

S

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

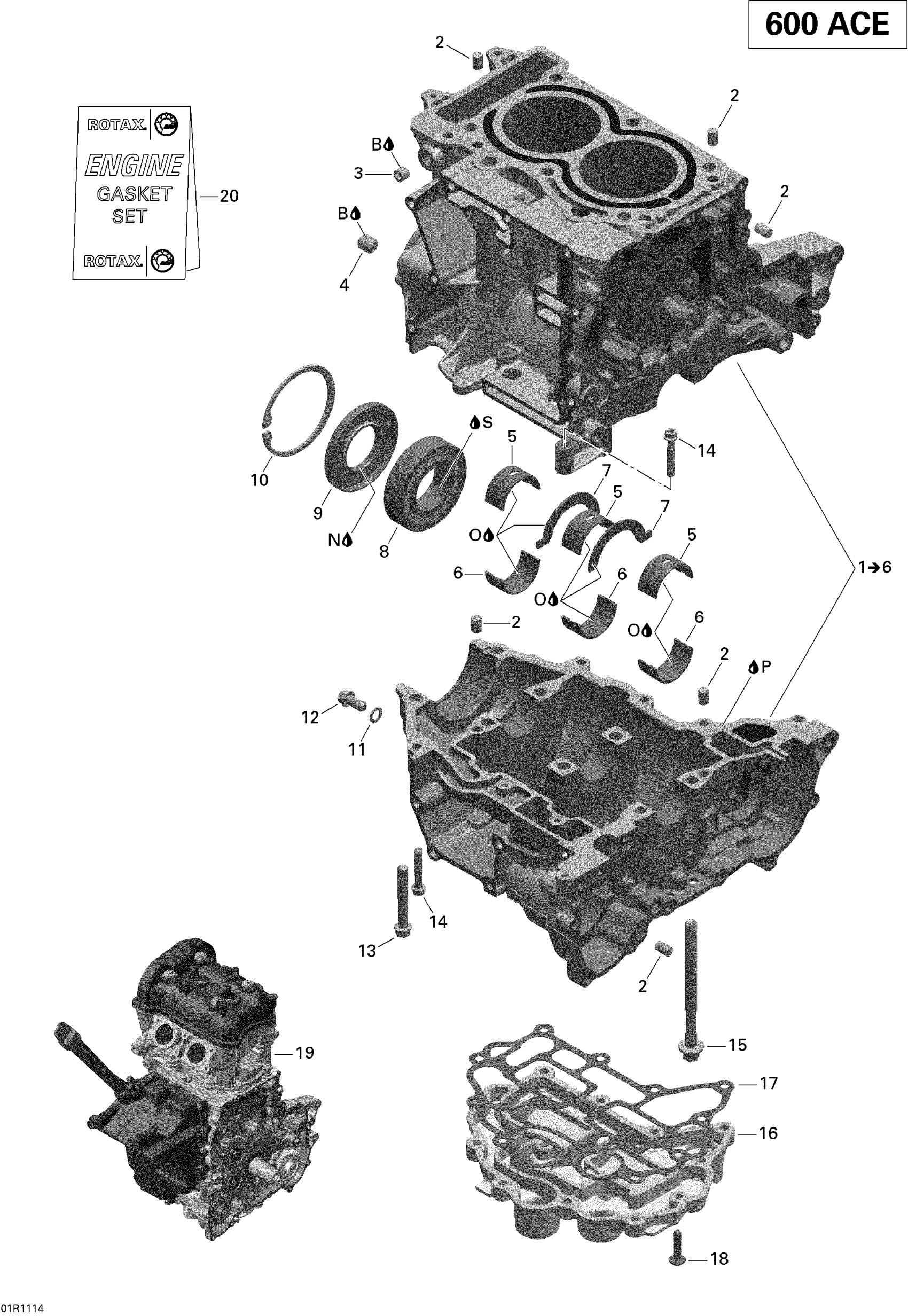

Ski-Doo Expedition Sport 600ACE, 2011 Engine Block Diagram

Center Pin 8 X 12

Plug Screw M10 X 1

Ball Bearing

Oil Seal

Torx Flange Screw M8 X 16

Oil Sump

Long Block 602

Gasket Set Engine 602

Not Available As Spare Part - Friction Washer

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
