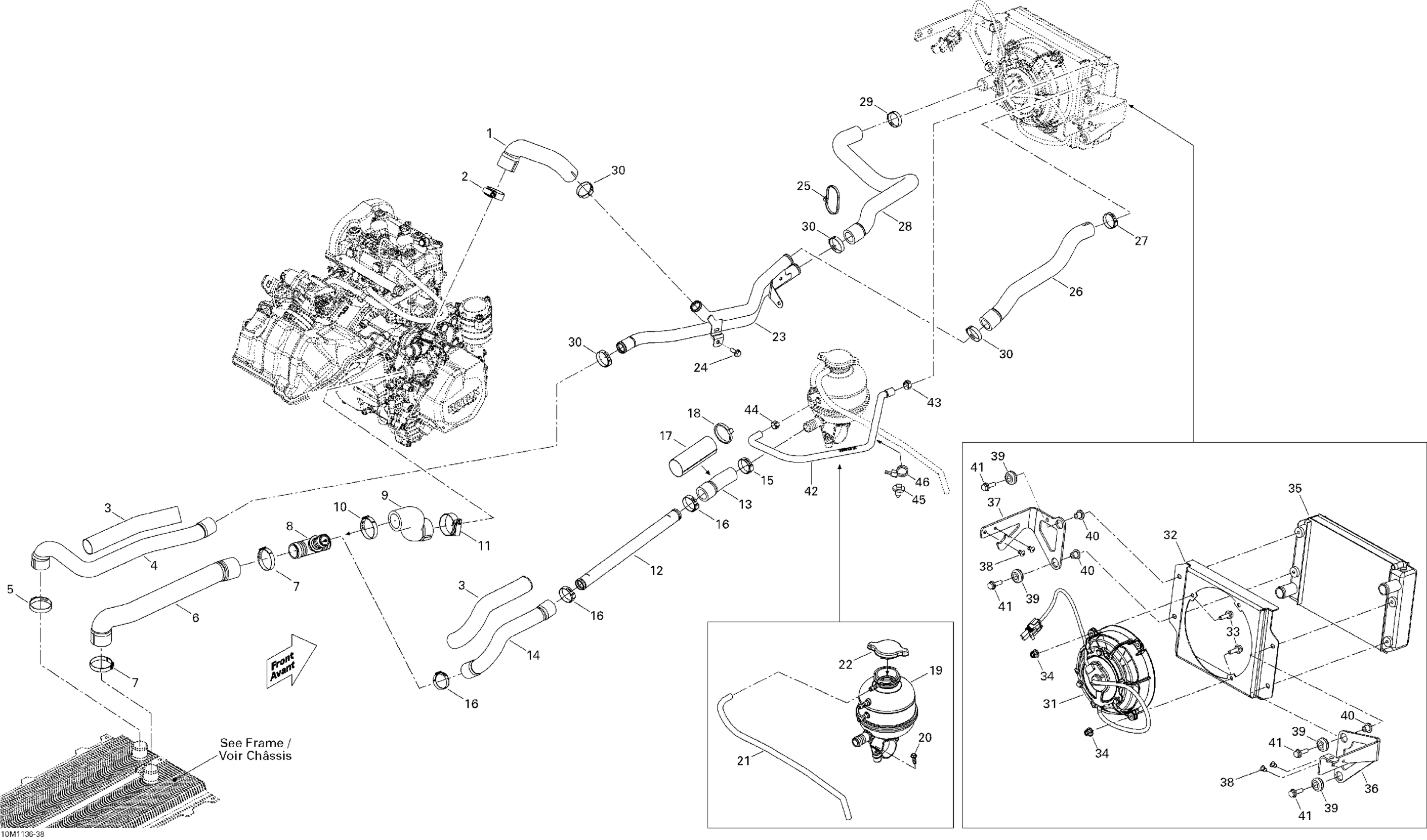

Ski-Doo Expedition Sport 600ACE, 2011 Cooling System Diagram

#

Description
Price

1

Engine Outlet Hose

509000932

$17.66

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

4

Hose

509000634

$23.82

5

Oetiker Gear Clamp, 36.5-706R

509000529

$8.20

6

Radiator Return Hose

509001062

$14.54

7

Oetiker Gear Clamp, 36.5-706R

509000529

$8.20

8

T-Fitting

509000372

$7.87

9

Engine Inlet Hose | Engine 600 ACE

509000565

$13.58

10

Oetiker Gear Clamp, 36.5-706R

509000529

$8.20

11

Aba Gear Clamp, 26-38 MM

509000443

$5.68

12

PIPE - Call your local BRP dealership

509000644

Unavailable

13

HOSE - Call your local BRP dealership

509000698

Unavailable

14

HOSE - Call your local BRP dealership

509000563

Unavailable

15

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

16

Crimp Clamp

293650099

$3.55

17

Protector Tube

707001349

$19.20

18

Tie-Rap 180 mm

414115200

$0.09

19

Coolant Tank

509000368

$86.89

20

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

21

Hose 6 Mm 15000Mm Long

219704360

$104.62

22

Radiator Pressure Cap

509000180

$11.69

23

WATER PIPE - Call your local BRP dealership

509000629

Unavailable

24

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

25

Tie-Rap 180 mm

414115200

$0.09

26

RADIATOR HOSE - Call your local BRP dealership

509000636

Unavailable

27

Oetiker Gear Clamp

293650165

$4.32

28

RADIATOR HOSE - Call your local BRP dealership

509000637

Unavailable

29

Oetiker Gear Clamp

293650165

$4.32

30

Clamp

509000735

$5.86

31

Fan

709200573

$241.51

32

Fan Support

509000714

$49.20

33

Hex. Flange Screw M6 X 20

207662044

$1.66

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

35

Radiator

509000756

$176.12

36

RH RADIATOR SUPPORT - Call your local BRP dealership

509000754

Unavailable

37

LH RADIATOR SUPPORT - Call your local BRP dealership

509000755

Unavailable

38

Avex Rivet

390909100

$0.29

39

Grommet

709000582

$4.38

40

Bushing

293900100

$6.31

41

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

42

BREATHER HOSE - Call your local BRP dealership

509000750

Unavailable

43

Oetiker Clamp

293650046

$2.33

44

Oetiker Gear Clamp

293650025

$2.46

45

Mount Dart

293730040

$0.86

46

Tie-Rap 180 mm

414115200

$0.09
