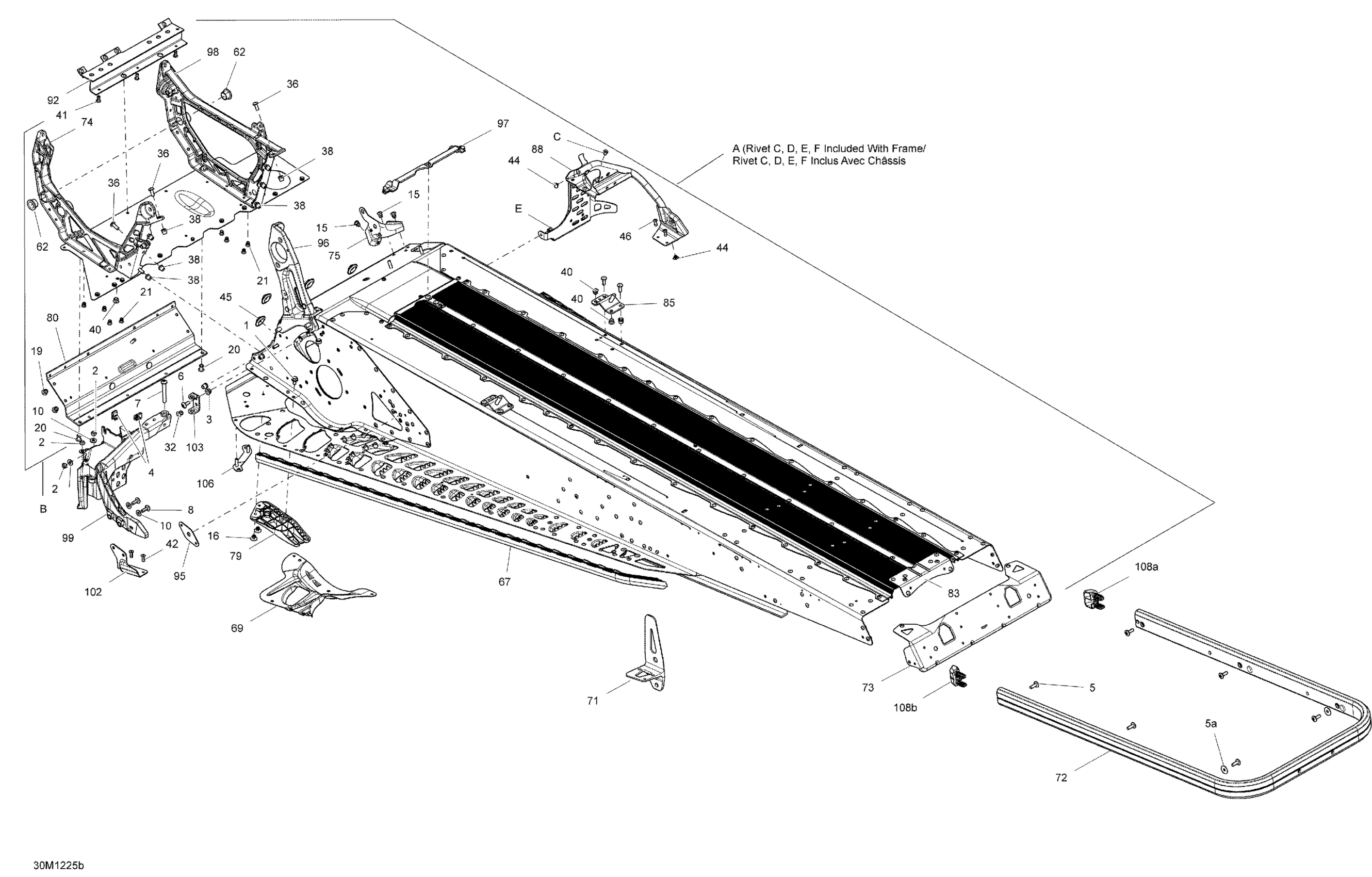

Ski-Doo Expedition Sport 550F XP-FAN, 2012 Frame Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

2

Elastic Stop Nut M6

232561414

$1.55

3

Hex. Flange Nut M6

233061414

$1.34

4

Panel Nut M5 X 0.8

250000958

$3.48

5

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

6

Tork Screw M6 X 16

250000534

$1.74

7

Torx Screw M8 X 55

250000535

$2.63

8

Tork Screw M6 X 18

250000536

$2.06

10

Flat Washer

250200039

$0.72

15

Hemlock Rivet, 6.5 mm

293150096

$3.17

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

19

Hemlock Rivet, 6.5 mm

293150119

$4.00

20

Hemlock Rivet 6.5 mm

293150120

$7.23

21

Stavex Rivet

293150144

$0.77

32

Ornit Rivet 6,5 X 14.5

293150266

$1.94

36

Hex. Flange Screw M6 X 20

207662044

$1.66

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

Hemlock Rivet, 6.4 mm

293150174

$6.43

41

Monobolt Rivet, 4.8 mm

293150191

$0.95

42

Interlock Rivet 3/16''

293150194

$1.02

44

Full Moon Dart 5 mm

293730042

$2.12

45

Black, Plug

293730052

$6.37

46

Pop Rivet 3/16"

390402300

$0.75

62

Leg Bushing

505072690

$5.92

67

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

67

LH Roller | Includes 10bd to 10be

518325160

$78.43

69

RH Reinforcement

518324874

$25.35

69

LH Reinforcement

518324875

$25.35

71

RH Slide Bracket

518325955

Unavailable

71

LH Slide Bracket

518325956

$46.12

72

Clear Rear Bumper

518325579

$109.97

73

Rear Cap

518327105

$20.74

74

LH Member

518325558

$230.74

75

RH Engine Support

518325559

$18.43

79

RH Deflector, Black Polypropylene

518325782

$11.77

79

LH Deflector, Black Polypropylene

518325783

$11.77

80

Front Member | Includes 10as to 10at

518325818

$54.58

83

Not Available As Spare Part - Friction Washer

Unavailable

85

RH Rear Base

518325973

$18.43

85

LH Rear Base | Includes 10v to 10x

518325974

$18.43

88

RH Stirup | Includes 10aa to 10ab

518328938

$166.12

92

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

95

Reinforcement Plate

518326647

$4.34

96

Pulley Support

518328346

$117.66

97

Seal

518326656

$8.43

98

RH Member

518326795

$259.97

99

LH Stirup

518326820

$36.89

102

Support

518326960

$9.71

103

U-Attach

518326961

$8.45

106

Attach | Includes 10n to 10p

518326986

$9.71

108a

Full Moon RH Cap

520000711

$8.60

108b

Full Moon LH Cap

520000712

$8.60

5a

Flat Washer

224061201

$1.11

A

Frame | Includes 10 to 10bf

415130260

$3,595.35

B

E Module | Includes 10ap to 10ay

518327568

$466.12

C

Avex Rivet

390909200

$0.29

D

Avex Rivet

390909100

$0.29

E

Stavex Rivet

293150144

$0.77

E

Stavex Rivet

293150144

$0.77

F

Henrob Rivet

293150146

$1.92
