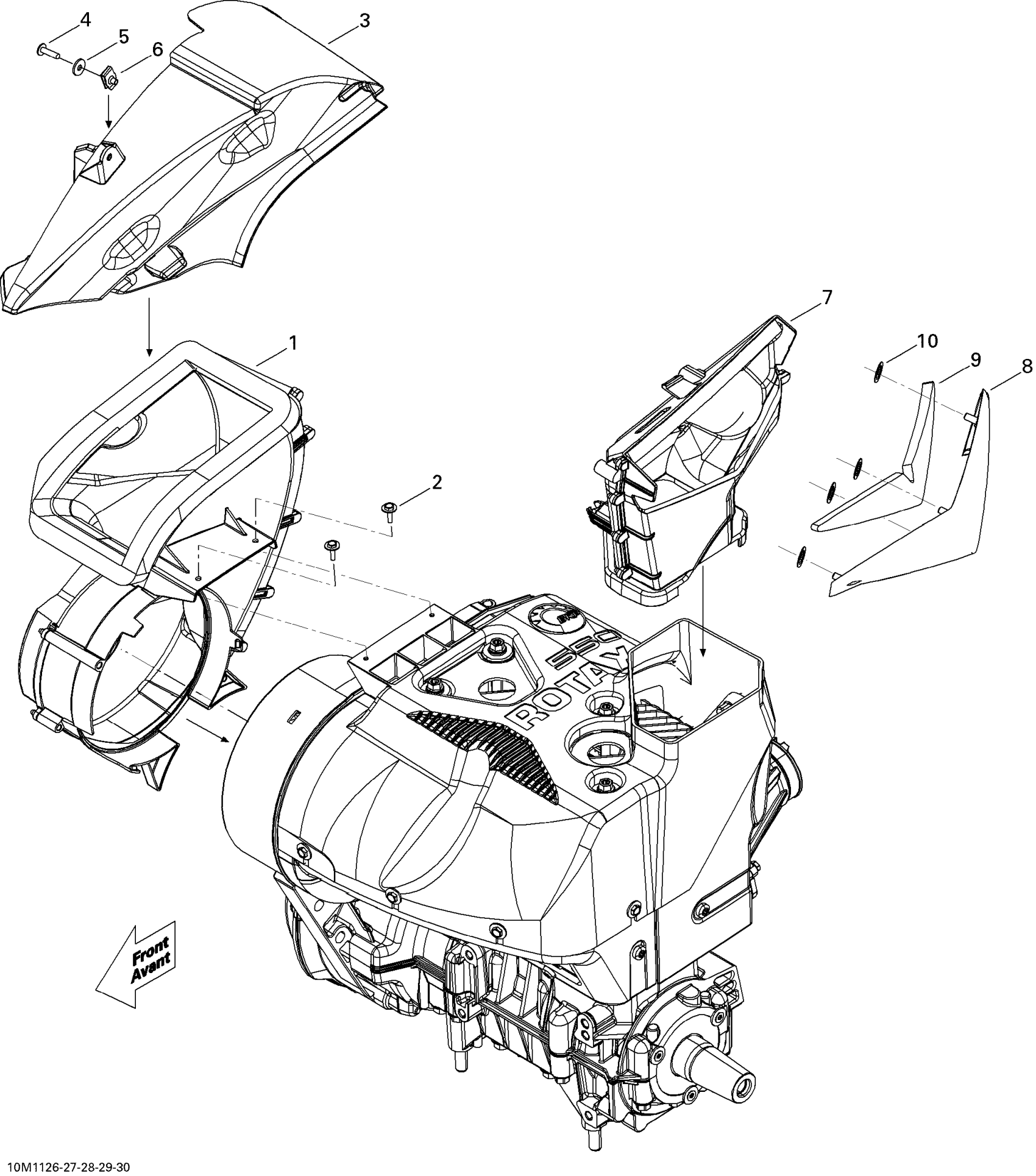

Ski-Doo Expedition Sport 550F XP-FAN, 2011 Cooling System Diagram

#

Description
Price

1

Inlet Duct

509000840

$102.28

2

PLASTITE SCREW TYPE K-40 M4 X 16 - Call your local BRP dealership

250000377

$3.82

3

Air Chamber

509000451

$45.35

4

Torx Screw M5 X 20

250000724

Unavailable

5

Washer | DS 650 X

391301600

Unavailable

6

Panel Nut M5 X 0.8

250000958

Unavailable

7

Outlet Duct

509000452

$45.35

8

OUTLET AIR DEFLECTOR - Call your local BRP dealership | Black Model

509000585

Unavailable

9

Air Inlet Foam

509000574

$10.57

10

Push Nut

732610072

Unavailable
