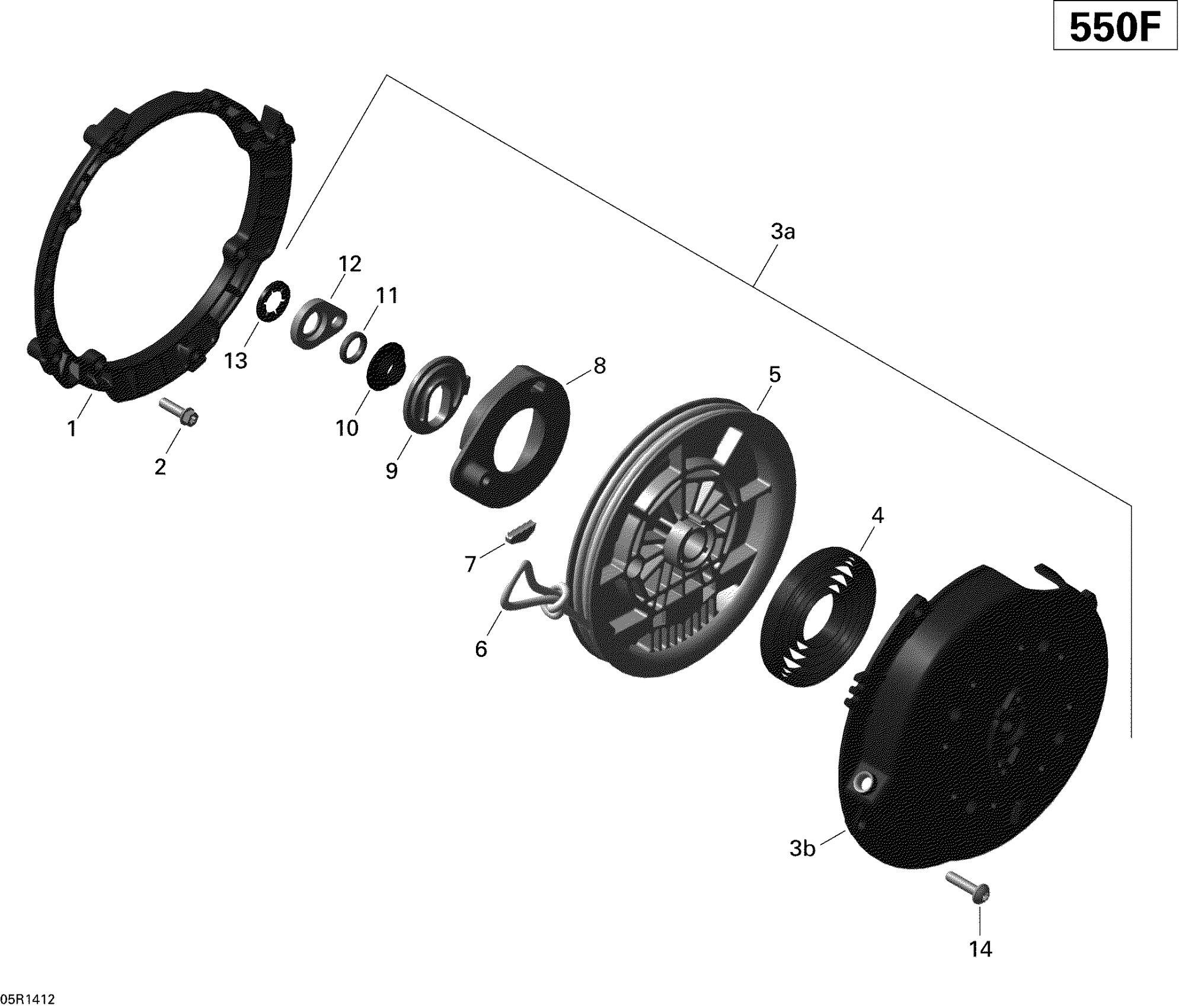

Ski-Doo EXPEDITION SPORT 550F XP, 2014 Rewind Starter Diagram

#

Description

Price

1

Flange Connector

420810955

Unavailable

2

Torx Flange Screw M6 X 20

420440207

$2.54

3a

Rewing Starter Ass'y | Includes 3a to 13

420890175

Unavailable

3b

Not Available As Spare Part - Friction Washer

Unavailable

4

Rewind Spring

420939115

$25.32

5

Rope Sheave

420852480

Unavailable

6

Was 412500100 Rope-Starter

219704403

Unavailable

7

Key Clamp

420852070

Unavailable

8

Pawl

420852296

Unavailable

9

Pawl Lock | Includes no. 8-9

420852640

$5.51

10

Stage Sleeve

420847926

Unavailable

11

O-Ring

420250400

Unavailable

12

Lock Ring

420852520

Unavailable

13

Locking Element

420845560

Unavailable

14

Plastite Screw

420940431

Unavailable
