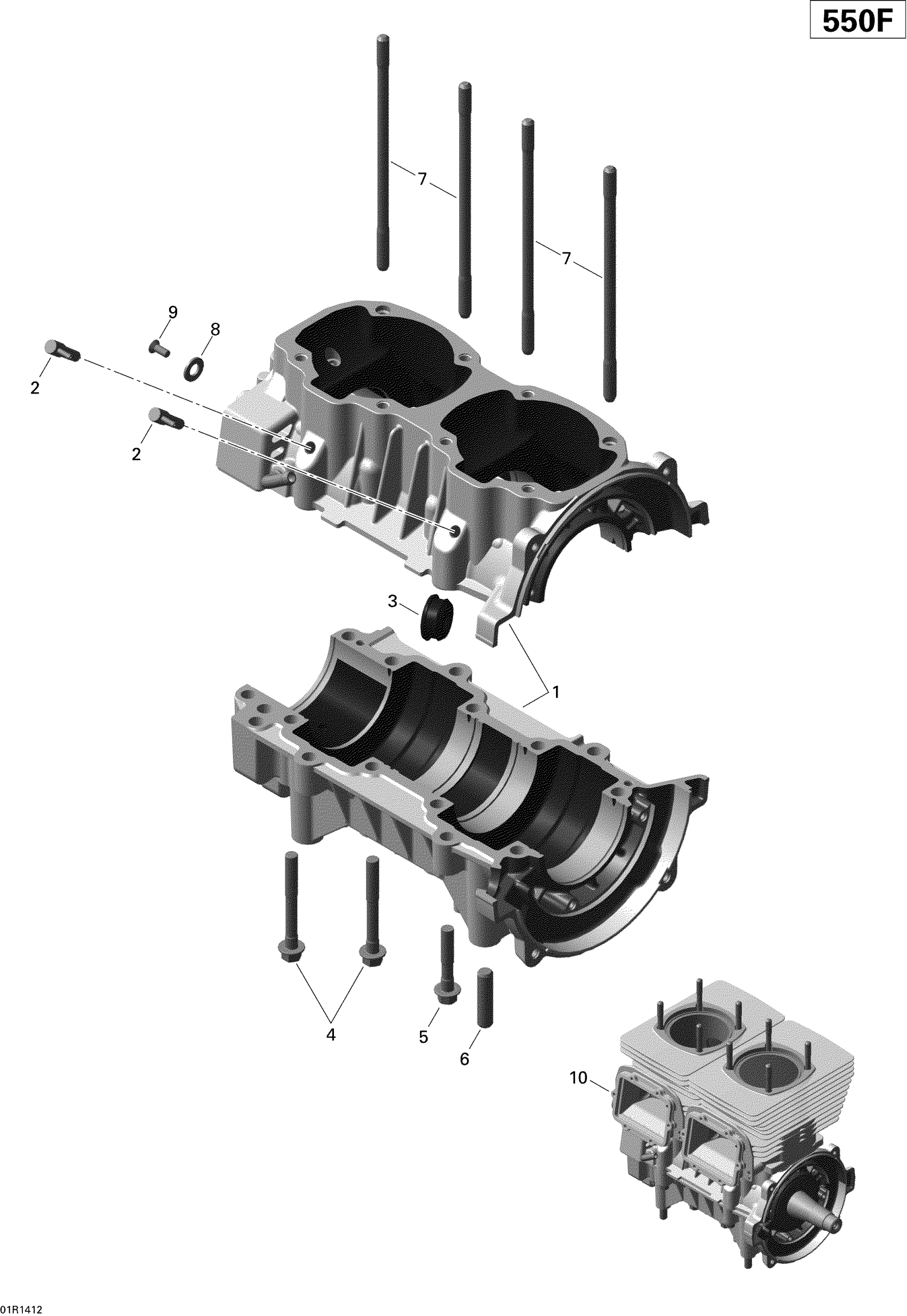

Ski-Doo EXPEDITION SPORT 550F XP, 2014 Crankcase Diagram

#

Description

Price

1

Crankcase Ass'y | Includes 1 to 4

420890237

$769.99

2

Check Valve

420956511

$36.99

3

Cable Grommet

420860962

$13.49

4

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.79

5

Hex. Collar Screw M8 x 45

420640432

$8.79

6

Stud M10 X 45

420840266

$13.49

7

Stud M8 X 173.5

420840556

$15.99

8

Flat Washer 8.4 mm

420250315

$1.49

9

Taptite Flat Head Screw M5 x 12 This part replaces 420640896.

420640897

$2.19

10

Short Block 552 XP

420055208

$1,979.99

10

Short Block 552 XP

420055208

$1,979.99
