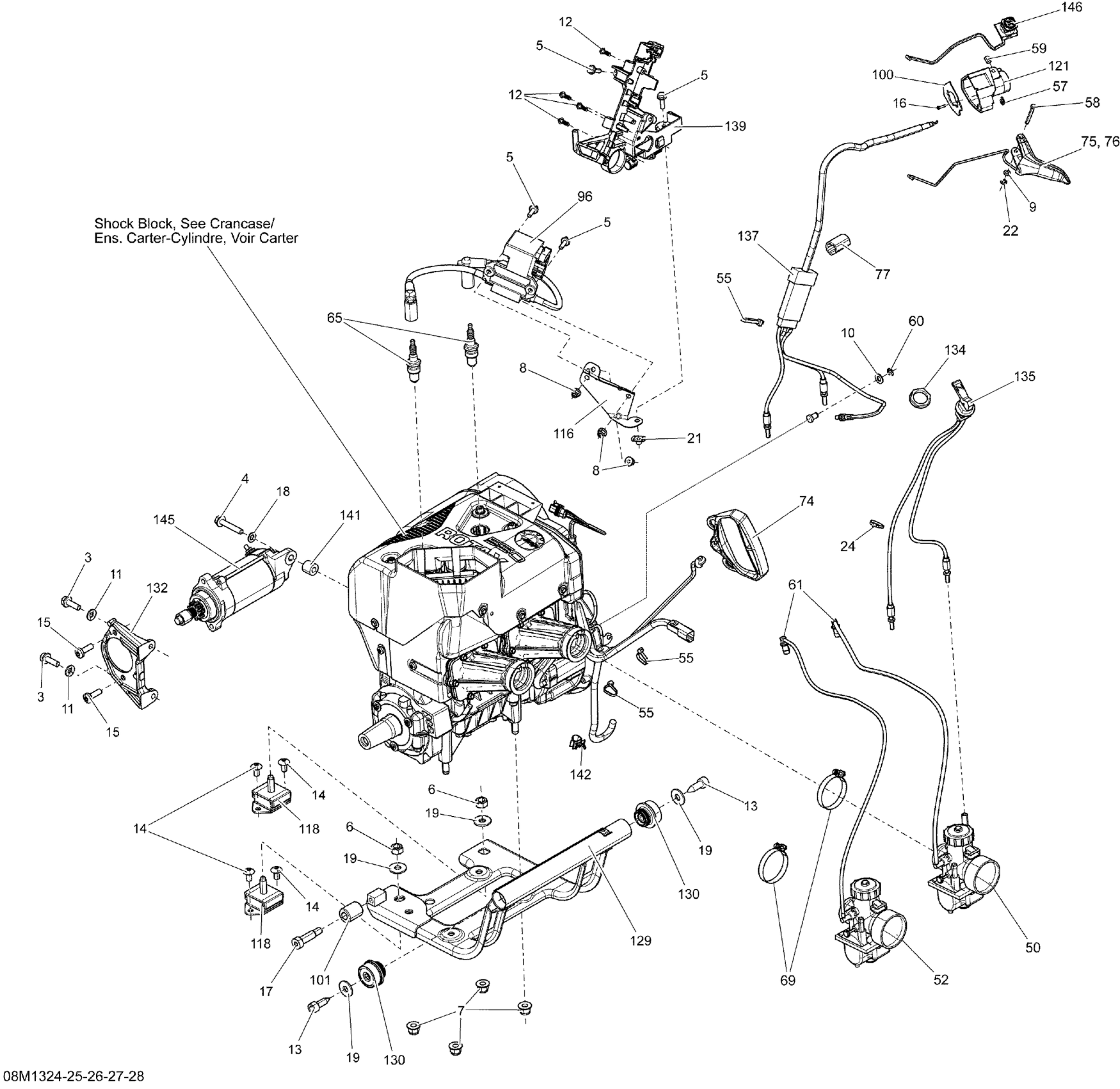

Ski-Doo EXPEDITION SPORT 550F XP, 2013 Engine And Engine Support Diagram

#

Description
Price

3

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

4

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

5

Hex. Flange Screw M6 X 20

207662044

Unavailable

6

Elastic Stop Nut M10

232500416

$1.56

7

Hex. Flange Elastic Nut M10

233201414

$1.26

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

Flat Washer M5, Stainless

234051600

$0.64

10

Flat Washer 8 mm, Nylon

234081100

$1.00

11

Conical Spring Washer M8

250200146

Unavailable

12

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

13

Screw M10 X 30

250000094

$23.05

14

Torx Truss Screw M8 X 16

250000746

$2.78

15

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

16

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

17

Socket Head Screw, Scotch Grip

250000463

$7.31

18

Flat Washer With Teflon 8 mm

250200008

Unavailable

19

Flat Washer M10 | 4X4

250200014

$1.17

21

Nut Welded, M6

293100003

Unavailable

22

Circlip

293370050

$0.46

24

Tie Wrap 142 mm

293750002

Unavailable

50

Carburetor VM30-218, MAG

403138813

$304.58

52

Carburetor VM30-219, PTO

403138814

$299.20

55

Tie-Rap 180 mm

414115200

$0.09

57

Circlip

414274500

Unavailable

58

Lever Pin

414438700

$11.14

59

Socket Set Screw M8 X 10

414440800

$4.00

60

Circlip

414753500

$0.59

61

Male Connector

414814100

$2.18

65

Spark Plug NGK BR9ECS-5

512059552

$9.70

69

Gemi Clamp | Not Shown

512059834

$10.52

74

Starter Grip

512060136

$14.54

75

Handle Ass'y | Includes 3820 to 3820a

512061251

$89.97

76

Male Terminal

515175232

$1.49

77

Protector

512060313

$9.31

96

Calibrated Module

512060324

$579.99

100

Plate

512060390

$9.31

101

Stopper

512060395

$17.66

116

Coils Support

512060460

$18.43

118

Rubber Mount

512060564

$39.97

121

Throttle Housing

512060603

$10.57

129

Engine Support Ass'y | Includes 1000 to 1000a

512060637

$189.99

130

Rubber Mount

512059691

$44.58

132

Support

512060656

Unavailable

134

Plastic Nut

512060671

$0.98

135

Choke Cable

512060674

$46.12

137

Throttle Cable

512060892

$79.97

139

Coils Support

512060924

$9.31

141

Spacer

515176597

$13.58

142

Tie Rap Mount (screwable)

515176795

$5.11

145

Starter

515178473

$319.49

146

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58
