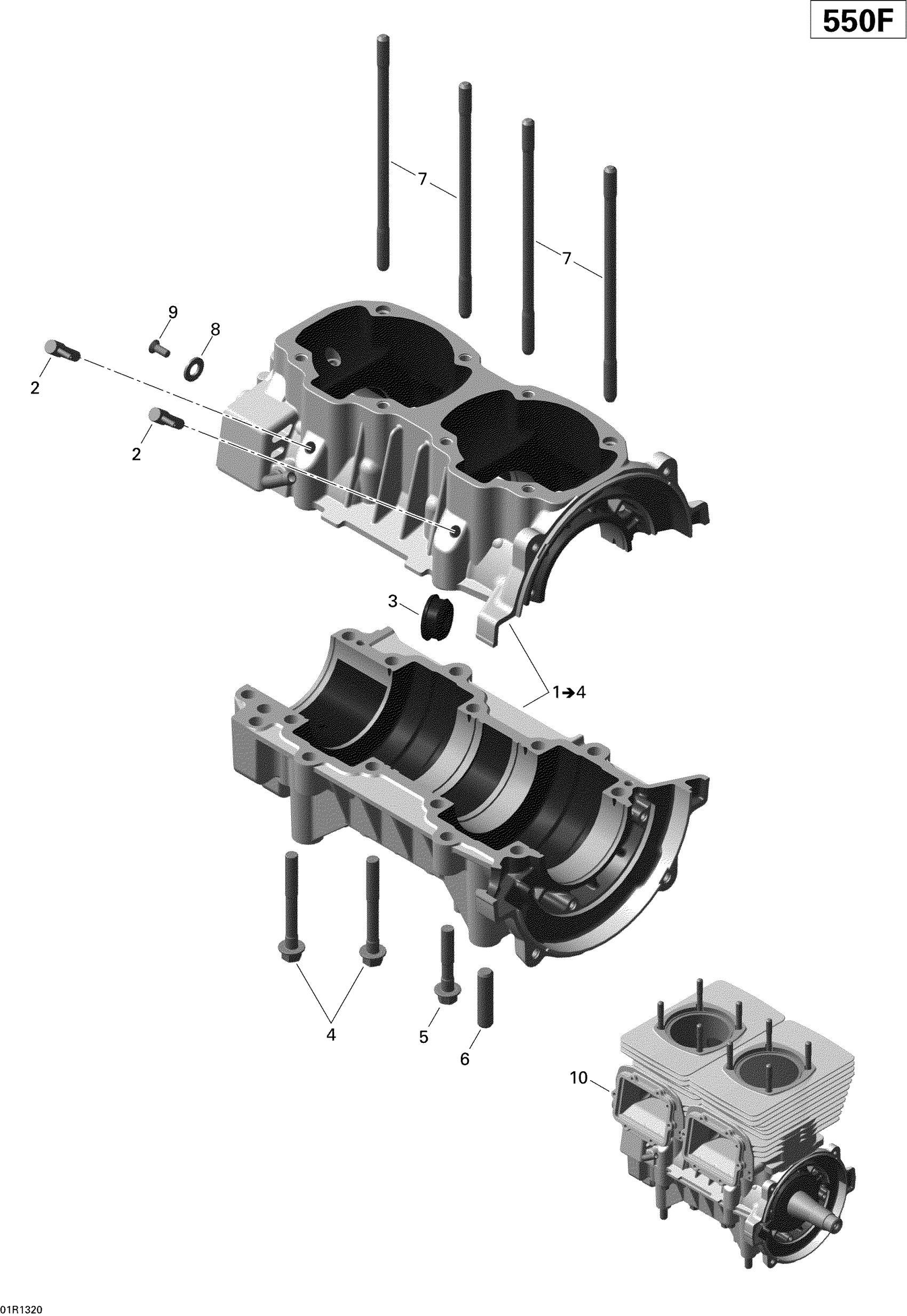

Ski-Doo EXPEDITION SPORT 550F XP, 2013 Crankcase Diagram

#

Description

Price

1

Crankcase Ass'y | Includes 1 to 4

420890237

$769.99

2

Check Valve

420956511

$28.57

3

Cable Grommet

420860962

$11.52

4

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.34

5

Hex. Collar Screw M8 x 45

420640432

$1.94

6

Stud M10 X 45

420840266

$11.52

7

Stud M8 X 173.5

420840556

$15.35

8

Flat Washer 8.4 mm

420250315

$1.09

9

Taptite Flat Head Screw M5 x 12 This part replaces 420640896.

420640897

$2.05

10

Short Block 552 XP

420055208

$1,979.99

10

Short Block 552 XP

420055208

$1,979.99
