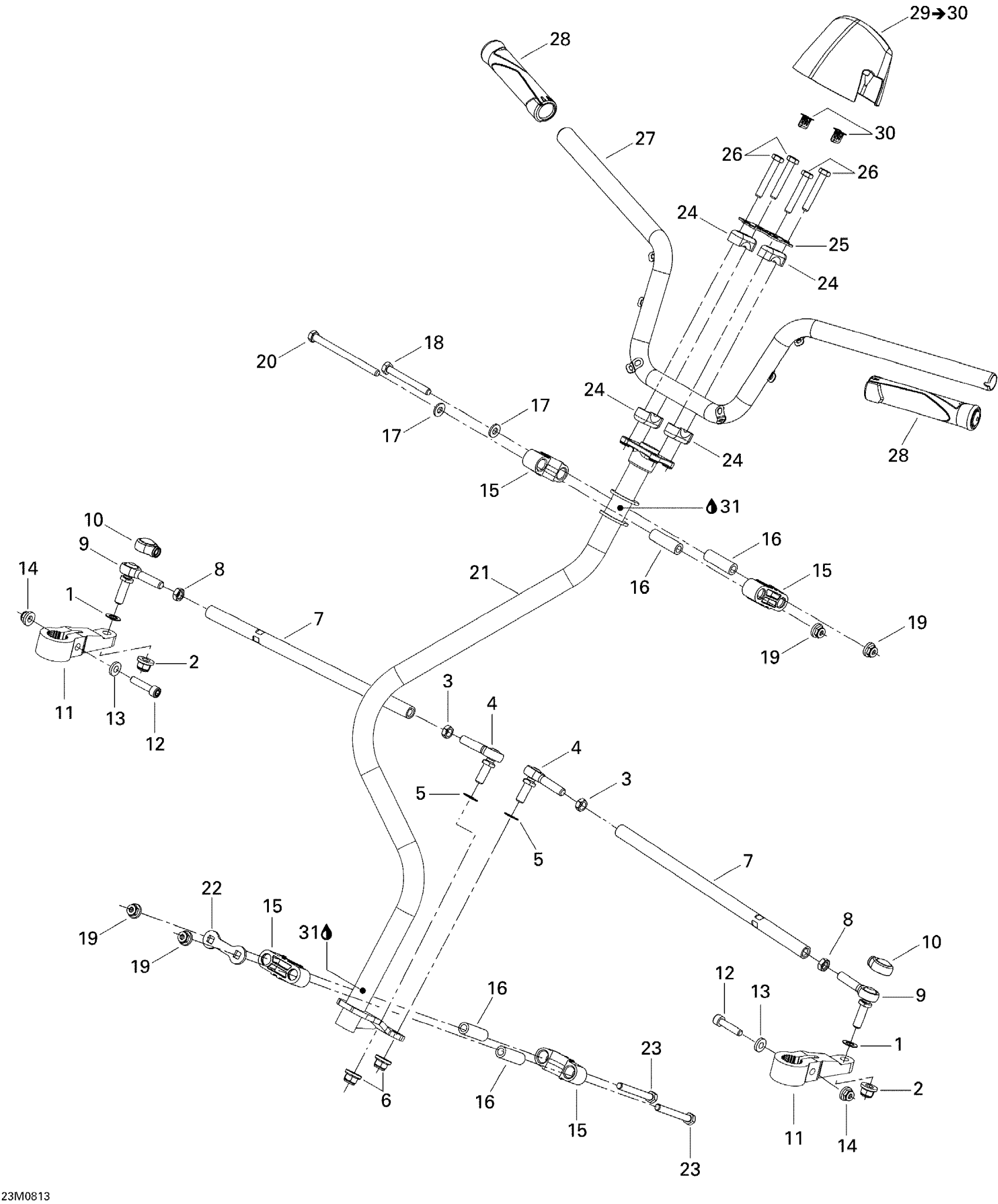

Ski-Doo Expedition Sport 550F, 2008 Steering Diagram
#
Description
Price
2
Hex. Flange Elastic Nut M10
250100165
Unavailable
3
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
4
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
6
Hex. Flange Elastic Nut M10
250100165
Unavailable
7
TIE ROD - Call your local BRP dealership
506151884
Unavailable
8
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
9
BALL JOINT - Call your local BRP dealership
506152212
Unavailable
10
PROTECTION CAP - Call your local BRP dealership
506151650
Unavailable
11
Swivel Arm
506152030
Unavailable
12
Hex. Screw M8 X 45
207084544
Unavailable
13
Flat Washer 8 mm
234081410
Unavailable
14
Hex. Flange Elastic Nut M8
233281414
Unavailable
15
Housing Half
506150400
Unavailable
16
Housing Bushing
506150500
Unavailable
18
Hex. Screw M8 X 70
207087044
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
HEX. SCREW M8 X 110 - Call your local BRP dealership
230081044
Unavailable
21
STEERING MAIN TUBE - Call your local BRP dealership
506152009
Unavailable
22
Stopper Plate
506150600
Unavailable
23
Hex. Screw M8 X 70
207087044
Unavailable
24
Steering Support
709400919
Unavailable
25
REINFORCEMENT - Call your local BRP dealership
506151547
Unavailable
26
HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership
250000082
Unavailable
27
HANDLE BAR - Call your local BRP dealership
506151986
Unavailable
28
Handle Grip
506152238
Unavailable
29
CAP - Call your local BRP dealership | Includes 29 to 30
506151660
Unavailable
30
Edge Clip
517302785
Unavailable
31
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
