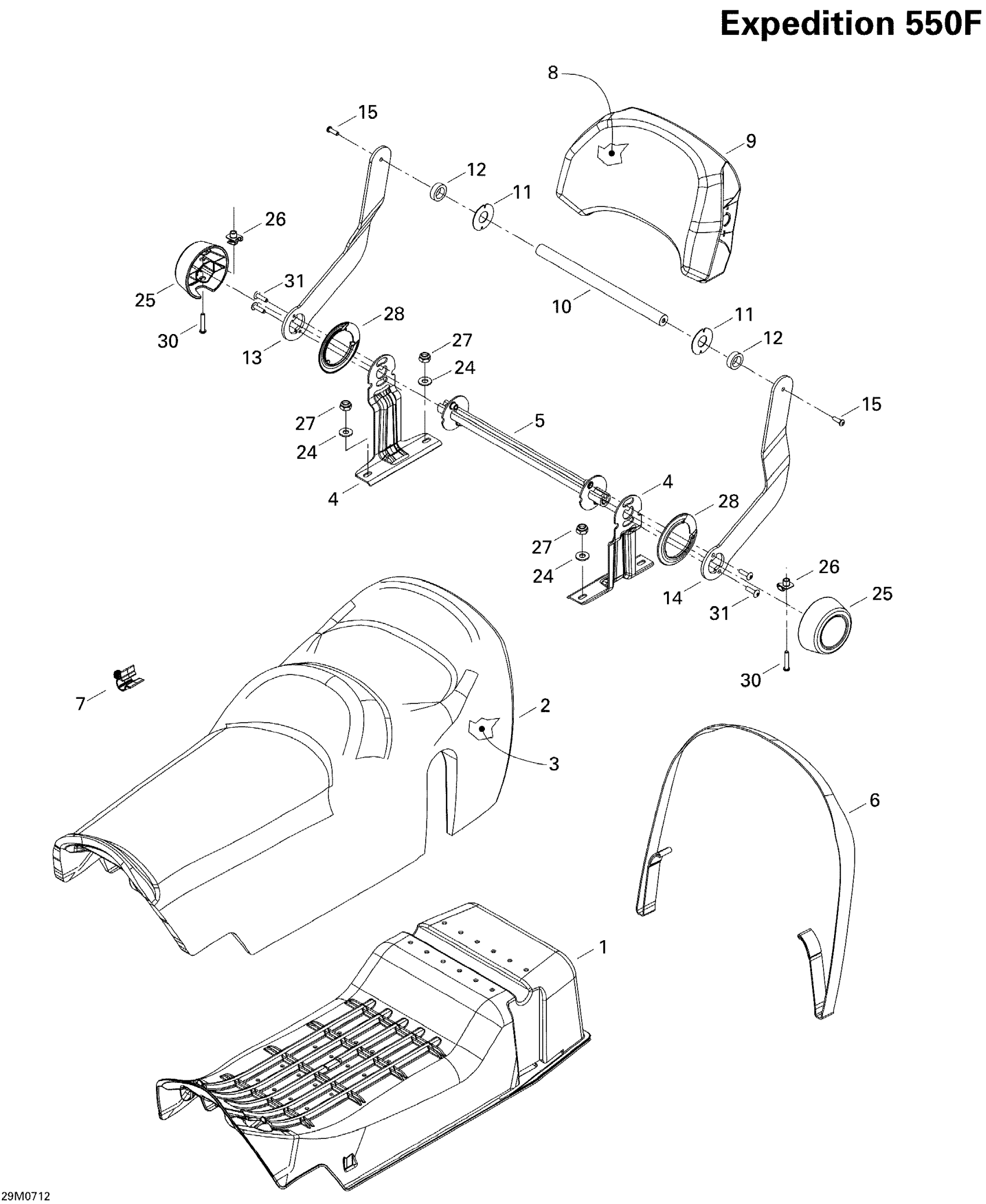

Ski-Doo Expedition Sport 550F, 2007 Seat Diagram

#

Description
Price

1

Seat Base

510004668

Unavailable

2

SEAT COVER - Call your local BRP dealership

510004669

Unavailable

3

Foam

510004670

Unavailable

4

T PLATE - Call your local BRP dealership

510004662

Unavailable

5

CROSS MEMBER - Call your local BRP dealership

510004663

Unavailable

6

COURROIE DE SIEGE - Call your local BRP dealership

510004768

Unavailable

7

Hose Retainer

275500528

Unavailable

8

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

9

BACKRESS COVER - Call your local BRP dealership

510004761

Unavailable

10

Upper Backrest Axle

510004377

Unavailable

11

Washer

510004379

Unavailable

12

Rubber Shim

510004378

Unavailable

13

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

14

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

15

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

$3.82

24

Flat Washer 8 mm

234082410

$1.11

25

CAP - Call your local BRP dealership

510004481

Unavailable

26

J-nut

250100053

Unavailable

27

Hex. Elastic Stop Nut M8

232581414

Unavailable

28

SPACER - Call your local BRP dealership

510004713

Unavailable

30

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

$2.78

31

Hex Torx Truss M8 X30

250000745

Unavailable
