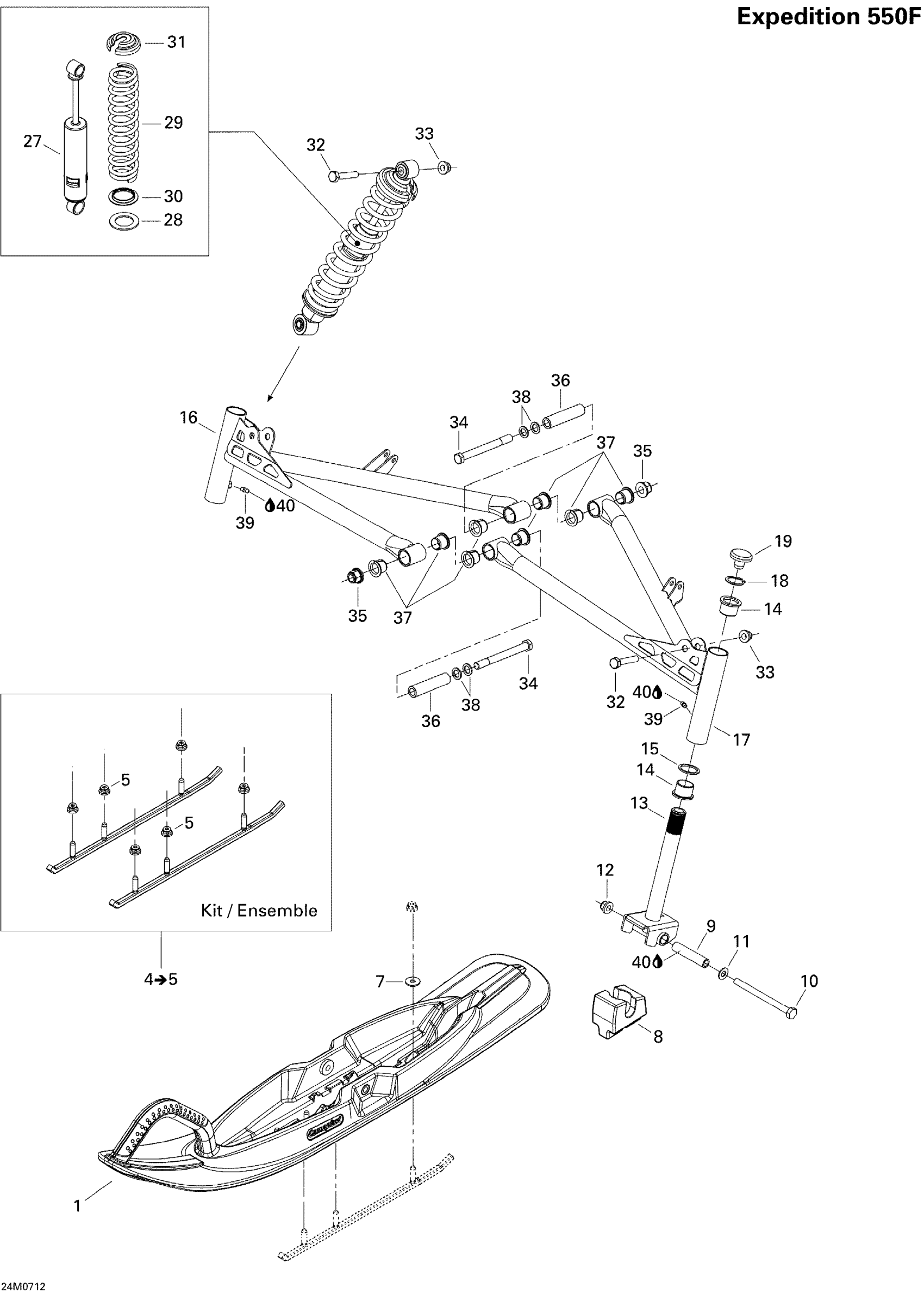

Ski-Doo Expedition Sport 550F, 2007 Front Suspension And Ski Diagram

#

Description
Price

1

Large ''Blow Mold'' Ski With Handle | STD

505072020

Unavailable

4

Carbide Runner Kit | STD, Includes 7 to 9 This part replaces 861805509.

860512100

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

Unavailable

7

Flat Washer 8 mm

234082410

$1.11

8

SKI STOPPER - Call your local BRP dealership

505070978

Unavailable

9

Spacer

506133300

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Stop Nut M10

232500416

$1.56

13

SKI LEG - Call your local BRP dealership

505072001

Unavailable

14

Cushion

505070003

Unavailable

15

WASHER - Call your local BRP dealership

505070004

Unavailable

16

RH LOWER ARM - Call your local BRP dealership

505071739

Unavailable

17

LH LOWER ARM - Call your local BRP dealership

505071740

Unavailable

18

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

19

Cap

572091300

$8.97

27

Front Shock

505071487

Unavailable

28

WASHER - Call your local BRP dealership

503184400

$2.75

29

FULL MOON SPRING - Call your local BRP dealership

505071842

Unavailable

30

SPRING GUIDE - Call your local BRP dealership

505071954

Unavailable

31

Spring Stopper

706200881

$10.30

32

Hex. Screw M10 X 55

207005544

$1.85

33

Hex. Flange Elastic Nut M10

233201414

$1.26

34

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

35

Hex. Flange Elastic Nut M12

233221414

Unavailable

36

BUSHING - Call your local BRP dealership

505071366

Unavailable

37

BUSHING - Call your local BRP dealership

505072094

Unavailable

38

Washer

503189276

Unavailable

39

Grease Fitting

408200700

Unavailable

40

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
